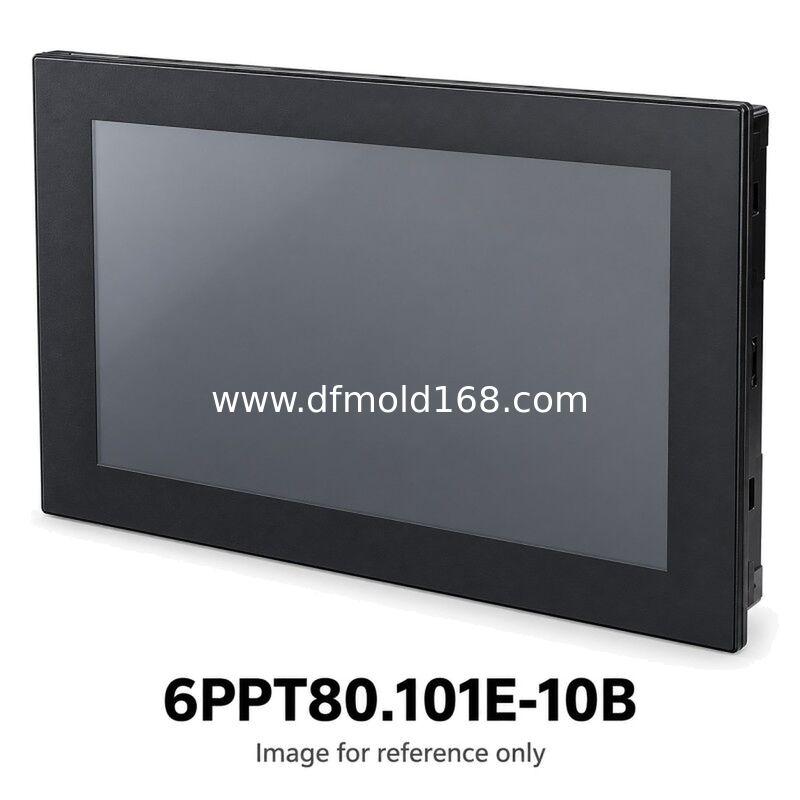

6PPT80.101E-10B 10.1in Glass 1 LAN HMI

6PPT80.101E-10B is a Power Panel T80 embedded visualization terminal. This model offers a 10.1-inch visualization interface with ordinary glass and one Ethernet connection. It is relevant when sourcing a replacement for an existing T80 station whose host project already targets a 1280 x 800 display. Preserve the terminal settings as well as the complete hardware reference during the replacement process.

Key Features and Typical Applications

• 10.1-inch 1280 x 800 display
• capacitive multi-touch

1 x Gigabit Ethernet. Standard-glass T80 replacement is the main selection focus. Typical uses include machine operation, status viewing and alarm acknowledgement when implemented by the connected visualization application.

Supply and Quotation Information

Send us 6PPT80.101E-10B, the required quantity and delivery destination for a current quotation. For a replacement, attach clear label and connector photographs. The offer should confirm the exact reference, condition, included accessories, price validity and delivery terms. Availability and lead time are confirmed for the requested quantity.

Compatibility and Selection Note

Compare the complete model, 1280 x 800 display, mounting dimensions, touch interface, network wiring and terminal software with the installed unit. Back up host connection and terminal settings before replacement. The browser or VNC connection needs a compatible visualization host; a matching screen size alone does not establish interchangeability.

Buying and Replacement FAQ

Q1. How do I get a price for 6PPT80.101E-10B?

Send the complete reference 6PPT80.101E-10B, quantity, destination and required date. For a spare, include the installed label and specify whether an exact match is mandatory.

Q2. What must the quotation include?

Ask for the offered model, condition, accessory scope, price validity and shipping terms. Confirm whether mounting hardware and connectors are included; do not assume a complete machine installation kit.

Q3. Can 6PPT80.101E-10A be treated as identical?

The screen format and family match, but the surface finish differs. The 10A version specifies anti-glare glass. Confirm whether that change is acceptable before approving an alternative.

Q4. Which network details are needed before replacement?

This model specifies 1 x gigabit ethernet. Provide the current IP settings, host address and browser or VNC connection details. Confirm compatibility with the machine visualization before approving the offered unit.

Q5. Does the panel include the machine application?

Do not assume the machine project, host software or licenses are included. Confirm access to the visualization host and a backup of the terminal settings. Quote application work separately if it is required.

Q6. How are availability and delivery confirmed?

Provide quantity and the required arrival date. Obtain a written confirmation of availability, dispatch timing and transport terms for the exact model. A lead time for another product family does not apply automatically.
