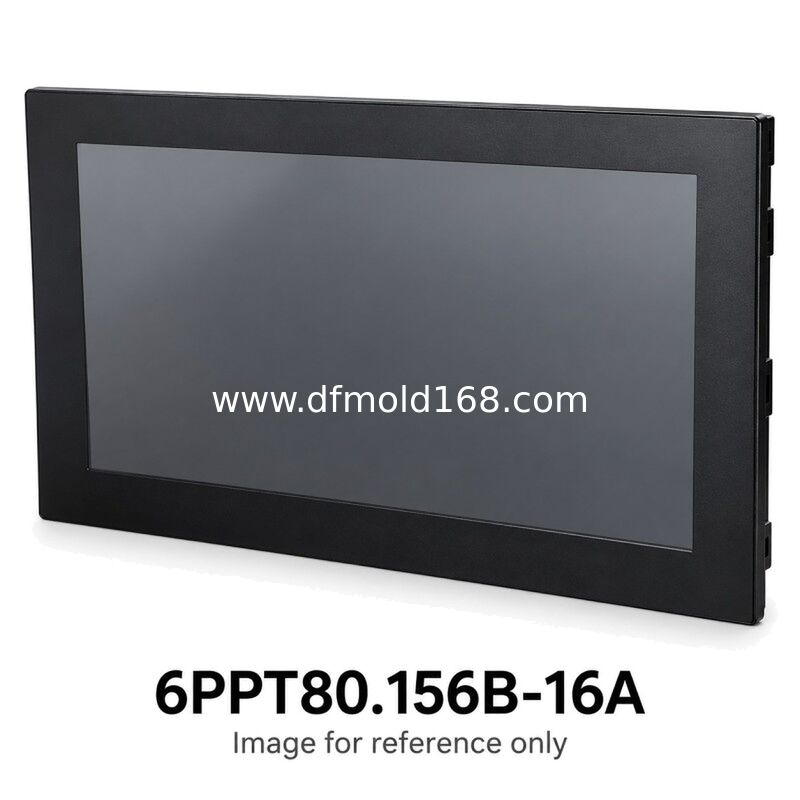

6PPT80.156B-16A 15.6in Anti-Glare Dual LAN HMI

6PPT80.156B-16A is a Power Panel T80 embedded visualization terminal. This large T80 terminal is a candidate for machine overviews where the operator needs a wide screen and reflection control. Its two Ethernet ports with an integrated switch are relevant to cable routing through an operator station. The host visualization must still be reviewed for the terminal software and target resolution.

Key Features and Typical Applications

• 15.6-inch 1366 x 768 display
• capacitive multi-touch
• 2 x Gigabit Ethernet

integrated switch. Large T80 network overview is the main selection focus. Typical uses include machine operation, status viewing and alarm acknowledgement when implemented by the connected visualization application.

Supply and Quotation Information

Send us 6PPT80.156B-16A, the required quantity and delivery destination for a current quotation. For a replacement, attach clear label and connector photographs. The offer should confirm the exact reference, condition, included accessories, price validity and delivery terms. Availability and lead time are confirmed for the requested quantity.

Compatibility and Selection Note

Compare the complete model, 1366 x 768 display, mounting dimensions, touch interface, network wiring and terminal software with the installed unit. Back up host connection and terminal settings before replacement. The browser or VNC connection needs a compatible visualization host; a matching screen size alone does not establish interchangeability.

Buying and Replacement FAQ

Q1. How do I get a price for 6PPT80.156B-16A?

Send the complete reference 6PPT80.156B-16A, quantity, destination and required date. For a spare, include the installed label and specify whether an exact match is mandatory.

Q2. What must the quotation include?

Ask for the offered model, condition, accessory scope, price validity and shipping terms. Confirm whether mounting hardware and connectors are included; do not assume a complete machine installation kit.

Q3. Can I select it solely for its two Ethernet sockets?

No. Confirm the integrated-switch topology, host visualization, software revision, mechanical fit and anti-glare requirement. Port count alone does not establish replacement compatibility.

Q4. Which network details are needed before replacement?

This model specifies 2 x gigabit ethernet; integrated switch. Provide the current IP settings, host address and browser or VNC connection details. Confirm compatibility with the machine visualization before approving the offered unit.

Q5. Does the panel include the machine application?

Do not assume the machine project, host software or licenses are included. Confirm access to the visualization host and a backup of the terminal settings. Quote application work separately if it is required.

Q6. How are availability and delivery confirmed?

Provide quantity and the required arrival date. Obtain a written confirmation of availability, dispatch timing and transport terms for the exact model. A lead time for another product family does not apply automatically.
