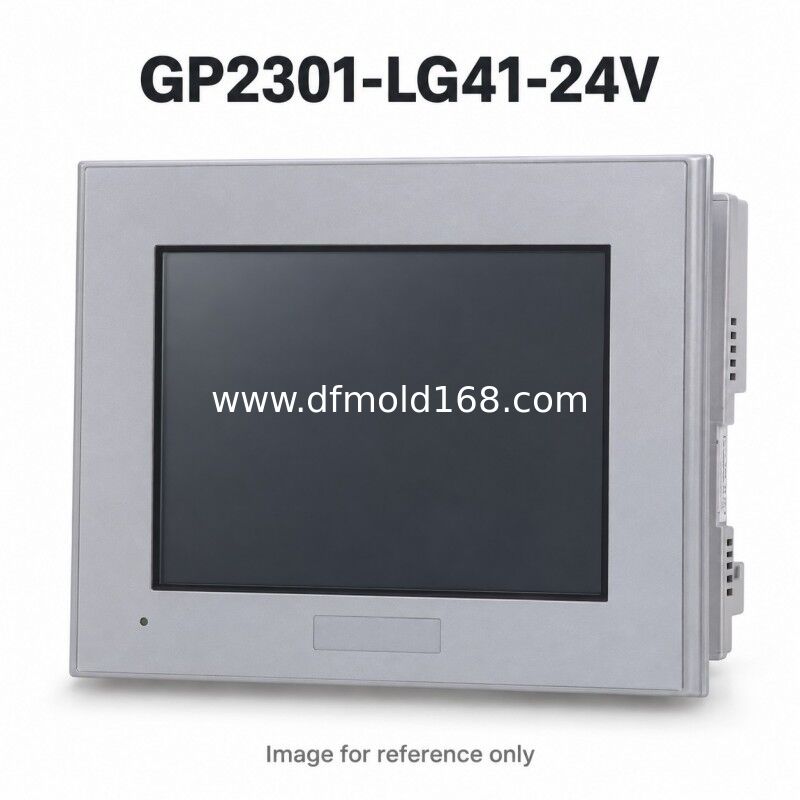

GP2301-LG41-24V 5.7 Inch Mono HMI 320x240 24VDC

Parameters

Product Description

The GP2301-LG41-24V is a 5.7-inch monochrome operator panel with 320 x 240 resolution and 24 V DC input. It provides a main RS-232C/RS-422 serial interface, a tool connector and a CompactFlash slot. Its 1 MB application memory and absence of built-in Ethernet are important configuration checks. When sourcing a spare, match the full model, communication wiring and panel opening. Confirm the hardware revision and original project format before transfer. Send label and connector photos so the offered condition, installed options and included items can be checked against the machine.

Supply and Quotation

Request a quotation for GP2301-LG41-24V with quantity, destination and required arrival date. Send model-label, revision and connector photos when sourcing a spare. We will confirm the offered condition, availability, installed options, included accessories and delivery terms in the quotation. Software licenses, transfer cables, memory cards and machine programs require separate confirmation.

Compatibility

Match the full model, power rating, communication wiring and panel opening. Confirm the original project format, matching legacy engineering software, passwords and transfer method. Conversion to a newer panel is a separate engineering task and requires functional verification.

FAQ

1. Is this a color display?
   No. The LG reference uses a monochrome LCD. An eight-gray-level mode depends on compatible engineering software and project settings. Confirm the required display mode and inspect the offered screen before purchase.
2. How does it differ from GP2300-LG41-24V?
   This reference has 1 MB of application memory and no built-in Ethernet or expansion serial port. GP2300-LG41-24V provides those additional interfaces and a larger application-memory capacity. Match the complete installed model.
3. What installation dimensions should be checked?
   The nominal opening is 156 x 123.5 mm, with +1/-0 mm tolerance on each dimension. External dimensions are 171 x 138 x 60 mm. Use the model-specific drawing to confirm panel thickness, corner radii, gasket, fasteners and cable clearance.
4. How do I request a price for GP2301-LG41-24V?
   Send the full reference, quantity, preferred condition and delivery destination. Include nameplate and revision photos and any deadline. Price and availability are confirmed for the specific offered unit.
5. Will the original machine program be included?
   Confirm access to the project backup, passwords and compatible legacy software before purchase. Hardware supply does not establish that your application is loaded. Agree any transfer, recovery or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching label and connector photos, an accessory list and an agreed inspection scope covering display and touch response. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
