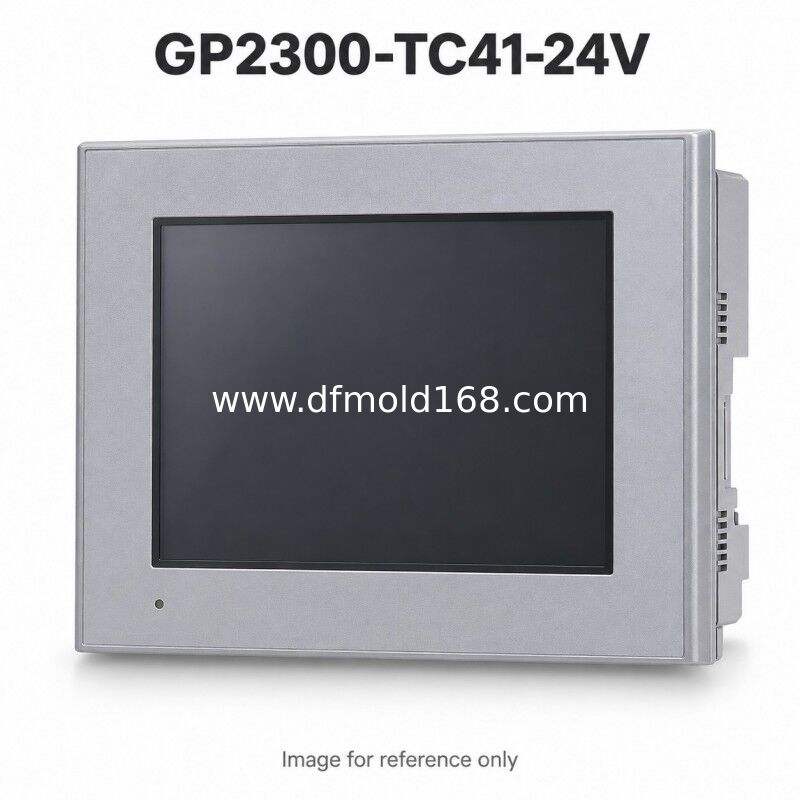

GP2300-TC41-24V 5.7 Inch TFT HMI 320x240 24VDC

Parameters

Product Description

The GP2300-TC41-24V is a 5.7-inch TFT color operator panel with 320 x 240 resolution and 24 V DC input. It includes 10BASE-T Ethernet, a main RS-232C/RS-422 interface, an expansion RS-232C port and a CompactFlash slot. Its application memory is 2 MB, with battery-backed memory for retained data. When sourcing a spare, match the full model, communication wiring and panel opening. Confirm the hardware revision and original project format before transfer. Send label and connector photos so the offered condition, installed options and included items can be checked against the machine.

Supply and Quotation

Request a quotation for GP2300-TC41-24V with quantity, destination and required arrival date. Send model-label, revision and connector photos when sourcing a spare. We will confirm the offered condition, availability, installed options, included accessories and delivery terms in the quotation. Software licenses, transfer cables, memory cards and machine programs require separate confirmation.

Compatibility

Match the full model, power rating, communication wiring and panel opening. Confirm the original project format, matching legacy engineering software, passwords and transfer method. Conversion to a newer panel is a separate engineering task and requires functional verification.

FAQ

1. How does it differ from GP2301-TC41-24V?
   GP2300-TC41-24V adds built-in Ethernet and an expansion RS-232C port and has 2 MB application memory. GP2301-TC41-24V has no built-in Ethernet or expansion serial port and has 1 MB application memory.
2. What Ethernet speed is specified?
   The built-in interface is 10BASE-T, rated at 10 Mbps. Confirm that the network equipment supports this link speed and that the project protocol and network settings match the installation.
3. What installation dimensions should be checked?
   The nominal opening is 156 x 123.5 mm, with +1/-0 mm tolerance on each dimension. External dimensions are 171 x 138 x 60 mm. Use the model-specific drawing to confirm panel thickness, corner radii, gasket, fasteners and cable clearance.
4. How do I request a price for GP2300-TC41-24V?
   Send the full reference, quantity, preferred condition and delivery destination. Include nameplate and revision photos and any deadline. Price and availability are confirmed for the specific offered unit.
5. Will the original machine program be included?
   Confirm access to the project backup, passwords and compatible legacy software before purchase. Hardware supply does not establish that your application is loaded. Agree any transfer, recovery or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching label and connector photos, an accessory list and an agreed inspection scope covering display and touch response. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
