GP2600-TC11 12.1 Inch TFT HMI 800x600 AC Power

Parameters

Product Description

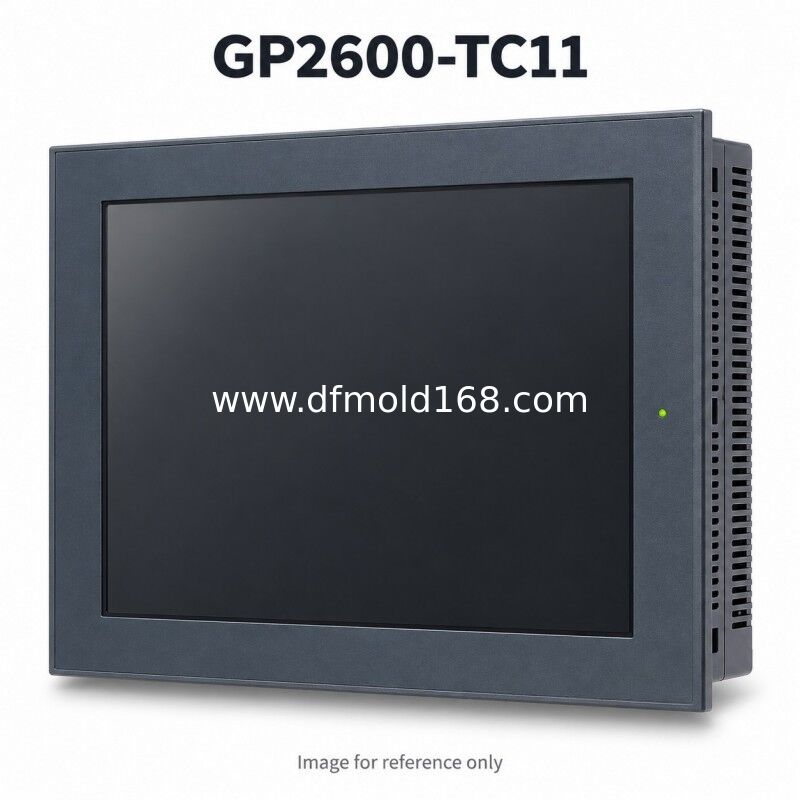

The GP2600-TC11 is an AC-powered 12.1-inch TFT color panel with 800 x 600 resolution. Its AC input rating depends on the revision marking. The unit includes 10BASE-T Ethernet, two serial interfaces and a CompactFlash slot, with 4 MB of application memory and a 40 x 30 touch-key grid. When sourcing a spare, match the full model, communication wiring and panel opening. Confirm the hardware revision and original project format before transfer. Send label and connector photos so the offered condition, installed options and included items can be checked against the machine.

Supply and Quotation

Request a quotation for GP2600-TC11 with quantity, destination and required arrival date. Send model-label, revision and connector photos when sourcing a spare. We will confirm the offered condition, availability, installed options, included accessories and delivery terms in the quotation. Software licenses, transfer cables, memory cards and machine programs require separate confirmation.

Compatibility

Match the full model, power rating, communication wiring and panel opening. Confirm the original project format, matching legacy engineering software, passwords and transfer method. Conversion to a newer panel is a separate engineering task and requires functional verification.

FAQ

1. Does every unit accept 100 to 240 V AC?
   No. Units without the Rev. 3 marking are rated for 100 V AC. Units with Rev. 3 marked are rated for 100 to 240 V AC. Request a readable nameplate and revision photo, then match the offered unit to the cabinet supply.
2. Can its project be treated as a 10.4-inch panel project?
   Confirm the project target first. This model uses 800 x 600 pixels and a 40 x 30 touch-key grid. A 10.4-inch 640 x 480 panel has different screen and touch-grid specifications.
3. What installation dimensions should be checked?
   The nominal opening is 301.5 x 227.5 mm, with +1/-0 mm tolerance on each dimension. External dimensions are 317 x 243 x 58 mm. Use the model-specific drawing to confirm panel thickness, corner radii, gasket, fasteners and cable clearance.
4. How do I request a price for GP2600-TC11?
   Send the full reference, quantity, preferred condition and delivery destination. Include nameplate and revision photos and any deadline. Price and availability are confirmed for the specific offered unit.
5. Will the original machine program be included?
   Confirm access to the project backup, passwords and compatible legacy software before purchase. Hardware supply does not establish that your application is loaded. Agree any transfer, recovery or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching label and connector photos, an accessory list and an agreed inspection scope covering display and touch response. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
