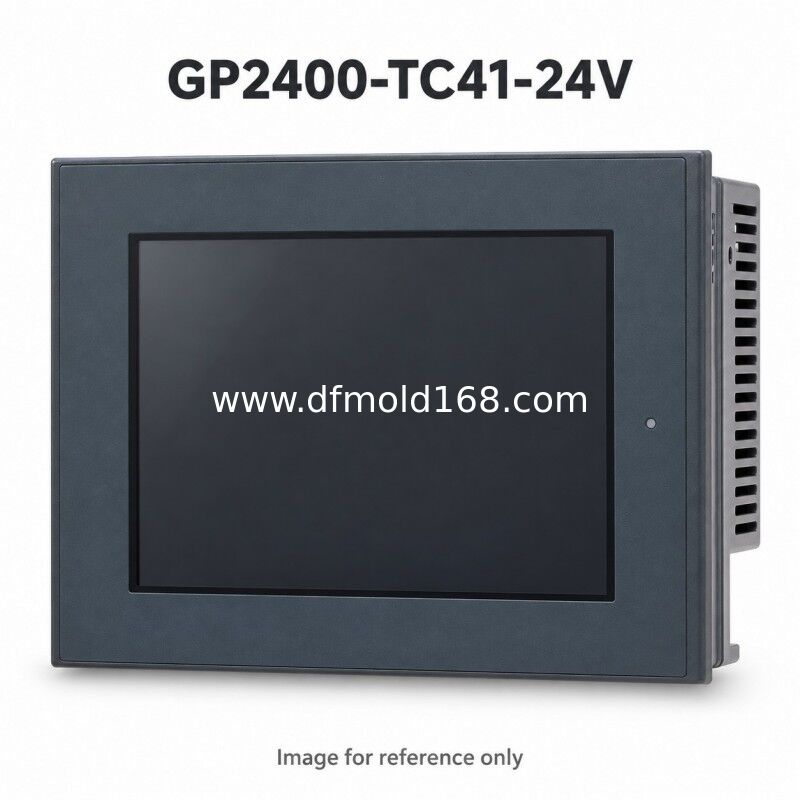

GP2400-TC41-24V 7.4 Inch TFT HMI 640x480 24VDC

Parameters

Product Description

The GP2400-TC41-24V is a 7.4-inch TFT color HMI with 640 x 480 resolution and 24 V DC input. It provides 10BASE-T Ethernet, two serial interfaces and a CompactFlash slot. Its 215 x 170 x 60 mm enclosure and cabinet opening are key checks when matching an installed operator panel. When sourcing a spare, match the full model, communication wiring and panel opening. Confirm the hardware revision and original project format before transfer. Send label and connector photos so the offered condition, installed options and included items can be checked against the machine.

Supply and Quotation

Request a quotation for GP2400-TC41-24V with quantity, destination and required arrival date. Send model-label, revision and connector photos when sourcing a spare. We will confirm the offered condition, availability, installed options, included accessories and delivery terms in the quotation. Software licenses, transfer cables, memory cards and machine programs require separate confirmation.

Compatibility

Match the full model, power rating, communication wiring and panel opening. Confirm the original project format, matching legacy engineering software, passwords and transfer method. Conversion to a newer panel is a separate engineering task and requires functional verification.

FAQ

1. Should the screen be listed as 7.4 or 7.5 inches?
   The official product guide specifies 7.4 inches for this reference. Its display resolution is 640 x 480 pixels. Use the exact model and mounting drawing when comparing panels with similar nominal screen sizes.
2. What is the difference from GP2401-TC41-24V?
   GP2400-TC41-24V includes built-in Ethernet, an expansion RS-232C port and 4 MB application memory. GP2401-TC41-24V lacks those built-in communication interfaces and has 2 MB application memory.
3. What installation dimensions should be checked?
   The nominal opening is 204.5 x 159.5 mm, with +1/-0 mm tolerance on each dimension. External dimensions are 215 x 170 x 60 mm. Use the model-specific drawing to confirm panel thickness, corner radii, gasket, fasteners and cable clearance.
4. How do I request a price for GP2400-TC41-24V?
   Send the full reference, quantity, preferred condition and delivery destination. Include nameplate and revision photos and any deadline. Price and availability are confirmed for the specific offered unit.
5. Will the original machine program be included?
   Confirm access to the project backup, passwords and compatible legacy software before purchase. Hardware supply does not establish that your application is loaded. Agree any transfer, recovery or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching label and connector photos, an accessory list and an agreed inspection scope covering display and touch response. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
