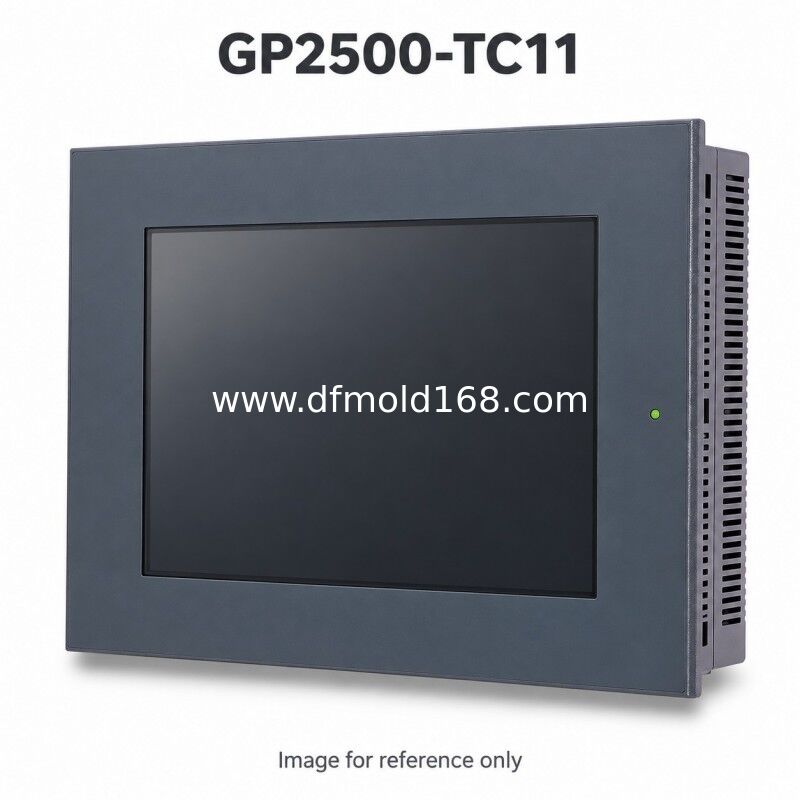

GP2500-TC11 10.4 Inch TFT HMI 640x480 AC Power

Parameters

Product Description

The GP2500-TC11 is an AC-powered 10.4-inch TFT color operator panel with 640 x 480 resolution. The rated AC voltage depends on the revision marking. It includes 10BASE-T Ethernet, two serial interfaces and a CompactFlash slot, with 4 MB of application memory for compatible legacy screen projects. When sourcing a spare, match the full model, communication wiring and panel opening. Confirm the hardware revision and original project format before transfer. Send label and connector photos so the offered condition, installed options and included items can be checked against the machine.

Supply and Quotation

Request a quotation for GP2500-TC11 with quantity, destination and required arrival date. Send model-label, revision and connector photos when sourcing a spare. We will confirm the offered condition, availability, installed options, included accessories and delivery terms in the quotation. Software licenses, transfer cables, memory cards and machine programs require separate confirmation.

Compatibility

Match the full model, power rating, communication wiring and panel opening. Confirm the original project format, matching legacy engineering software, passwords and transfer method. Conversion to a newer panel is a separate engineering task and requires functional verification.

FAQ

1. Does every unit accept 100 to 240 V AC?
   No. Units without the Rev. 3 marking are rated for 100 V AC. Units with Rev. 3 marked are rated for 100 to 240 V AC. Request a readable nameplate and revision photo, then match the offered unit to the cabinet supply.
2. How does it differ from GP2501-TC11?
   GP2500-TC11 includes built-in 10BASE-T Ethernet, an expansion RS-232C port and 4 MB application memory. GP2501-TC11 has no built-in Ethernet or expansion serial port and has 2 MB application memory.
3. What installation dimensions should be checked?
   The nominal opening is 301.5 x 227.5 mm, with +1/-0 mm tolerance on each dimension. External dimensions are 317 x 243 x 58 mm. Use the model-specific drawing to confirm panel thickness, corner radii, gasket, fasteners and cable clearance.
4. How do I request a price for GP2500-TC11?
   Send the full reference, quantity, preferred condition and delivery destination. Include nameplate and revision photos and any deadline. Price and availability are confirmed for the specific offered unit.
5. Will the original machine program be included?
   Confirm access to the project backup, passwords and compatible legacy software before purchase. Hardware supply does not establish that your application is loaded. Agree any transfer, recovery or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching label and connector photos, an accessory list and an agreed inspection scope covering display and touch response. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
