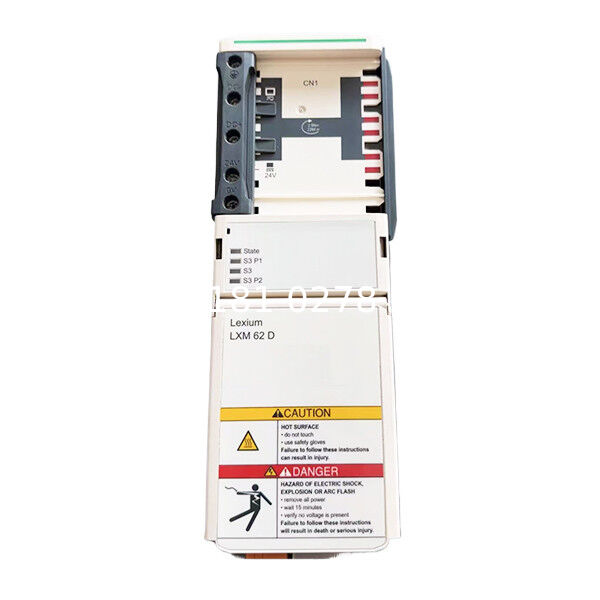

The PacDrive 3 LXM62DC13C21000 is a Lexium 62 single-axis servo drive designed for high-power motion applications within multi-axis automation systems.
With 50 A continuous output current and 130 A peak current capability, this servo drive provides the power capacity required for demanding machine axes that need high acceleration, precise positioning, and synchronized motion control.
The drive operates with a 250 to 700 VDC DC bus supply and uses Sercos III communication for deterministic real-time motion synchronization. It supports compatible Hiperface and SinCos feedback systems for accurate servo motor control.
The LXM62DC13C21000 integrates Safe Torque Off STO functionality and provides digital inputs, touch probe inputs, and digital outputs for machine-level control functions.
This model is designed to work as part of a PacDrive 3 Lexium 62 multi-axis system. It requires compatible power supply components, DC bus connection, servo motor, feedback cable, and controller configuration.
This product is a servo drive module only. It should not be described as a servo motor, PLC controller, frequency inverter, power supply module, or standalone motion controller.
Key Features
High-power single-axis servo drive
50 A continuous current rating
130 A peak current capability
24 kW continuous output power
250–700 VDC DC bus operation
24 VDC control supply
Sercos III real-time motion communication
Hiperface and SinCos feedback support
Integrated STO safety function
Compatible with PacDrive 3 servo motors
Digital I/O signal connection
Touch probe input support
Compact modular drive design
Accessory kit included
Typical Applications
High-speed packaging machines
Robotic automation systems
Large indexing equipment
Material handling systems
Printing and converting machinery
Assembly production lines
Multi-axis servo applications
Industrial motion retrofit projects
Installation Notes
Confirm the original drive model is LXM62DC13C21000 before replacement.
Check the existing DC bus voltage, controller type, Sercos III network configuration, servo motor model, encoder feedback type, and safety wiring before installation.
This unit must be installed together with compatible PacDrive 3 system components. It cannot operate as an independent standalone inverter.
Maintain original motor cable shielding, grounding method, Sercos communication wiring, and parameter backup during replacement.
Verify motor identification, axis configuration, safety settings, and motion parameters before machine restart.
FAQ
Q
What is LXM62DC13C21000 used for
A
It is a Lexium 62 single-axis servo drive for PacDrive 3 multi-axis motion systems
Q
What is the continuous current rating
A
The continuous output current is 50 A at 4 kHz
Q
What is the maximum peak current
A
The peak output current is 130 A
Q
What is the output power rating
A
The continuous output power is 24 kW
Q
What communication protocol does it use
A
It uses Sercos III motion communication
Q
Does it include safety functions
A
Yes it includes Safe Torque Off STO functionality
Q
Is this a servo motor
A
No it is a servo drive module used to control compatible servo motors
