Highlight:
Product Family: |
Lexium 62 Modular Multi-axis Servo System |
Product Type: |
Servo Drive Module |
Axis Configuration: |
Two Compact Servo Axes In One Module |
Continuous Output Current: |
2 X 2 A |
3-Second Peak Output Current: |
2 X 6 A |
Continuous Motor Power Class: |
2 X 0.95 KW |
DC Bus Voltage: |
250 To 700 VDC |
Control Supply: |
24 VDC |
Communication Interface: |
SERCOS III |
Safety Configuration: |
Embedded Safety Double-drive Variant For Safety Over SERCOS Applications |
Switching Frequency: |
8 KHz |
Operating Environment: |
5 To 55 °C, Subject To Installation And Derating Rules |
Hardware Generation: |
Current Lexium 62 Hardware Generation |
System Context: |
PacDrive 3 And Lexium 62 System Architecture |

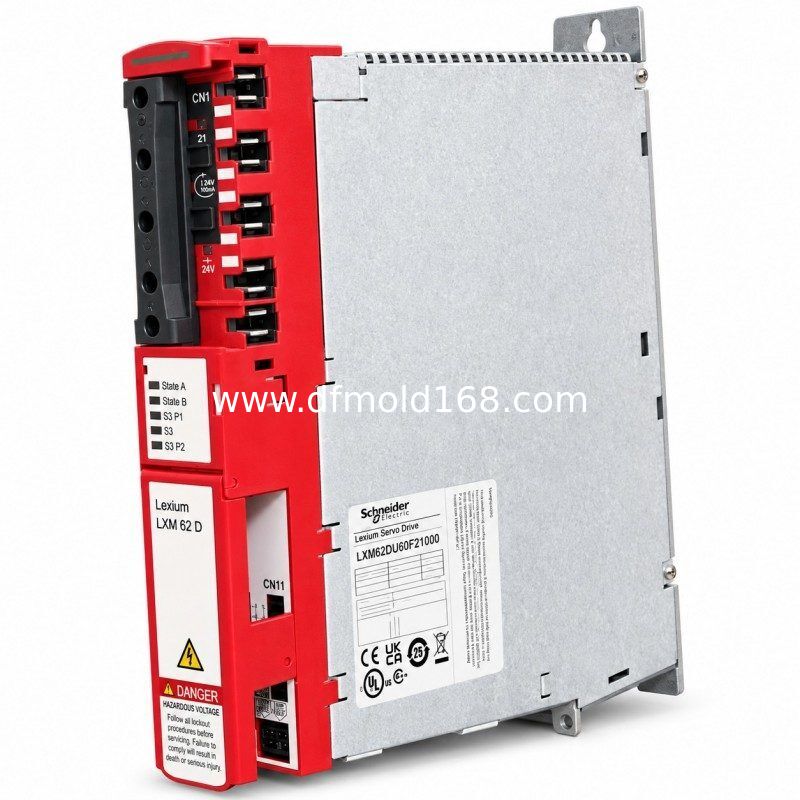

LXM62DU60F21000 Lexium 62 2 x 2A Embedded Safety Double Drive
The LXM62DU60F21000 combines two compact 2 A continuous servo channels with the Lexium 62 embedded-safety double-drive architecture. Each channel provides a 6 A three-second peak and a 0.95 kW continuous motor power class.
This F-suffix module is designed for small coordinated axes in a supported Safety over SERCOS project. It gives machine builders the cabinet density of a dual-axis module while keeping motion, diagnostics, and safety-oriented configuration in the PacDrive 3 environment.
Key Features
· Two 2 A continuous servo channels in one compact module
· 6 A three-second peak current per axis
· 0.95 kW continuous motor power class per channel
· F-suffix embedded-safety double-drive architecture
· SERCOS III motion and diagnostic integration
· Optimized for dense low-current axis groups on a shared DC bus
Typical Applications
· Small guarded handling and product-spacing axes
· Dual labeling, metering, or light indexing mechanisms
· Compact packaging machines with an integrated safety project
· PacDrive 3 systems needing two low-current embedded-safety channels
Compatibility and Selection Note
| Verify both motor channels, feedback and cable interfaces, SERCOS firmware, safety function availability, project configuration, DC bus sizing, and risk assessment. Although the current class matches the DU60D variant, the F and D safety architectures must not be treated as interchangeable. |
LXM62DU60F21000 | FAQ AND SEO
FAQ
1. How many axes are included?
The module contains two independently configured compact servo channels.
2. What is the current rating for each channel?
Each axis is rated 2 A continuous with a 6 A three-second peak class.
3. Why choose the F variant?
Choose it when the approved machine architecture specifically requires the supported embedded-safety double-drive implementation.
4. Is this the same as LXM62DU60D21000?
No. The motion current class is similar, but the F model uses embedded safety while the D model uses the standard hardwired safety interface.
5. Can different small motors be connected to the two channels?
Potentially, but each motor, feedback type, cable, current profile, and safety configuration must be supported and commissioned independently.
6. What must be documented for safety acceptance?
The risk assessment, safety requirements, hardware and firmware versions, project parameters, test results, and final validation must match the installed machine.
