Product Family: |
Lexium 62 Modular Multi-axis Servo System |
Product Type: |
Compact Power Supply Drive Module |
Supply Current Class: |
10 A Nominal |
Peak Current Class: |
20 A Short-duration Output Class |
Nominal Power: |
5.2 KW At 400 VAC Three-phase |
AC Input: |
230 Or 400 VAC Class; Phase Arrangement Depends On Supply Conditions |
DC Bus Output: |
270 To 700 VDC |
Control Supply: |
24 VDC |
Communication Interface: |
SERCOS III |
Architecture: |
Shared DC Bus Supply For Lexium 62 Drive Modules |
Protection Rating: |
IP20 For Cabinet Installation |
Approximate Dimensions: |
89 X 270 X 310 Mm |
Installation: |
Lexium 62 Cabinet System With Required Line Protection |
Selection Basis: |
Combined Continuous Load, Peak Load, And Regenerative Energy |
System Context: |
PacDrive 3 And Lexium 62 Multi-axis Applications |

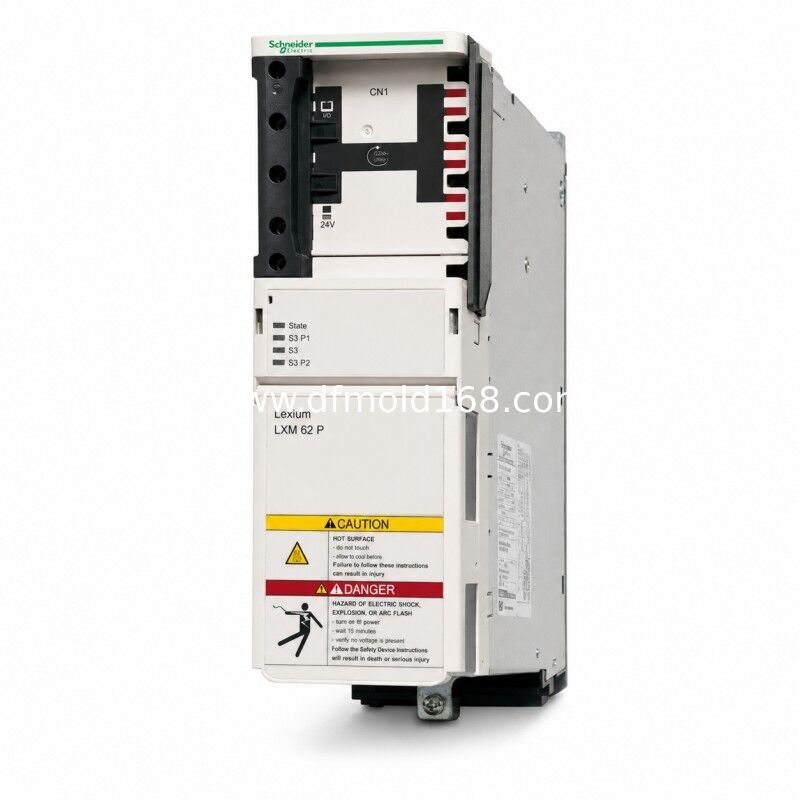

LXM62PD20A11000 Lexium 62 10A to 20A Compact Power Supply
The LXM62PD20A11000 is the compact power supply option for smaller Lexium 62 multi-axis systems. It converts the AC line supply to the common DC bus and supports a 10 A nominal, 20 A short-duration current class.
With 5.2 kW nominal power at 400 VAC three-phase, SERCOS III communication, and the standard Lexium 62 cabinet format, it is well suited to machines where total axis demand is moderate and panel space must be controlled.
Key Features
· 10 A nominal and 20 A short-duration power supply class
· 5.2 kW nominal power at 400 VAC three-phase
· Common DC bus generation for compatible Lexium 62 axes
· SERCOS III interface for system-level diagnostics
· Compact IP20 cabinet module for lower-power machine platforms
· Supports modular expansion when the complete power budget is engineered
Typical Applications
· Compact packaging and labeling machines
· Small assembly cells with several low-current servo axes
· Laboratory, test, and special-purpose motion systems
· PacDrive 3 cabinets with a moderate shared DC bus demand
Compatibility and Selection Note
| Calculate the full machine power balance before choosing the compact supply. Check line voltage and phase arrangement, simultaneous acceleration, regenerative energy, braking requirements, bus capacitance, line protection, cabinet cooling, SERCOS project, and the exact accessory set. |
LXM62PD20A11000 | FAQ AND SEO
FAQ
1. What is the main role of LXM62PD20A11000?
It supplies the shared Lexium 62 DC bus used by compatible servo drive modules in a modular multi-axis system.
2. What does 10 A to 20 A mean?
It identifies the compact supply current class, with 10 A nominal and a higher short-duration current capability under specified conditions.
3. How much nominal power does it provide at 400 VAC?
The nominal power class is 5.2 kW at 400 VAC three-phase.
4. Can it run any number of Lexium 62 axes?
No. The number and size of axes are limited by continuous power, coincident peaks, regenerative energy, duty cycle, and thermal conditions.
5. Does it replace the LXM62PD84A11000?
No direct substitution should be assumed. The PD84 module is a much higher current and power class, with different system sizing implications.
6. What information is needed for selection?
Provide the complete axis list, motor data, motion cycle, mains details, braking energy, cabinet conditions, firmware, and Lexium 62 project topology.
