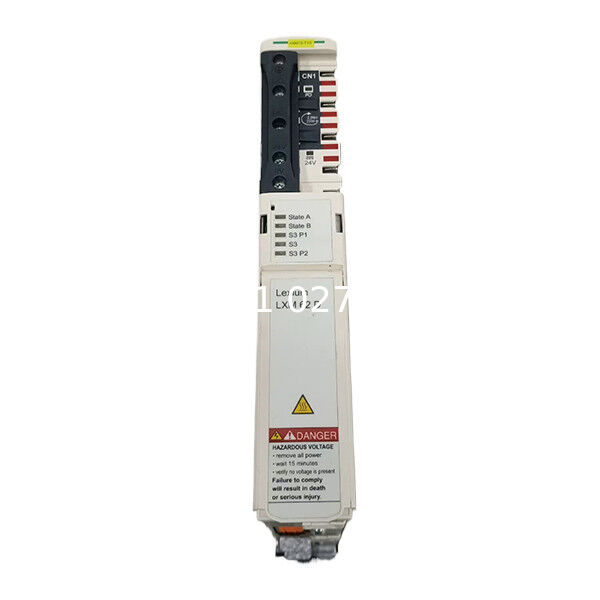

The PacDrive 3 LXM62DD27C21000 is a Lexium 62 single-axis servo drive designed for synchronized motion applications within multi-axis automation systems.

This servo drive provides 9 A continuous output current and 27 A peak current capability, with a continuous power rating of 4.3 kW. It is designed to control compatible servo motors in packaging machines, assembly equipment, and other precision automation systems requiring accurate positioning and dynamic motion control.

The drive operates through a 250 to 700 VDC DC bus architecture and communicates with the motion controller through Sercos III for deterministic real-time synchronization.

The LXM62DD27C21000 supports Hiperface and SinCos feedback systems and includes two digital inputs, two touch probe inputs, and two digital outputs for machine-level signal processing.

Integrated Safe Torque Off STO functionality improves machine safety integration when used with compatible safety circuits.

This product is a single-axis servo drive module only. It should not be described as a servo motor, PLC controller, motion controller, frequency inverter, or power supply module.

Key Features

Single-axis Lexium 62 servo drive

9 A continuous output current

27 A peak output current

4.3 kW continuous power

250–700 VDC DC bus operation

Sercos III motion communication

Hiperface and SinCos feedback support

Integrated STO safety function

24 VDC control supply

Two digital inputs

Two touch probe inputs

Two digital outputs

Compatible with SH3 and MH3 servo motors

Accessory kit included

Compact modular drive design

Typical Applications

Packaging machinery

Cartoning systems

Robotic automation equipment

Assembly machines

Material handling systems

Printing machinery

High-speed indexing equipment

Multi-axis servo platforms

PacDrive 3 retrofit applications

Installation Notes

Confirm the installed model is LXM62DD27C21000 before replacement.

Verify:

DC bus voltage

Servo motor model

Encoder feedback type

Sercos III communication configuration

Safety STO wiring

Motor cable and feedback cable connection

Existing motion parameters

before commissioning.

This drive requires a compatible PacDrive 3 architecture including motion controller, power supply module, DC bus connection, and servo motor.

Do not install this unit as a standalone inverter.

Maintain original grounding, shielding, and cable routing methods to ensure stable servo performance.

FAQ

Q

What is LXM62DD27C21000?

A

It is a PacDrive 3 Lexium 62 single-axis servo drive module.

Q

What is the continuous current rating?

A

The continuous output current is 9A at 4kHz.

Q

What is the peak current rating?

A

The peak output current is 27A for 3 seconds.

Q

What is the output power?

A

The continuous output power is 4.3kW.

Q

What communication protocol is supported?

A

It supports Sercos III real-time motion communication.

Q

Does it include safety functions?

A

Yes, it includes Safe Torque Off STO functionality.

Q

Is this a servo motor?

A

No, it is a servo drive module used to control compatible servo motors.
