Product Family: |
Lexium 62 Modular Multi-axis Servo System |
Product Type: |
DC Link Support Module |
DC Link Voltage: |
Up To 700 VDC |
Capacitance: |
1.76 MF |
Control Supply: |
24 VDC, -20 Percent To +25 Percent |
Primary Function: |
Adds DC Link Energy Storage To A Lexium 62 System |
Communication: |
System Status Integration; Not A Motor Axis Drive |
Status Indication: |
Integrated Status LED |
Standalone Capability: |
Can Be Applied As A Support Module Within An Engineered Topology |
Protection Rating: |
IP20 For Cabinet Installation |
Approximate Dimensions: |
44 X 270 X 310 Mm |
Approximate Weight: |
3.1 Kg |
Installation: |
Adjacent Lexium 62 Cabinet Mounting And Bus Connection |
Selection Basis: |
DC Link Energy, Regenerative Profile, Bus Capacitance, And Topology |
System Context: |
PacDrive 3 And Lexium 62 Shared DC Bus Systems |

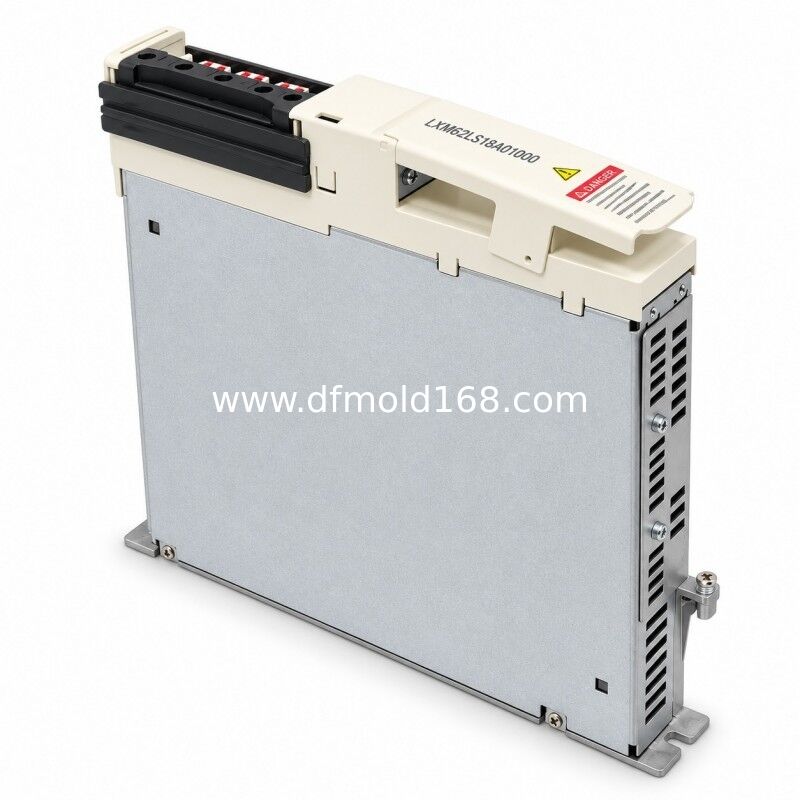

LXM62LS18A01000 Lexium 62 1.76mF DC Link Support Module
The LXM62LS18A01000 is a DC link support module for Lexium 62 systems that need additional bus capacitance. Its 1.76 mF capacity stores energy on the shared DC link and can help stabilize the power architecture during dynamic multi-axis operating cycles.
This is not a servo axis and does not replace the main Lexium 62 power supply. It is an engineered system component used when the machine power calculation calls for additional DC link energy support within the approved bus topology.
Key Features
· 1.76 mF additional DC link capacitance
· Designed for shared buses up to 700 VDC
· 24 VDC control supply with defined tolerance range
· Compact 44 mm cabinet width within the Lexium 62 format
· Integrated status indication for system checks
· Supports engineered energy buffering in dynamic multi-axis systems
Typical Applications
· Machines with repeated synchronized acceleration events
· Systems with calculated DC link stabilization requirements
· Multi-axis layouts that need additional bus energy storage
· PacDrive 3 cabinets optimized through a formal power balance
Compatibility and Selection Note
| Add this module only when supported by a documented DC link calculation and the approved Lexium 62 topology. Verify total capacitance, inrush behavior, bus wiring, discharge time, power supply limits, controller firmware, cabinet spacing, grounding, and all applicable safety procedures. |
LXM62LS18A01000 | FAQ AND SEO
FAQ
1. Does LXM62LS18A01000 power a servo motor?
No. It is a DC link support module and does not contain a motor-axis output stage.
2. What does the 1.76 mF value represent?
It is the module capacitance added to the shared DC link for an engineered system energy balance.
3. Can it replace a Lexium 62 power supply module?
No. A power supply creates the DC bus from the AC input; this support module adds capacitance to an existing engineered bus.
4. When might an additional support module be needed?
It may be considered when the machine power study identifies a need for more DC link energy storage during dynamic motion cycles.
5. Is it safe to add one without changing the project?
No assumption should be made. Added capacitance affects inrush, discharge, fault behavior, wiring, and power supply limits and must be reviewed.
6. What should be verified before installation?
Check the exact model, approved topology, bus voltage, total capacitance, physical position, bus connectors, 24 V supply, firmware, and lockout procedures.
