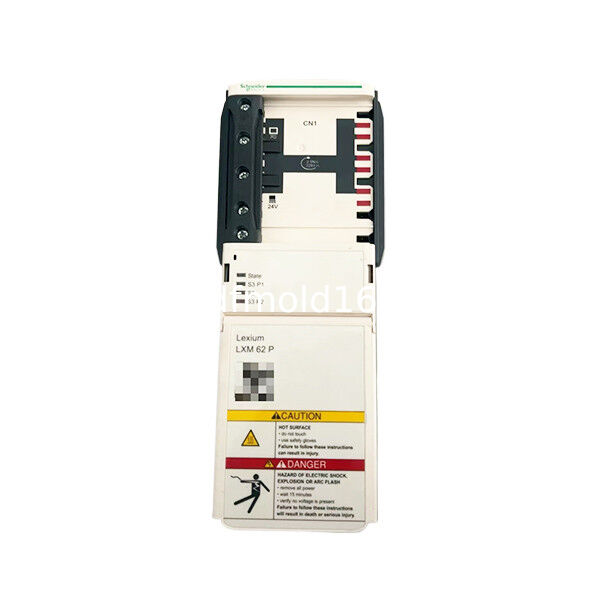

LXM62PD84A11000 42A 22.1kW Servo Power Supply Module

The LXM62PD84A11000 is a high-current servo power supply module designed to provide DC bus power for modular multi-axis motion systems.

With 42 A continuous current and 84 A peak current capability, it is intended for applications with higher total servo load than lower-current power supply modules.

At a 400 V three-phase mains input, the module provides approximately 22.1 kW continuous output power. At 480 V, continuous output power increases to approximately 26.6 kW.

The shared DC bus architecture allows multiple servo drive modules to draw power from one centralized supply, making the unit suitable for machines with several coordinated motion axes.

Key Features

• 42 A continuous current
• 84 A peak current for 1 second
• 22.1 kW continuous power at 400 V
• 26.6 kW continuous power at 480 V
• 380–480 V three-phase AC input
• Shared DC bus power architecture
• Supports multi-axis servo systems
• Up to three identical supply modules can be paralleled

Typical Applications

• Packaging machinery
• Robotics systems
• Multi-axis production equipment
• Material handling machines
• Automated assembly systems

High-Current Power Supply Capability

The main advantage of the LXM62PD84A11000 is its 42 A continuous and 84 A short-term peak current capacity.

This makes it suitable for systems with:

• Multiple servo axes
• Higher combined motor loads
• Frequent acceleration cycles
• High regenerative energy exchange

Shared DC Bus Design

The module supplies a common DC bus for compatible servo inverter modules.

This architecture helps:

• Centralize power conversion
• Reduce duplicate power components
• Support coordinated multi-axis operation
• Simplify cabinet power distribution

Parallel Power Expansion

Up to three LXM62PD84A11000 modules can be connected in parallel when greater DC bus capacity is required.

Typical continuous output at 400 V:

• 1 module: 22.1 kW
• 2 modules: 38.9 kW
• 3 modules: 58.4 kW

Parallel installation must follow the required mains choke, contactor and DC bus design rules.

Model Difference

LXM62PD84A11000

42 A continuous current

84 A peak current

22.1 kW at 400 V

Supports parallel operation

Lower-current power supply versions

Lower DC bus current capacity

Lower total multi-axis power

More suitable for smaller machines

Installation Notes

• Confirm three-phase mains voltage
• Verify total DC bus current demand
• Use the specified mains choke
• Follow DC bus wiring requirements
• Confirm cabinet cooling requirements
• Follow parallel connection rules when using multiple modules

FAQ

Q1: What type of device is LXM62PD84A11000?

A1: It is a servo power supply module for modular multi-axis drive systems.

Q2: What is the continuous current rating?

A2: The continuous current rating is 42 A.

Q3: What is the peak current?

A3: It can provide up to 84 A for 1 second.

Q4: What is the output power at 400 V?

A4: Continuous output power is approximately 22.1 kW.

Q5: Can multiple modules operate in parallel?

A5: Yes. Up to three identical LXM62PD84A11000 modules can be connected in parallel when installed according to the specified system requirements.
