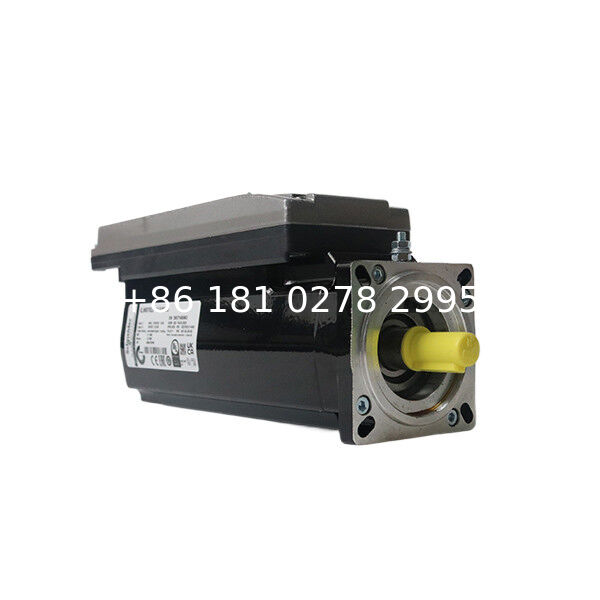

Schneider ILM0701P12A0000 Lexium 62 ILM Integrated Servo Motor 1.1Nm 6000rpm

The Schneider ILM0701P12A0000 is a Lexium 62 ILM integrated servo motor designed for compact and distributed motion control systems. It combines servo motor technology with integrated drive functionality, helping reduce cabinet wiring and simplify machine axis design in PacDrive 3 automation platforms.

This model provides 1.1Nm nominal torque and a rated speed of 6000rpm, making it suitable for high-speed positioning axes, light-load rotary motion, indexing mechanisms, packaging machines, conveyor systems, handling units, assembly equipment, and automated production lines. The keyed shaft design improves mechanical torque transmission and is useful when the motor is connected to couplings, gearboxes, indexing devices, or other mechanical transmission parts.

The ILM0701P12A0000 uses multiturn absolute feedback, allowing the control system to track motor position across multiple revolutions. This is helpful for applications where the machine needs reliable position recovery after power cycling or where repeatable axis position is important. This version is supplied without a holding brake, so users should check whether an external brake or another holding solution is required for vertical axes, suspended loads, or safety-related stopping conditions.

Lexium 62 ILM motors are often used in modular machines where distributed servo technology can reduce wiring complexity and improve cabinet layout. In replacement projects, the complete model number should be checked carefully because similar Lexium 62 ILM motors may differ by shaft type, encoder type, brake option, motor stack, connector configuration, and system compatibility.

This product is suitable for maintenance teams, machine builders, and automation repair projects that need a compatible replacement for an existing ILM0701P12A0000 motor. Before ordering, please confirm the full model number on the motor nameplate, machine controller type, cable connection, brake requirement, encoder configuration, and installation position. Clear photos of the old motor label and machine wiring can help reduce replacement risk.

We can also help check related Lexium 62 ILM motors, Lexium 62 servo drives, PacDrive 3 system components, motor cables, communication cables, power supplies, and automation spare parts according to your machine requirement.

Key Features:

Lexium 62 ILM integrated servo motor
Complete model number: ILM0701P12A0000
1.1Nm nominal torque
6000rpm rated speed
Keyed shaft for mechanical torque transmission
Absolute multiturn feedback
Without holding brake
Designed for PacDrive 3 motion control systems
Suitable for compact machine axes and distributed servo systems
Useful for repair, replacement, and spare parts inventory

Typical Applications:

Packaging machinery
Rotary indexing systems
Conveyor and feeder axes
Material handling equipment
Assembly automation
Printing and labeling machines
Food and beverage machinery
Light-load positioning axes
Modular machine automation
Lexium 62 ILM replacement projects

Replacement Notes:

Please confirm the complete model number before ordering. ILM0701P12A0000 should not be replaced only by visual appearance, because other Lexium 62 ILM motors may look similar but have different brake options, shaft designs, encoder versions, or motor stack configurations. For correct replacement, please check the nameplate, cable connection, machine program requirement, and axis function.

FAQ:

Q1: What is ILM0701P12A0000?
A1: ILM0701P12A0000 is a Schneider Lexium 62 ILM integrated servo motor used in PacDrive 3 motion control systems. It is designed for compact servo axes and distributed machine automation.

Q2: What are the main specifications of ILM0701P12A0000?
A2: The main specifications include 1.1Nm nominal torque, 6000rpm rated speed, keyed shaft, absolute multiturn feedback, single motor stack, and no holding brake.

Q3: Does ILM0701P12A0000 have a holding brake?
A3: No. This version is without a holding brake. If the motor is used on a vertical axis or a load that may move after power loss, the brake requirement should be checked before replacement.

Q4: What is the difference between ILM0701P12A0000 and ILM0701P12F0000?
A4: ILM0701P12A0000 is normally listed as the version without a holding brake, while ILM0701P12F0000 is the related version with a brake. The full model code should always be confirmed from the motor label.

Q5: Can this motor be used to replace another Lexium 62 ILM motor?
A5: It can replace the same model when the shaft, encoder, brake option, connector configuration, and system setup match. Similar-looking ILM motors may not be interchangeable, so the full model number must be checked.

Q6: What applications commonly use this motor?
A6: It is commonly used in packaging machinery, indexing systems, conveyors, feeder axes, material handling equipment, assembly machines, and modular automation systems.

Q7: What information should I provide before ordering?
A7: Please provide the full motor model number, nameplate photo, machine model, cable connection photo, old motor condition, and quantity required. This helps confirm compatibility and avoid wrong replacement.
