6PPT30.101G-20W Power Panel T30 10.1 Inch White HMI

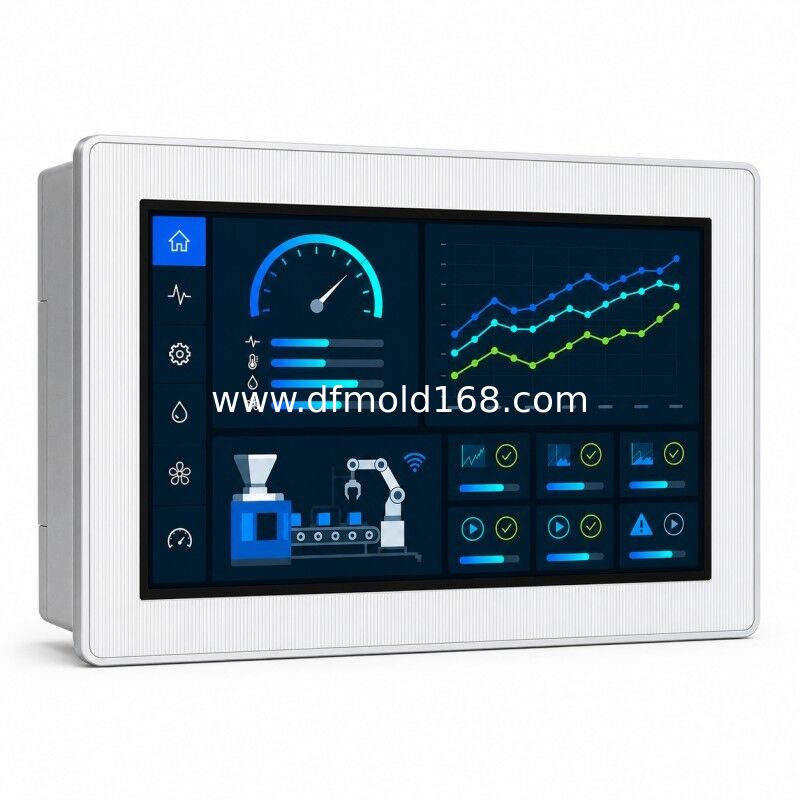

The B&R 6PPT30.101G-20W is a 10.1-inch Power Panel T30 operator terminal with a landscape WSVGA 1024 x 600 pixels display and analog resistive touch input. It combines a 600 MHz ARM Cortex-A8 processor, 256 MB DRAM and 512 MB onboard flash with two Fast Ethernet ports and two USB 2.0 interfaces.

This model expands the T30 viewing area to 10.1 inches while retaining the terminal-only architecture. The W front suits machines designed around the aluminum white pinstripe appearance, and the landscape layout accommodates alarms, trends and process overviews.

Key Features

· 10.1-inch WSVGA 1024 x 600 pixels TFT color display

· Landscape panel format for wide process views and detailed dashboards

· Analog resistive touch screen suitable for gloved operation

· Dual 10/100 Mbit/s Ethernet ports with integrated switch

· Integrated VNC client, web browser and service page

· IP65 front protection and wide -20 to 60°C operating range

Typical Applications

· Wide machine visualization screens

· Process overview terminals

· White-front production equipment

· Remote VNC operator stations

· Browser-based HMI dashboards

Compatibility Note

This T30 model is an HMI terminal, not a standalone PLC. Confirm the exact order number, panel cutout, screen orientation, hardware revision and installed image before replacement.

FAQ

Q: Is this Power Panel a standalone PLC?

A: No. It is a terminal-design HMI used as a VNC or web client. Machine control must be provided by a compatible controller.

Q: What touch technology does it use?

A: It uses an analog resistive touch screen, which is suitable for industrial operation and can generally be used with gloves or a stylus.

Q: How many Ethernet ports are available?

A: Two 10/100 Mbit/s Ethernet ports are provided through an integrated switch for convenient line wiring.

Q: Does it support both VNC and web visualization?

A: Yes. The terminal includes a VNC client, an embedded web browser and an integrated service page.

Q: Is this the landscape or portrait 10.1-inch model?

A: It is the landscape 1024 x 600 model. The 6PPT30.101N-20W uses a portrait 600 x 1024 display and different panel dimensions.

Q: Can a similar T30 model be used as a direct replacement?

A: Not automatically. Match the full model number, screen format, cutout dimensions, front design, hardware revision and software image before replacement.
