6PPT30.101N-20W Power Panel T30 10.1 Inch Portrait HMI

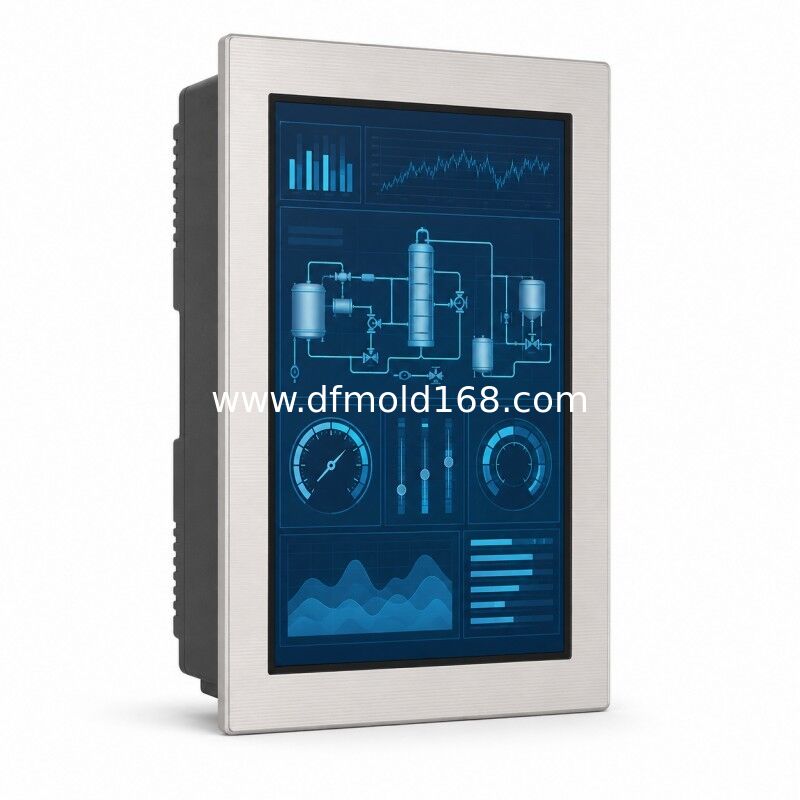

The B&R 6PPT30.101N-20W is a 10.1-inch Power Panel T30 operator terminal with a portrait WSVGA 600 x 1024 pixels display and analog resistive touch input. It combines a 600 MHz ARM Cortex-A8 processor, 256 MB DRAM and 512 MB onboard flash with two Fast Ethernet ports and two USB 2.0 interfaces.

The N display code identifies the portrait 600 x 1024 layout. Its tall 172 x 276 mm front dimensions differ from the landscape 6PPT30.101G models, making orientation and cutout checks essential during replacement.

Key Features

· 10.1-inch WSVGA 600 x 1024 pixels TFT color display

· Portrait panel format for tall status screens and vertically arranged controls

· Analog resistive touch screen suitable for gloved operation

· Dual 10/100 Mbit/s Ethernet ports with integrated switch

· Integrated VNC client, web browser and service page

· IP65 front protection and wide -20 to 60°C operating range

Typical Applications

· Vertical machine status displays

· Tall control cabinet doors

· Recipe and step-list interfaces

· Portrait web visualization

· VNC operator terminals

Compatibility Note

This T30 model is an HMI terminal, not a standalone PLC. Confirm the exact order number, panel cutout, screen orientation, hardware revision and installed image before replacement.

FAQ

Q: Is this Power Panel a standalone PLC?

A: No. It is a terminal-design HMI used as a VNC or web client. Machine control must be provided by a compatible controller.

Q: What touch technology does it use?

A: It uses an analog resistive touch screen, which is suitable for industrial operation and can generally be used with gloves or a stylus.

Q: How many Ethernet ports are available?

A: Two 10/100 Mbit/s Ethernet ports are provided through an integrated switch for convenient line wiring.

Q: Does it support both VNC and web visualization?

A: Yes. The terminal includes a VNC client, an embedded web browser and an integrated service page.

Q: Can the portrait display simply be rotated to replace a landscape G model?

A: No direct substitution should be assumed. The native pixel layout and physical front dimensions are different, so the cutout and visualization project must be engineered for the N version.

Q: Can a similar T30 model be used as a direct replacement?

A: Not automatically. Match the full model number, screen format, cutout dimensions, front design, hardware revision and software image before replacement.
