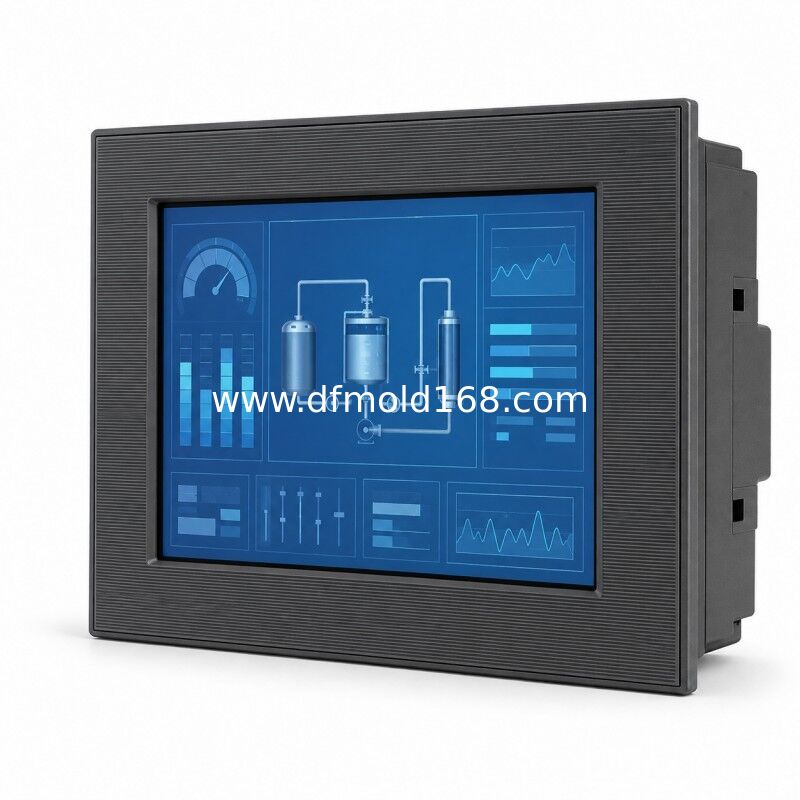

6PPT30.0573-20B Power Panel T30 5.7 Inch VGA HMI Terminal

The B&R 6PPT30.0573-20B is a 5.7-inch Power Panel T30 operator terminal with a landscape VGA 640 x 480 pixels display and analog resistive touch input. It combines a 600 MHz ARM Cortex-A8 processor, 256 MB DRAM and 512 MB onboard flash with two Fast Ethernet ports and two USB 2.0 interfaces.

The 5.7-inch 640 x 480 format is compact and retains a traditional 4:3-style VGA workspace. It is smaller than the seven-inch WVGA T30 while preserving dual Ethernet, dual USB and the same terminal-only client concept.

Key Features

· 5.7-inch VGA 640 x 480 pixels TFT color display

· Landscape panel format for compact legacy-style VGA visualization

· Analog resistive touch screen suitable for gloved operation

· Dual 10/100 Mbit/s Ethernet ports with integrated switch

· Integrated VNC client, web browser and service page

· IP65 front protection and wide -20 to 60°C operating range

Typical Applications

· Compact machine control panels

· Legacy VGA HMI replacements

· VNC client terminals

· Web-based service stations

· Space-limited cabinet installations

Compatibility Note

This T30 model is an HMI terminal, not a standalone PLC. Confirm the exact order number, panel cutout, screen orientation, hardware revision and installed image before replacement.

FAQ

Q: Is this Power Panel a standalone PLC?

A: No. It is a terminal-design HMI used as a VNC or web client. Machine control must be provided by a compatible controller.

Q: What touch technology does it use?

A: It uses an analog resistive touch screen, which is suitable for industrial operation and can generally be used with gloves or a stylus.

Q: How many Ethernet ports are available?

A: Two 10/100 Mbit/s Ethernet ports are provided through an integrated switch for convenient line wiring.

Q: Does it support both VNC and web visualization?

A: Yes. The terminal includes a VNC client, an embedded web browser and an integrated service page.

Q: Is its 640 x 480 screen interchangeable with a seven-inch WVGA T30?

A: No. The pixel format, display size and panel cutout differ. The visualization project and mechanical installation must be checked before substitution.

Q: Can a similar T30 model be used as a direct replacement?

A: Not automatically. Match the full model number, screen format, cutout dimensions, front design, hardware revision and software image before replacement.
