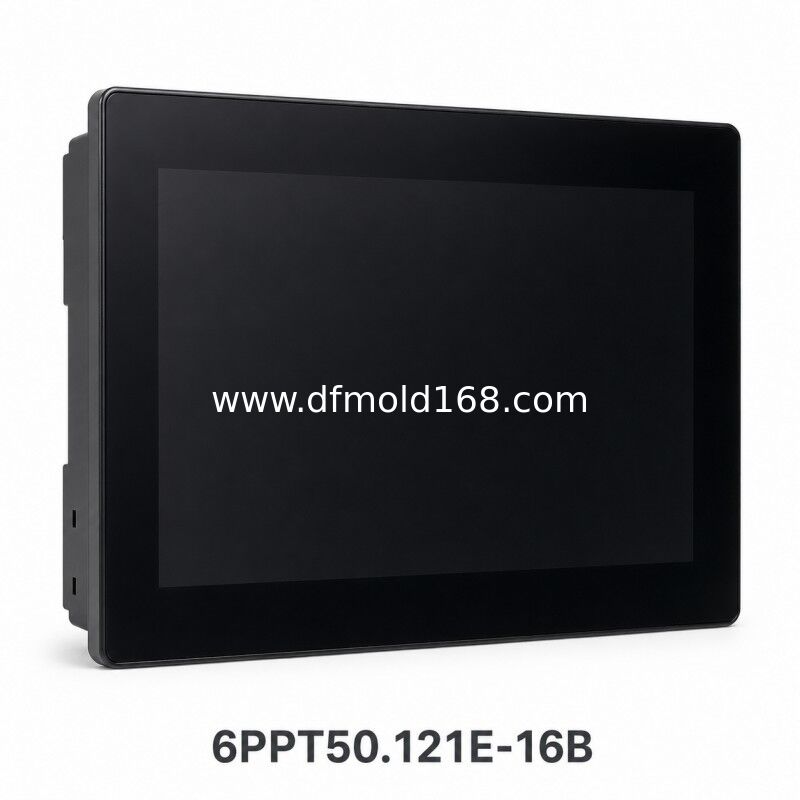

6PPT50.121E-16B Power Panel T50 12.1 Inch Dual Ethernet HMI

The B&R 6PPT50.121E-16B is a 12.1-inch Power Panel T50 HMI terminal based on an 800 MHz dual-core ARM Cortex-A9 platform with 1 GB DRAM and 512 MB onboard flash. Its WXGA 1280 x 800 pixels projected-capacitive display supports multi-touch operation through chemically hardened 6h standard glass with black frame.

This model combines the largest T50 display in this batch with dual switched Ethernet and standard glass. It gives operators a larger physical viewing surface than the 10.1-inch -16B while using the same 1280 x 800 pixel resolution.

Key Features

· 12.1-inch WXGA 1280 x 800 pixels multi-touch display

· Chemically hardened 6H standard glass front

· Dual-core 800 MHz ARM Cortex-A9 processor

· Dual Gigabit Ethernet ports with integrated switch

· Two USB 2.0 ports with 0.5 A capacity each

· VNC client, embedded browser and mapp View support

Typical Applications

· Central machine operator consoles

· Large process overview screens

· Ethernet line-topology systems

· Trend and alarm visualization

· Multi-touch production dashboards

Compatibility Note

This T50 model is a visualization terminal, not an Automation Runtime machine controller. Verify the full order number, glass variant, Ethernet port count, panel cutout, hardware revision and PPT50 image before replacement.

FAQ

Q: Does this unit run the machine control program?

A: No. The T50 is a terminal-design HMI. It displays visualization content supplied through VNC, web technology or a compatible HMI application.

Q: Does the screen support multi-touch gestures?

A: Yes. It uses projected-capacitive multi-touch technology behind a chemically hardened glass surface.

Q: How many Ethernet ports does this exact model have?

A: Two Gigabit Ethernet ports are provided through an integrated switch on this -16B version.

Q: What does the B suffix indicate on this variant?

A: The B suffix identifies the standard glass version. Closely related A variants add an anti-glare surface treatment.

Q: How does it differ from 6PPT50.121E-10B?

A: This -16B model has two Gigabit Ethernet ports with an integrated switch. The -10B model has one Gigabit Ethernet port; both use standard glass and the same 12.1-inch display.

Q: Can another T50 size or interface version replace it directly?

A: Not without engineering checks. Screen size, cutout, glass type, port count, hardware revision, image version and project configuration must all match the application.
