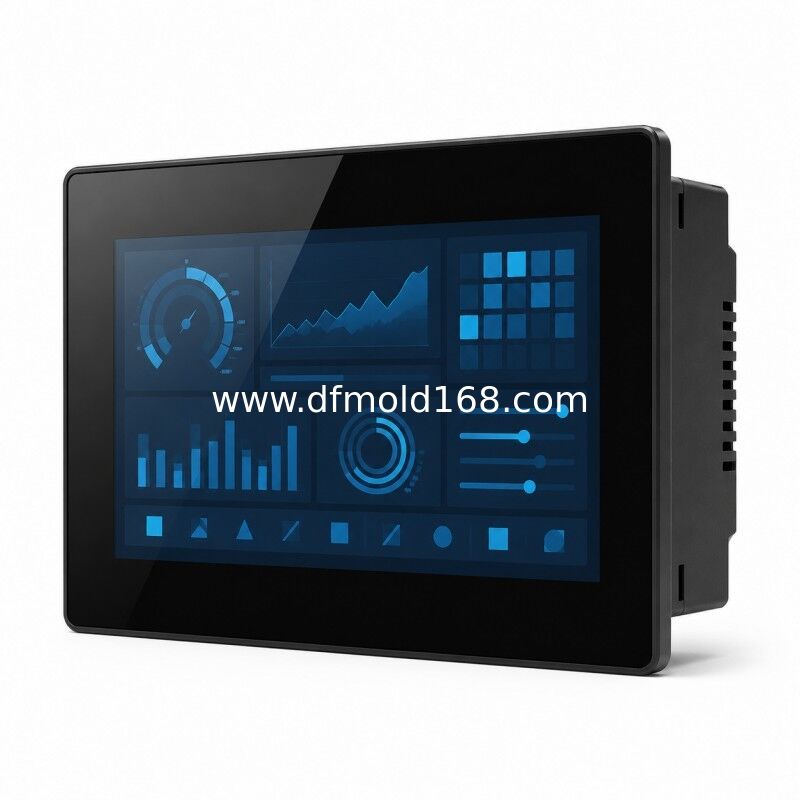

6PPT50.0702-10B Power Panel T50 7 Inch Ethernet HMI

The B&R 6PPT50.0702-10B is a 7.0-inch Power Panel T50 HMI terminal based on an 800 MHz dual-core ARM Cortex-A9 platform with 1 GB DRAM and 512 MB onboard flash. Its WVGA 800 x 480 pixels projected-capacitive display supports multi-touch operation through chemically hardened 6h standard glass with black frame.

This model combines the smallest T50 screen in the batch with the simpler single-port Ethernet layout. It preserves the same processor, memory, USB and client software platform used by the dual-port 6PPT50.0702-16B.

Key Features

· 7.0-inch WVGA 800 x 480 pixels multi-touch display

· Chemically hardened 6H standard glass front

· Dual-core 800 MHz ARM Cortex-A9 processor

· Single shielded Gigabit Ethernet port

· Two USB 2.0 ports with 0.5 A capacity each

· VNC client, embedded browser and mapp View support

Typical Applications

· Compact standalone machines

· Direct Ethernet HMI links

· Small packaging equipment

· Web visualization terminals

· Space-limited multi-touch retrofits

Compatibility Note

This T50 model is a visualization terminal, not an Automation Runtime machine controller. Verify the full order number, glass variant, Ethernet port count, panel cutout, hardware revision and PPT50 image before replacement.

FAQ

Q: Does this unit run the machine control program?

A: No. The T50 is a terminal-design HMI. It displays visualization content supplied through VNC, web technology or a compatible HMI application.

Q: Does the screen support multi-touch gestures?

A: Yes. It uses projected-capacitive multi-touch technology behind a chemically hardened glass surface.

Q: How many Ethernet ports does this exact model have?

A: One shielded Gigabit Ethernet port is fitted on this -10B version.

Q: What does the B suffix indicate on this variant?

A: The B suffix identifies the standard glass version. Closely related A variants add an anti-glare surface treatment.

Q: Does the -10B version include an Ethernet switch?

A: No. It has one Gigabit Ethernet port. Choose the -16B version when an integrated two-port switch is required.

Q: Can another T50 size or interface version replace it directly?

A: Not without engineering checks. Screen size, cutout, glass type, port count, hardware revision, image version and project configuration must all match the application.
