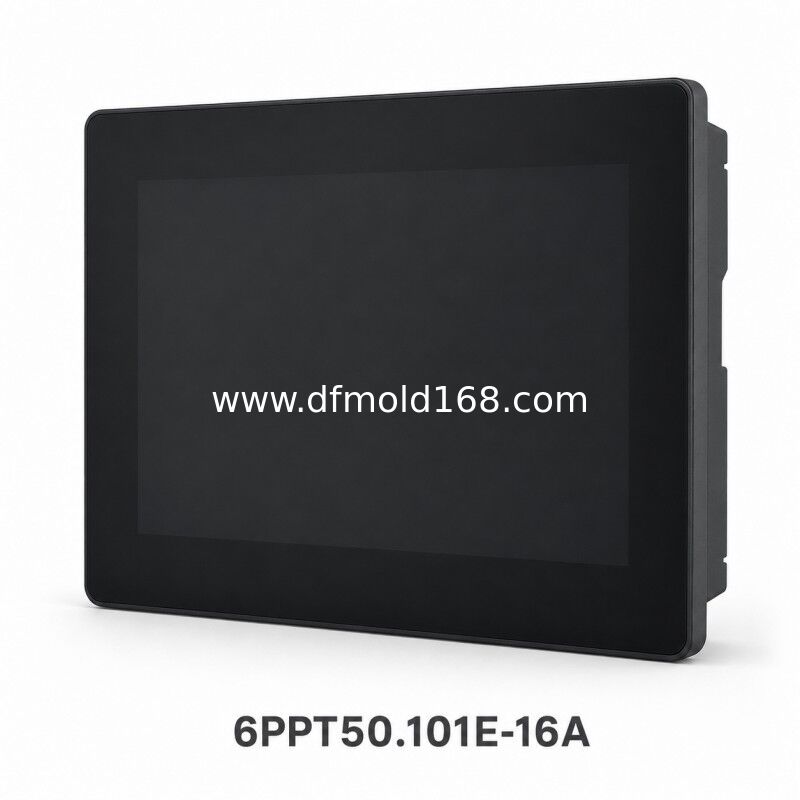

6PPT50.101E-16A Power Panel T50 10.1 Inch Anti Glare HMI

The B&R 6PPT50.101E-16A is a 10.1-inch Power Panel T50 HMI terminal based on an 800 MHz dual-core ARM Cortex-A9 platform with 1 GB DRAM and 512 MB onboard flash. Its WXGA 1280 x 800 pixels projected-capacitive display supports multi-touch operation through chemically hardened anti-glare 6h glass with black frame.

The A suffix specifies the anti-glare surface, helping reduce reflections in brightly lit operator areas. Its -16 interface code provides two Gigabit Ethernet ports with an integrated switch for flexible machine-network wiring.

Key Features

· 10.1-inch WXGA 1280 x 800 pixels multi-touch display

· Chemically hardened anti-glare 6H glass front

· Dual-core 800 MHz ARM Cortex-A9 processor

· Dual Gigabit Ethernet ports with integrated switch

· Two USB 2.0 ports with 0.5 A capacity each

· VNC client, embedded browser and mapp View support

Typical Applications

· Brightly lit production areas

· Detailed multi-touch dashboards

· Dual-port Ethernet machines

· Process alarm and trend displays

· VNC and web visualization

Compatibility Note

This T50 model is a visualization terminal, not an Automation Runtime machine controller. Verify the full order number, glass variant, Ethernet port count, panel cutout, hardware revision and PPT50 image before replacement.

FAQ

Q: Does this unit run the machine control program?

A: No. The T50 is a terminal-design HMI. It displays visualization content supplied through VNC, web technology or a compatible HMI application.

Q: Does the screen support multi-touch gestures?

A: Yes. It uses projected-capacitive multi-touch technology behind a chemically hardened glass surface.

Q: How many Ethernet ports does this exact model have?

A: Two Gigabit Ethernet ports are provided through an integrated switch on this -16A version.

Q: What does the A suffix indicate on this variant?

A: The A suffix identifies the anti-glare glass version. Closely related B variants use standard chemically hardened glass.

Q: Why choose the A version instead of 6PPT50.101E-16B?

A: Choose the A version where the anti-glare surface is preferred for reflected-light control. The B version uses standard hardened glass while keeping the same screen and Ethernet configuration.

Q: Can another T50 size or interface version replace it directly?

A: Not without engineering checks. Screen size, cutout, glass type, port count, hardware revision, image version and project configuration must all match the application.
