Highlight:
Material Number: |
R911308419 |
Product Family: |
IndraDrive C HCS03 |
Product Type: |
Upper-power Single-axis Compact Converter Power Section |
Maximum Current: |
100 A |
Continuous Current: |
75 A Reference |
Mains Input: |
3 AC 400 To 500 V, 50 To 60 Hz |
Output Voltage: |
3 AC 0 To 480 V Reference |
Overload Capacity: |
Up To 1.5 Times, Subject To Duty-cycle Limits |
Cooling: |
Internal Forced-air Cooling |
Protection Rating: |
IP20 |
Power Without Choke: |
24 KW Continuous, 33 KW Maximum |
Power With Choke: |
43 KW Continuous, 59 KW Maximum |
Nominal Dimensions: |
225 X 315 X 440 Mm, Width X Height X Depth |
Reference Weight: |
Approximately 19 Kg |
Hardware Suffix: |
NNBV - Exact Option Configuration Must Be Matched |
Control Section: |
Separate CSB Or CSH Control Section Required |
Communication And Safety: |
Defined By The Installed Control Section |

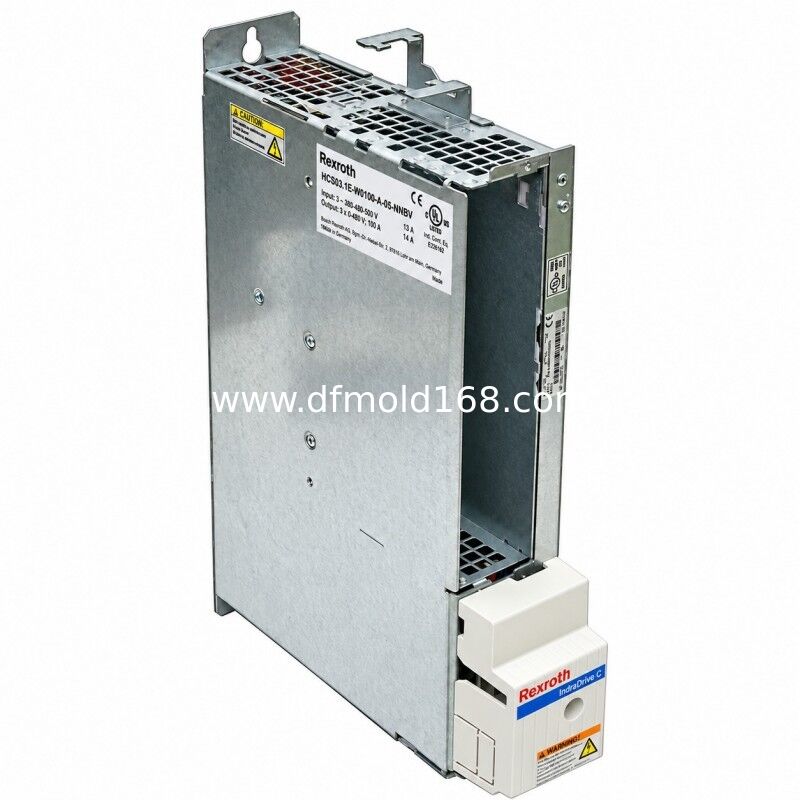

HCS03.1E-W0100-A-05-NNBV 100A 400-500V Converter Power Section
The HCS03.1E-W0100-A-05-NNBV is an upper-power HCS03 converter section for 400 to 500 V single-axis systems. It supplies a 100 A maximum-current class and a 75 A continuous-current reference, providing a clear step above the 70 A HCS03 versions in this batch.
R911308419 identifies the NNBV hardware variant. The separate CSB or CSH control section determines the fieldbus, encoder evaluation, safety functions and firmware. For accurate replacement and quotation, retain the complete NNBV suffix and list the attached control section independently rather than merging both codes into a generic HCS03 description.
Key Features
· 100 A maximum and 75 A continuous-current reference
· 400 to 500 V three-phase mains class
· Upper-power HCS03 single-axis architecture
· Internal forced-air cooling
· Exact NNBV hardware suffix and R911308419 identity
· Separate control-section slot for scalable interfaces
Typical Applications
· Large machine-tool axes
· High-power printing and converting systems
· Test stands and production machinery
· Exact replacement of R911308419 power sections
Compatibility and Selection Note
Do not substitute another HCS03 W0100 suffix without checking the integrated hardware options, external mains and braking components, control-voltage arrangement and complete CSB or CSH control-section code.
Frequently Asked Questions
Q1 Does the 100 A value represent continuous current?
No. It is the maximum current class. The reference continuous current for this version is 75 A under the stated technical conditions.
Q2 What does NNBV mean for replacement selection?
It is the exact hardware-option suffix of R911308419. Match it exactly unless the alternate configuration has been approved through the project documentation.
Q3 Is the control section included in the HCS03 code?
No. Identify the installed CSB or CSH unit separately, together with its firmware.
Q4 Can the communication protocol be read from R911308419?
No. Communication is determined by the control section, not the HCS03 power-section code.
Q5 Can W0100 replace a W0070 unit?
Higher current alone does not establish compatibility. Review dimensions, mains, braking, motor, control section and parameters.
Q6 What information is required for a complete-assembly quote?
Provide both type plates, R911308419, the full control-section code, firmware, machine supply voltage and motor model.
