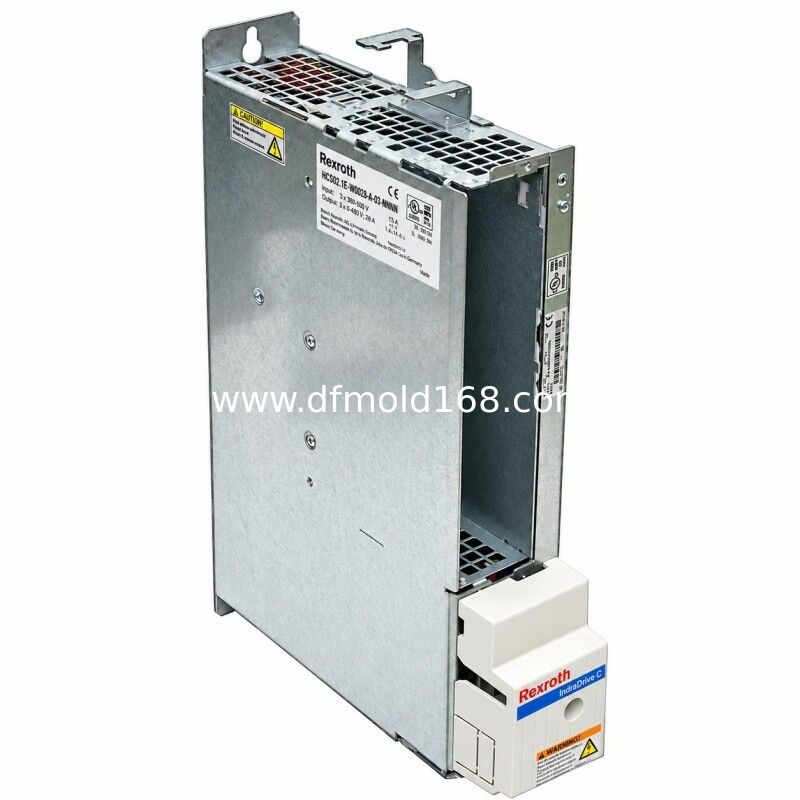

HCS02.1E-W0012-A-03-NNNN 11.5A 1.5kW Converter Power Section

The HCS02.1E-W0012-A-03-NNNN is a compact single-axis converter power section for low-power servo axes. It converts a 200 to 500 V three-phase supply into variable three-phase motor output, with an 11.5 A maximum-current class, 4.5 A continuous-current reference and an approximately 1.5 kW motor-rating reference. A separate CSB or CSH control section supplies the motion-control, communication, encoder and safety functions. This architecture is used in assembly machines, small conveyors, indexing stations and auxiliary axes where the completed drive is configured around the original control section and firmware project.

Key Features

• 11.5 A maximum and 4.5 A continuous current
• Typical 1.5 kW motor class
• Compact 65 mm nominal width
• 3 AC 200 to 500 V mains class
• Control-section slot for configurable interfaces
• IP20 internal-air-cooled construction

Typical Applications

• Small pick-and-place axes
• Indexing tables
• Light conveyor systems
• Auxiliary axes in cabinet-based servo systems

Supply and Inquiry Information

Supply is matched to HCS02.1E-W0012-A-03-NNNN and material number R911298371. To request a quote, send quantity, destination country, requested condition, delivery target, a nameplate photo and the CSB or CSH control-section code. The quotation should clearly state whether the scope is the power section alone or an assembled unit with control section, firmware, connectors and accessories.

FAQ

Q1 Can I request the exact HCS02.1E-W0012-A-03-NNNN for purchase?

Yes. Use the complete model and material number R911298371 in the inquiry. Current availability, condition and lead time are confirmed for the requested quantity.

Q2 What information is required for a formal quotation?

Provide HCS02.1E-W0012-A-03-NNNN, R911298371, quantity, destination country, requested condition, required delivery date and clear nameplate photos. Include the installed firmware and related system codes when available.

Q3 What is included in the quoted scope?

The quotation should list the bare power section or complete assembly with CSB or CSH control section separately. Items not stated in the offer should not be assumed to be included.

Q4 Can a similar HCS model replace this exact unit?

A W0028 or larger HCS02 unit is not a drop-in substitute for W0012. Confirm current class, cabinet dimensions, motor load, mains components, installed CSB or CSH section and R911298371.

Q5 How are price and lead time determined?

Price and lead time are confirmed after the 11.5 A HCS02 power section, requested condition, quantity, delivery destination and test scope have been matched to current supply.

Q6 What must be verified before installing the replacement power section?

Compare the complete order code and R911298371, current and mains classes, dimensions, cooling, choke arrangement, motor load, CSB or CSH control section and firmware project.
