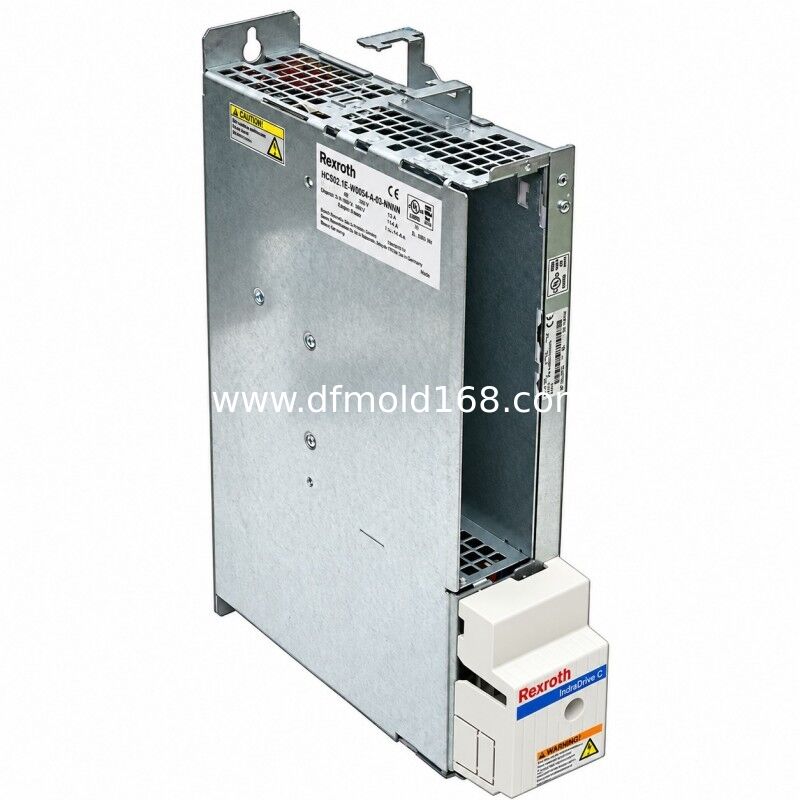

HCS02.1E-W0070-A-03-NNNN 70.8A 11kW Converter Power Section

The HCS02.1E-W0070-A-03-NNNN is a 70.8 A single-axis converter power section for demanding servo axes. Its 28 A continuous-current reference and approximately 11 kW motor-rating reference support larger material-handling systems, printing and converting machines, machine-tool feeds and other high-load production equipment. The HCS02 supplies the motor power stage, while a separate CSB or CSH control section provides motion control, communication, encoder processing and safety functions. The machine behavior consequently depends on the combined power-section, control-section and firmware configuration.

Key Features

• 70.8 A maximum and 28 A continuous current
• Typical 11 kW motor class
• Highest HCS02 power range in this 15-model group
• Up to 19 kW maximum power with the specified choke
• Separate control-section slot
• Internal air cooling and IP20 cabinet protection

Typical Applications

• High-inertia material-handling axes
• Large packaging and converting machines
• Machine-tool and test-rig drives
• High-load 11 kW-class servo axes

Supply and Inquiry Information

Supply is confirmed by the full model HCS02.1E-W0070-A-03-NNNN and material number R911298372. For a quotation, provide quantity, destination country, requested condition, delivery target, nameplate photo, choke arrangement and the required CSB or CSH control-section code. The quote must distinguish the bare power section from a complete assembly and list any firmware, connectors or accessories included.

FAQ

Q1 Can I request the exact HCS02.1E-W0070-A-03-NNNN for purchase?

Yes. Use the complete model and material number R911298372 in the inquiry. Current availability, condition and lead time are confirmed for the requested quantity.

Q2 What information is required for a formal quotation?

Provide HCS02.1E-W0070-A-03-NNNN, R911298372, quantity, destination country, requested condition, required delivery date and clear nameplate photos. Include the installed firmware and related system codes when available.

Q3 What is included in the quoted scope?

The quotation should list the bare power section or complete assembly with CSB or CSH control section separately. Items not stated in the offer should not be assumed to be included.

Q4 Can a similar HCS model replace this exact unit?

W0054 and smaller HCS02 variants have different current and power capability. Verify the 70.8 A class, cabinet space, choke and mains arrangement, motor load, control section, firmware and R911298372.

Q5 How are price and lead time determined?

Price and lead time are confirmed after the 70.8 A HCS02 power section, requested condition, quantity, delivery destination and test scope have been matched to current supply.

Q6 What must be verified before installing the replacement power section?

Compare the complete order code and R911298372, current and mains classes, dimensions, cooling, choke arrangement, motor load, CSB or CSH control section and firmware project.
