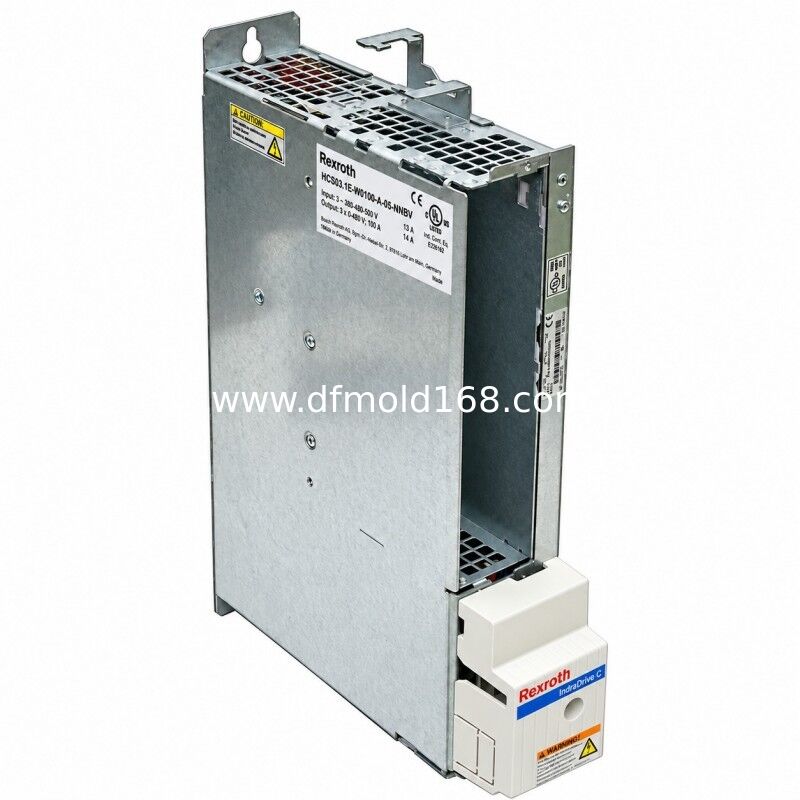

HCS03.1E-W0100-A-05-NNBV 100A 400-500V Converter Power Section

The HCS03.1E-W0100-A-05-NNBV is an upper-power single-axis converter section for large servo axes supplied from 400 to 500 V three-phase mains. Its 100 A maximum-current class and 75 A continuous-current reference serve heavy machine-tool feeds, printing and converting equipment, material-handling systems and other high-load motion applications. Forced-air cooling supports the higher power density, while a separate CSB or CSH control section provides motion control, communication, encoder and safety functions. The NNBV hardware suffix identifies the option configuration that must remain consistent with the original electrical and mechanical design.

Key Features

• 100 A maximum and 75 A continuous-current reference
• 400 to 500 V three-phase mains class
• Upper-power HCS03 single-axis architecture
• Internal forced-air cooling
• Exact NNBV hardware suffix and R911308419 identity
• Separate control-section slot for scalable interfaces

Typical Applications

• Large machine-tool axes
• High-power printing and converting systems
• Test stands and production machinery
• High-current 400 to 500 V servo axes

Supply and Inquiry Information

Supply is checked against HCS03.1E-W0100-A-05-NNBV and material number R911308419. A quotation request should include quantity, destination country, requested condition, delivery target, nameplate photo, choke and mains arrangement, and the CSB or CSH control-section code. The offer must state whether it covers the power section alone or a complete assembly and must list the included firmware, connectors and accessories.

FAQ

Q1 Can I request the exact HCS03.1E-W0100-A-05-NNBV for purchase?

Yes. Use the complete model and material number R911308419 in the inquiry. Current availability, condition and lead time are confirmed for the requested quantity.

Q2 What information is required for a formal quotation?

Provide HCS03.1E-W0100-A-05-NNBV, R911308419, quantity, destination country, requested condition, required delivery date and clear nameplate photos. Include the installed firmware and related system codes when available.

Q3 What is included in the quoted scope?

The quotation should list the bare power section or complete assembly with CSB or CSH control section separately. Items not stated in the offer should not be assumed to be included.

Q4 Can a similar HCS model replace this exact unit?

A W0070 section is not a direct replacement for W0100, and another suffix may change the hardware arrangement. Match the 100 A class, 400 to 500 V supply, NNBV suffix, dimensions, control section and R911308419.

Q5 How are price and lead time determined?

Price and lead time are confirmed after the 100 A HCS03 NNBV power section, requested condition, quantity, delivery destination and test scope have been matched to current supply.

Q6 What must be verified before installing the replacement power section?

Compare the complete order code and R911308419, current and mains classes, dimensions, cooling, choke arrangement, motor load, CSB or CSH control section and firmware project.
