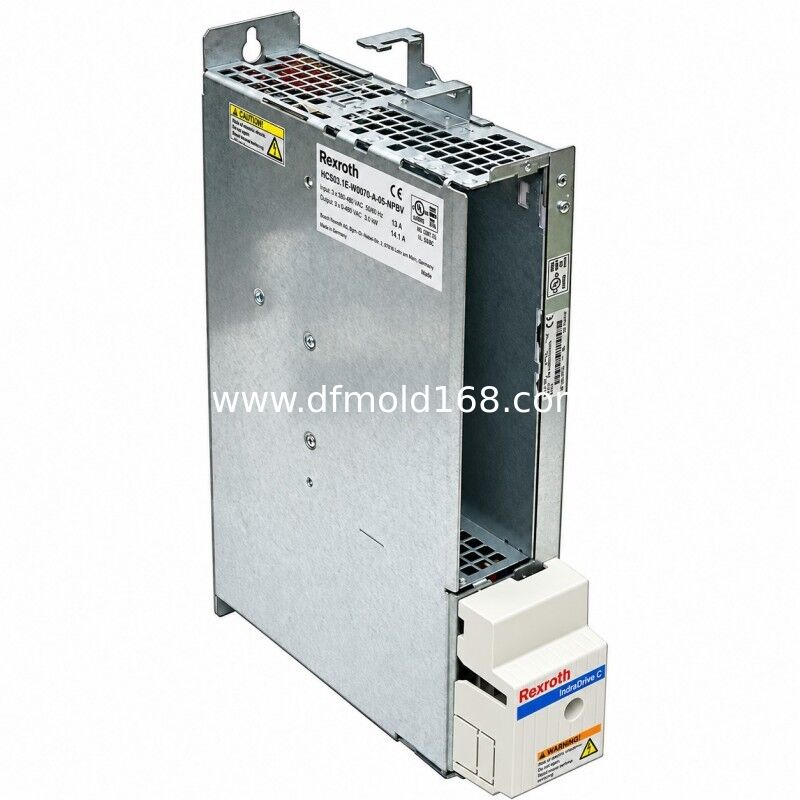

HCS03.1E-W0070-A-05-NPBV 70A 400-500V NPBV Power Section

The HCS03.1E-W0070-A-05-NPBV is an upper-power single-axis converter section for 400 to 500 V servo systems. Its W0070 current class is used for large motion axes in machine tools, printing and converting machinery, material handling and other production equipment requiring a high-power cabinet drive. The unit provides the power stage and requires a separate CSB or CSH control section for motion control, communication, encoder and safety functions. The NPBV suffix distinguishes this hardware configuration from the NNBV version, so application engineering must follow the exact material-number documentation.

Key Features

• 70 A HCS03 maximum-current class
• 400 to 500 V three-phase mains range
• Distinct NPBV hardware suffix and R911326648 identity
• Upper-power single-axis converter construction
• Internal forced-air cooling with IP20 protection
• Separate control-section slot for interfaces and firmware

Typical Applications

• High-power machine axes using the NPBV configuration
• Industrial printing and converting systems
• Heavy material-handling equipment
• Upper-power axes using the NPBV hardware configuration

Supply and Inquiry Information

Supply is confirmed against HCS03.1E-W0070-A-05-NPBV and material number R911326648. Quote requests should include quantity, destination country, requested condition, delivery target, clear nameplate photos, choke and mains arrangement, and the CSB or CSH control-section code. The offer must identify the NPBV suffix, define power-section-only or complete-assembly scope, and list included firmware, connectors and accessories.

FAQ

Q1 Can I request the exact HCS03.1E-W0070-A-05-NPBV for purchase?

Yes. Use the complete model and material number R911326648 in the inquiry. Current availability, condition and lead time are confirmed for the requested quantity.

Q2 What information is required for a formal quotation?

Provide HCS03.1E-W0070-A-05-NPBV, R911326648, quantity, destination country, requested condition, required delivery date and clear nameplate photos. Include the installed firmware and related system codes when available.

Q3 What is included in the quoted scope?

The quotation should list the bare power section or complete assembly with CSB or CSH control section separately. Items not stated in the offer should not be assumed to be included.

Q4 Can a similar HCS model replace this exact unit?

Do not assume that HCS03.1E-W0070-A-05-NNBV is interchangeable. Match the NPBV suffix and R911326648, then verify option-specific drawings, current data, mains components, control section and firmware before installation.

Q5 How are price and lead time determined?

Price and lead time are confirmed after the W0070 HCS03 NPBV hardware configuration, requested condition, quantity, delivery destination and test scope have been matched to current supply.

Q6 What must be verified before installing the replacement power section?

Compare the complete order code and R911326648, current and mains classes, dimensions, cooling, choke arrangement, motor load, CSB or CSH control section and firmware project.
