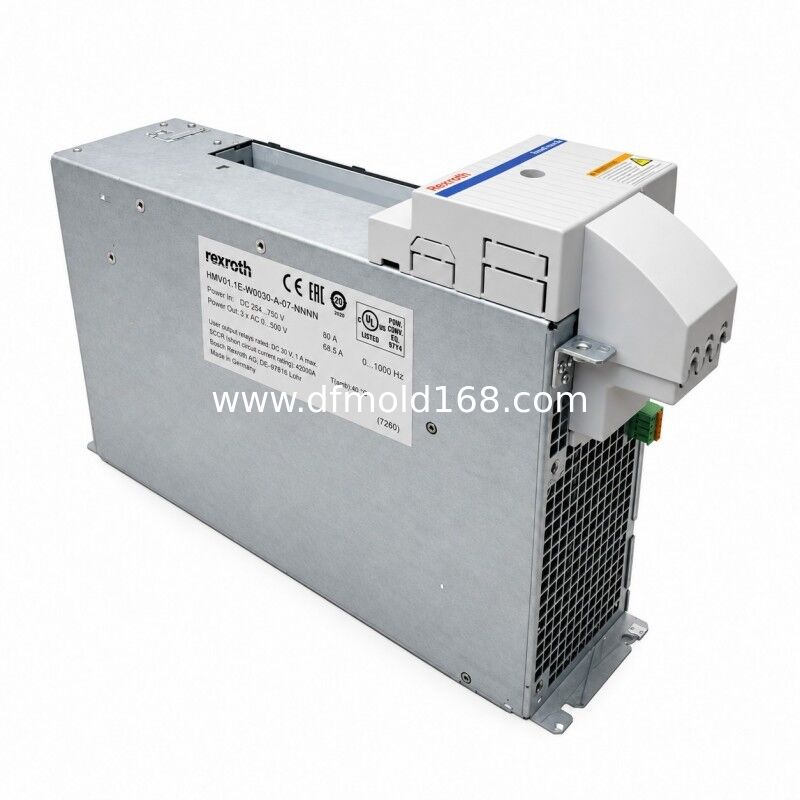

HMV01.1E-W0030-A-07-NNNN 30kW Feeding Supply Unit

This HMV01 supply unit forms the electrical front end of a modular IndraDrive M group. It converts three-phase mains power into the common DC bus used by connected HMS or HMD inverter modules, allowing several machine axes to share one centralized power source.

The 30 kW class is suited to compact and medium-load multi-axis cabinets where coordinated servo axes operate from the same DC link. In a feed-in architecture, braking energy can be exchanged within the common bus and managed by the configured braking arrangement rather than being returned through a regenerative mains stage.

Key Features

• Centralizes line-side conversion for a modular IndraDrive M axis group
• Supports a shared DC bus for connected single-axis and double-axis inverters
• Feed-in topology for systems using a defined braking-energy arrangement
• Internal blower cooling for protected cabinet integration
• Useful for compact multi-axis layouts with moderate continuous demand
• Separates the drive-group power source from individual motor inverters

Typical Applications

• Compact packaging machines
• Assembly and handling cells
• Printing and converting stations
• Multi-axis machine modules

Supply and Inquiry Information

Supply is handled against the complete order code HMV01.1E-W0030-A-07-NNNN and material number R911296724. For an availability and quotation check, send the required quantity, destination country, requested condition, delivery target and clear photos of the existing nameplate. Include the line voltage, connected inverter list, estimated simultaneous load and whether the existing system uses a feed-in or regenerative front end. The offered unit, test scope, included connectors and any line choke or braking components will be stated separately in the quotation.

FAQ

Q1 Can I request the exact HMV01.1E-W0030-A-07-NNNN for purchase?

Yes. Submit the complete order code and material number R911296724. Availability, condition, test scope and lead time are confirmed for the requested quantity and destination.

Q2 What information is needed for a formal quotation?

Provide HMV01.1E-W0030-A-07-NNNN, R911296724, quantity, destination, requested condition, delivery target and nameplate photos. Add the mains voltage, connected HMS or HMD modules, estimated load and existing energy-direction configuration.

Q3 What is included in the quoted scope?

The offer should identify the supply unit, condition and test scope. A mains choke, braking resistor, bus bars, connectors, control-voltage accessories and installation hardware are included only when explicitly listed.

Q4 Can HMV01.1E-W0075-A-07-NNNN or an R-type regenerative unit replace this unit?

Not by model family alone. Match the full order code, material number R911296724, power class, mains current, DC output, energy direction, braking or regeneration design, cabinet space and connected drive-group demand.

Q5 How are price and lead time determined?

They are confirmed after the exact HMV01.1E-W0030-A-07-NNNN configuration, requested condition, quantity, destination, delivery target and test or warranty scope have been checked against current sourcing options.

Q6 What must be verified before installing a replacement?

Confirm HMV01.1E-W0030-A-07-NNNN and R911296724, line voltage, DC-bus design, power demand, feed-in or regenerative architecture, choke and braking components, control voltage, wiring and project documentation. Commissioning must follow the machine manufacturer's validated procedure.
