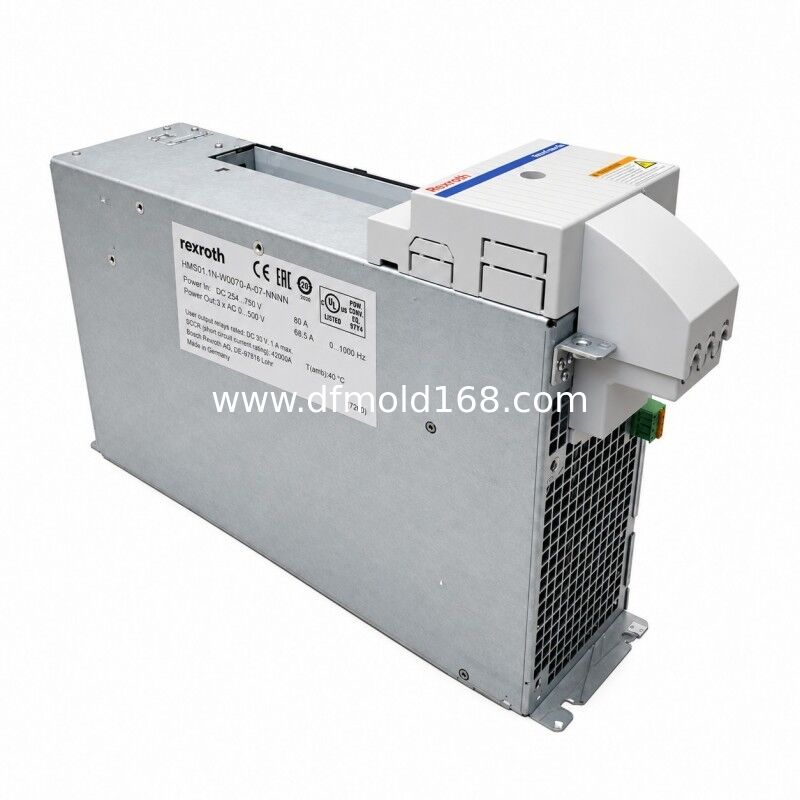

HMS01.1N-W0070-A-07-NNNN 70A Single-Axis Inverter

This HMS01 module is a DC-supplied single-axis inverter used to create a regulated, variable AC output for one motor axis in an IndraDrive M system. It works behind a common DC-bus source, allowing the machine builder to combine the power section with the control section, feedback interface, communication and safety functions required by the axis.

The 70 A maximum-current class is intended for higher-torque single-axis duties within a coordinated modular drive group. Its modular role makes it suitable for machine layouts in which several inverter axes share an HMV01 or HMU05 supply unit while each axis retains independent motor regulation.

Key Features

• Dedicated power section for one independently regulated motor axis
• 70 A maximum-current class with 42.4 A continuous-current reference
• Draws operating power from the common IndraDrive DC bus
• Accepts a separately selected IndraDrive control section
• 100 mm module width for planned cabinet arrangement
• Internal air cooling and IP20 protection for cabinet installation

Typical Applications

• Indexing tables and transfer axes
• Printing and converting machinery
• Machine-tool feed axes
• High-throughput handling equipment

Supply and Inquiry Information

Supply is handled against the complete order code HMS01.1N-W0070-A-07-NNNN and material number R911295326. For an availability and quotation check, send the required quantity, destination country, requested condition, delivery target and clear photos of the existing nameplate. Include the DC-bus source, motor model, installed control section, firmware, communication, encoder and safety configuration. The quotation will identify whether the scope covers the inverter power section only and will list any control section, firmware, connectors or accessories separately.

FAQ

Q1 Can I order the exact HMS01.1N-W0070-A-07-NNNN power section?

Yes. Use the complete order code and material number R911295326. Availability, condition, lead time and test scope are confirmed for the requested quantity.

Q2 What details should I send for a quotation?

Send HMS01.1N-W0070-A-07-NNNN, R911295326, quantity, destination, requested condition and delivery target. Include photos of the inverter and control section plus the motor, firmware, communication, encoder and safety details.

Q3 Does the quotation automatically include a control section and firmware?

No. The base scope should be treated as the inverter power section unless the offer explicitly lists a control section, firmware, memory device, connectors or other accessories.

Q4 Can HMS01.1N-W0054-A-07-NNNN or HMS01.1N-W0110-A-07-NNNN be used as a direct replacement?

Do not substitute it from the current code alone. Verify the complete model, R911295326, continuous and maximum current, module width, DC-bus source, motor data, control section, firmware, communication, feedback and safety functions.

Q5 How are price and delivery time confirmed?

Price and lead time depend on the exact HMS01.1N-W0070-A-07-NNNN, requested condition, quantity, destination, test scope and whether matched control hardware or accessories are required.

Q6 What should be checked before the replacement is installed?

Match HMS01.1N-W0070-A-07-NNNN and R911295326 to the existing nameplate, then confirm the HMV or HCS bus source, motor cable, control section, encoder interface, communication, safety circuit, firmware and saved parameters before commissioning.
