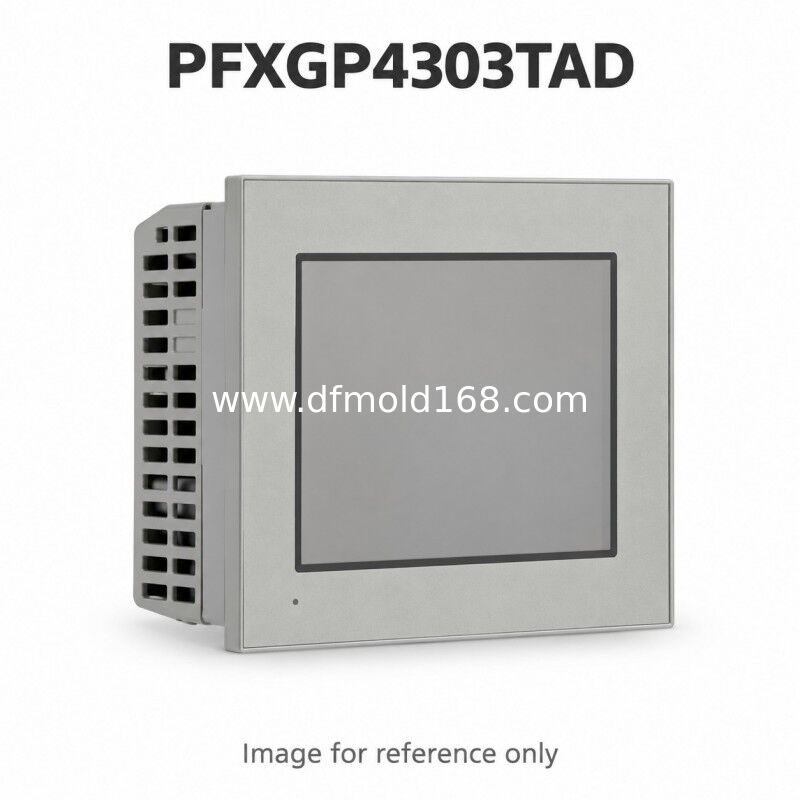

PFXGP4303TAD 5.7 Inch Isolated RS485 HMI 24VDC

Parameters

Product Description

PFXGP4303TAD is a 5.7-inch touchscreen operator panel with 320 x 240 pixels for configured machine screens, operating values and operator settings. This 5.7-inch version provides RS-232C on COM1 and isolated RS-485 on COM2. The COM2 socket is a female D-Sub 9 connector, which must be matched to the installed cable and pinout. Check the project backup, controller communication driver and cabinet dimensions before ordering. Supply of the hardware does not automatically include the machine program, engineering software license or commissioning.

Supply and Quotation

Request a quotation for PFXGP4303TAD with quantity, destination and required arrival date. Send model-label and connector photos when sourcing a spare. We will confirm the offered condition, hardware revision, availability, included accessories and delivery terms in the quotation. Software licenses and machine programs are included only when expressly stated.

Compatibility

Match the full model to the machine supply, communication wiring, panel opening and project requirements. Confirm the project backup, engineering software and firmware versions before planning transfer or commissioning.

FAQ

1. Which port provides isolated communication?
   COM2 provides isolated RS-485 through a female D-Sub 9 connector. COM1 is RS-232C with a male D-Sub 9 connector. Confirm the controller driver and cable wiring for the intended connection.
2. Which communication connections are provided?
   COM1: RS-232C, D-Sub 9 male. COM2: Isolated RS-485, D-Sub 9 female. The panel also has one 10/100 Mbps Ethernet port. Confirm the project driver, controller settings and connector pinout before connection.
3. What memory and removable storage are available?
   Application Flash is 16 MB, including the logic program area; data backup SRAM is 320 KB. One SD slot is fitted. Agree the card and its contents separately.
4. How do I request a price for PFXGP4303TAD?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photos and any deadline. Price and availability are confirmed for the specific offered unit.
5. Will the machine program already be installed?
   Confirm access to the project backup, passwords and required software before purchase. Hardware supply does not establish that your application is loaded. Agree any transfer or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching model-label and connector photos, the accessory list and an agreed inspection scope. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
