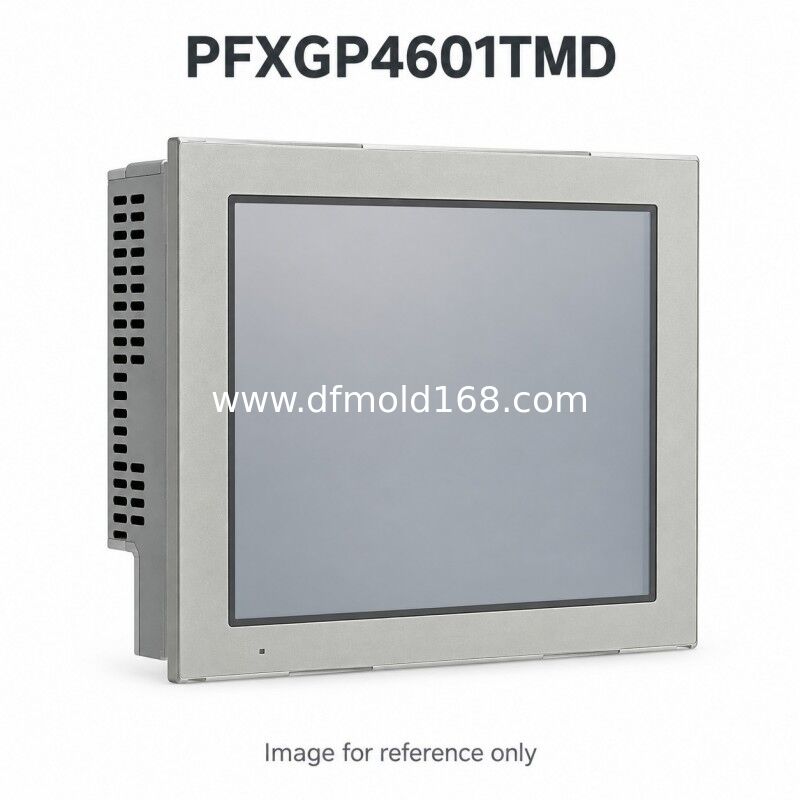

PFXGP4601TMD 12.1 Inch Matrix Touch HMI 24VDC

Parameters

Product Description

PFXGP4601TMD is a 12.1-inch touchscreen operator panel with 800 x 600 pixels for configured machine screens, operating values and operator settings. This 12.1-inch panel uses a 40 x 30 matrix touch grid and 24 V DC input. Its 800 x 600 display provides more screen pixels than the 10.4-inch matrix version. Check the project backup, controller communication driver and cabinet dimensions before ordering. Supply of the hardware does not automatically include the machine program, engineering software license or commissioning.

Supply and Quotation

Request a quotation for PFXGP4601TMD with quantity, destination and required arrival date. Send model-label and connector photos when sourcing a spare. We will confirm the offered condition, hardware revision, availability, included accessories and delivery terms in the quotation. Software licenses and machine programs are included only when expressly stated.

Compatibility

Match the full model to the machine supply, communication wiring, panel opening and project requirements. Confirm the project backup, engineering software and firmware versions before planning transfer or commissioning.

FAQ

1. What touch grid and power input does it use?
   The panel uses resistive matrix touch with 40 x 30 keys per screen and a 24 V DC supply. Preserve the TMD suffix when ordering because touch type and power input vary across related references.
2. Which communication connections are provided?
   COM1: RS-232C, D-Sub 9 male. COM2: RS-422/485, D-Sub 9 male. The panel also has one 10/100 Mbps Ethernet port. Confirm the project driver, controller settings and connector pinout before connection.
3. What memory and removable storage are available?
   Application Flash is 32 MB, including the logic program area; data backup SRAM is 320 KB. One SD slot is fitted. Agree the card and its contents separately.
4. How do I request a price for PFXGP4601TMD?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photos and any deadline. Price and availability are confirmed for the specific offered unit.
5. Will the machine program already be installed?
   Confirm access to the project backup, passwords and required software before purchase. Hardware supply does not establish that your application is loaded. Agree any transfer or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching model-label and connector photos, the accessory list and an agreed inspection scope. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
