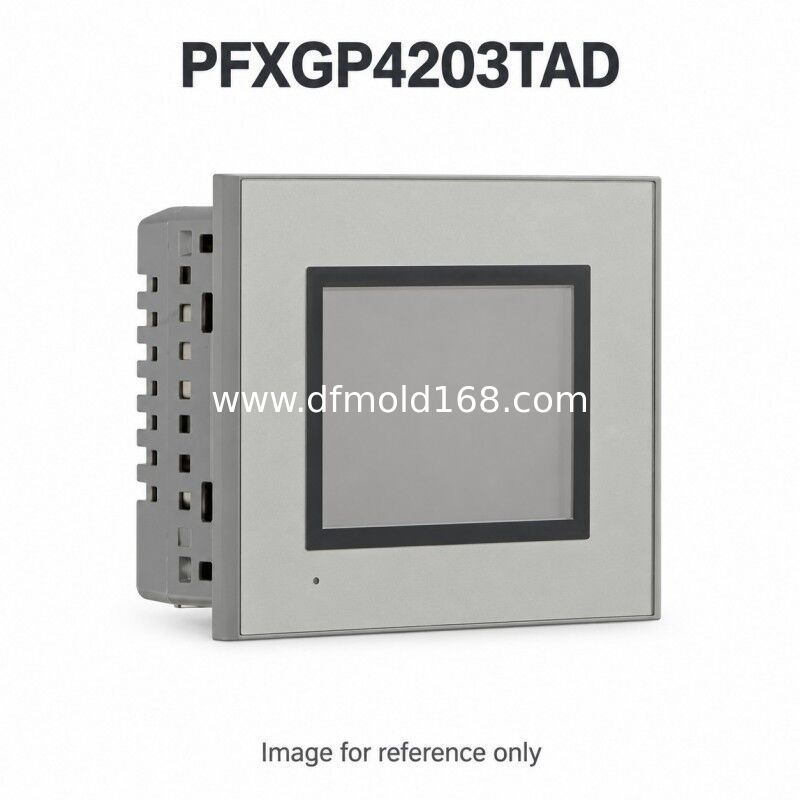

PFXGP4203TAD 3.5 Inch Isolated RS485 HMI 24VDC

Parameters

Product Description

PFXGP4203TAD is a 3.5-inch touchscreen operator panel with 320 x 240 pixels for configured machine screens, operating values and operator settings. The compact 3.5-inch panel has one isolated RS-485 port on COM1 and an Ethernet port. It has no separate COM2 connector and no SD card slot, so check the required communication and transfer arrangement. Check the project backup, controller communication driver and cabinet dimensions before ordering. Supply of the hardware does not automatically include the machine program, engineering software license or commissioning.

Supply and Quotation

Request a quotation for PFXGP4203TAD with quantity, destination and required arrival date. Send model-label and connector photos when sourcing a spare. We will confirm the offered condition, hardware revision, availability, included accessories and delivery terms in the quotation. Software licenses and machine programs are included only when expressly stated.

Compatibility

Match the full model to the machine supply, communication wiring, panel opening and project requirements. Confirm the project backup, engineering software and firmware versions before planning transfer or commissioning.

FAQ

1. How many serial ports does this model have?
   It has one isolated RS-485 port on COM1, using a female D-Sub 9 connector. COM2 is not fitted. A separate 10/100 Mbps Ethernet port is available.
2. Which communication connections are provided?
   COM1: Isolated RS-485, D-Sub 9 female. COM2: Not fitted. The panel also has one 10/100 Mbps Ethernet port. Confirm the project driver, controller settings and connector pinout before connection.
3. What memory and removable storage are available?
   Application Flash is 16 MB, including the logic program area; data backup SRAM is 320 KB. No SD slot is fitted. Confirm a supported USB transfer method for the project.
4. How do I request a price for PFXGP4203TAD?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photos and any deadline. Price and availability are confirmed for the specific offered unit.
5. Will the machine program already be installed?
   Confirm access to the project backup, passwords and required software before purchase. Hardware supply does not establish that your application is loaded. Agree any transfer or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching model-label and connector photos, the accessory list and an agreed inspection scope. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
