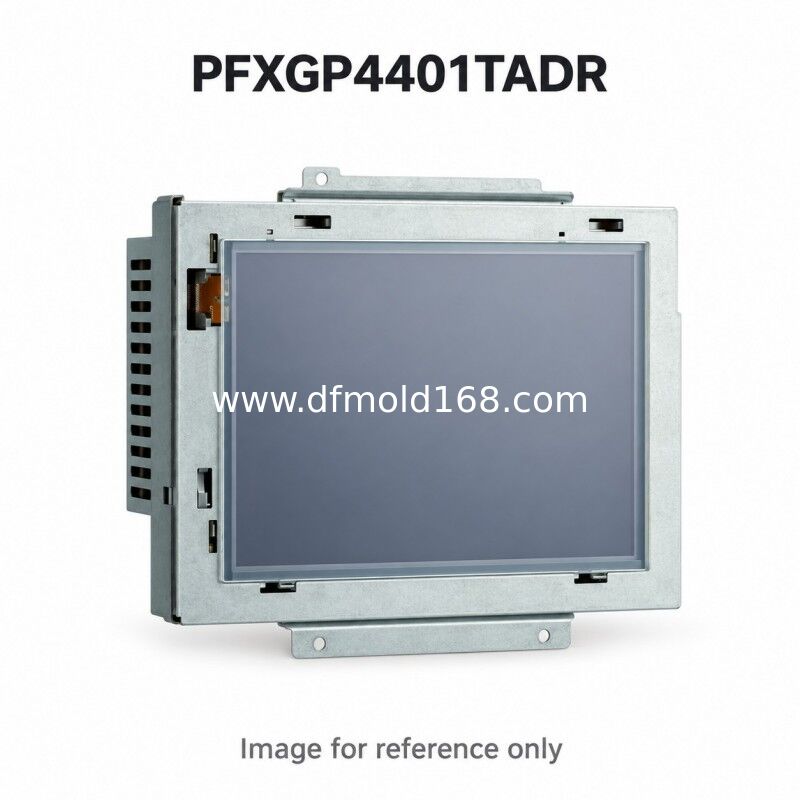

PFXGP4401TADR 7.5 Inch Rear Mount HMI 24VDC

Parameters

Product Description

PFXGP4401TADR is a 7.5-inch touchscreen operator panel with 640 x 480 pixels for configured machine screens, operating values and operator settings. The rear mount structure is designed to sit behind the machine panel. Its 7.5-inch VGA display uses analog touch. Confirm the standard or flat mounting arrangement, brackets and panel drawing before preparing the cabinet. Check the project backup, controller communication driver and cabinet dimensions before ordering. Supply of the hardware does not automatically include the machine program, engineering software license or commissioning.

Supply and Quotation

Request a quotation for PFXGP4401TADR with quantity, destination and required arrival date. Send model-label and connector photos when sourcing a spare. We will confirm the offered condition, hardware revision, availability, included accessories and delivery terms in the quotation. Software licenses and machine programs are included only when expressly stated.

Compatibility

Match the rear mount construction, mounting drawing, power input and project requirements. Confirm the overlay and fasteners separately. Check the project backup, software and firmware versions before planning transfer or commissioning.

FAQ

1. Can it use a standard front mount panel opening?
   Do not assume the openings or fasteners are interchangeable. This is a rear mount model. Use its installation drawing for the chosen standard or flat mounting arrangement and confirm the panel thickness and bracket positions.
2. Which communication connections are provided?
   COM1: RS-232C, D-Sub 9 male. COM2: RS-422/485, D-Sub 9 male. One 10/100 Mbps Ethernet port and USB Type A and Mini-B ports are fitted. Confirm the actual cable pinout before connection.
3. What memory and removable storage are available?
   Application Flash is 32 MB, including the logic program area; data backup SRAM is 320 KB. One SD slot is fitted. Agree the card and its contents separately.
4. How do I request a price for PFXGP4401TADR?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photos and any deadline. Price and availability are confirmed for the specific offered unit.
5. Will the machine program already be installed?
   Confirm access to the project backup, passwords and required software before purchase. Hardware supply does not establish that your application is loaded. Agree any transfer or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching model-label and connector photos, the accessory list and an agreed inspection scope. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
