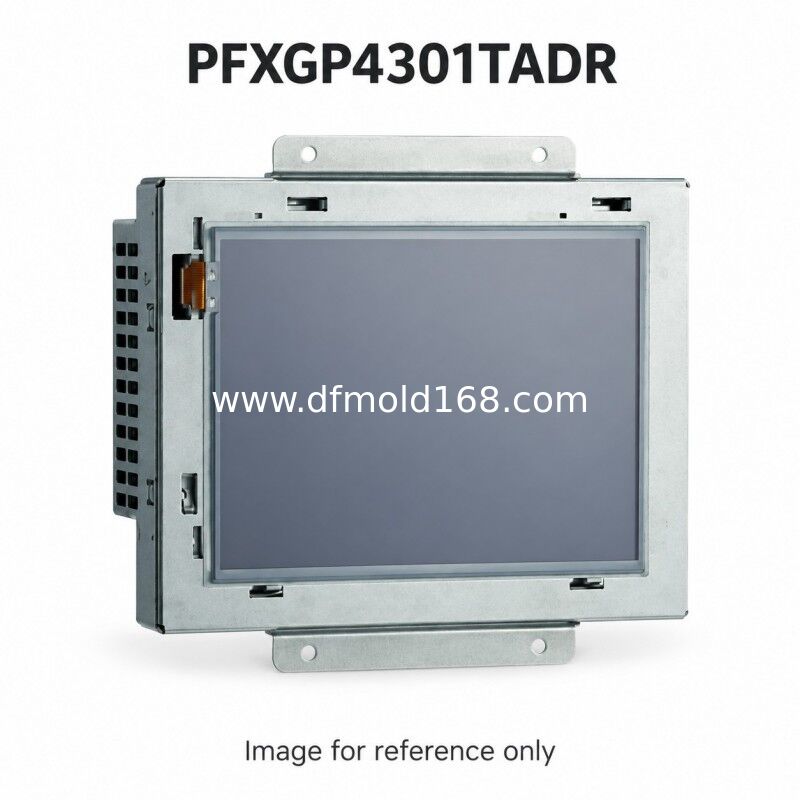

PFXGP4301TADR 5.7 Inch Rear Mount HMI 24VDC

Parameters

Product Description

PFXGP4301TADR is a 5.7-inch touchscreen operator panel with 320 x 240 pixels for configured machine screens, operating values and operator settings. This 5.7-inch rear mount panel provides a 320 x 240 display, 16 MB of application Flash and an SD slot. It suits layouts designed around a panel-mounted display area with the unit secured from behind. Check the project backup, controller communication driver and cabinet dimensions before ordering. Supply of the hardware does not automatically include the machine program, engineering software license or commissioning.

Supply and Quotation

Request a quotation for PFXGP4301TADR with quantity, destination and required arrival date. Send model-label and connector photos when sourcing a spare. We will confirm the offered condition, hardware revision, availability, included accessories and delivery terms in the quotation. Software licenses and machine programs are included only when expressly stated.

Compatibility

Match the rear mount construction, mounting drawing, power input and project requirements. Confirm the overlay and fasteners separately. Check the project backup, software and firmware versions before planning transfer or commissioning.

FAQ

1. What differentiates this 5.7 inch rear mount reference?
   The TADR suffix identifies the rear mount construction. The display is 5.7 inches with 320 x 240 pixels. Use the rear mount drawings for the cabinet opening and fasteners; the ordinary front mount arrangement is different.
2. Which communication connections are provided?
   COM1: RS-232C, D-Sub 9 male. COM2: RS-422/485, D-Sub 9 male. One 10/100 Mbps Ethernet port and USB Type A and Mini-B ports are fitted. Confirm the actual cable pinout before connection.
3. What memory and removable storage are available?
   Application Flash is 16 MB, including the logic program area; data backup SRAM is 320 KB. One SD slot is fitted. Agree the card and its contents separately.
4. How do I request a price for PFXGP4301TADR?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photos and any deadline. Price and availability are confirmed for the specific offered unit.
5. Will the machine program already be installed?
   Confirm access to the project backup, passwords and required software before purchase. Hardware supply does not establish that your application is loaded. Agree any transfer or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching model-label and connector photos, the accessory list and an agreed inspection scope. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
