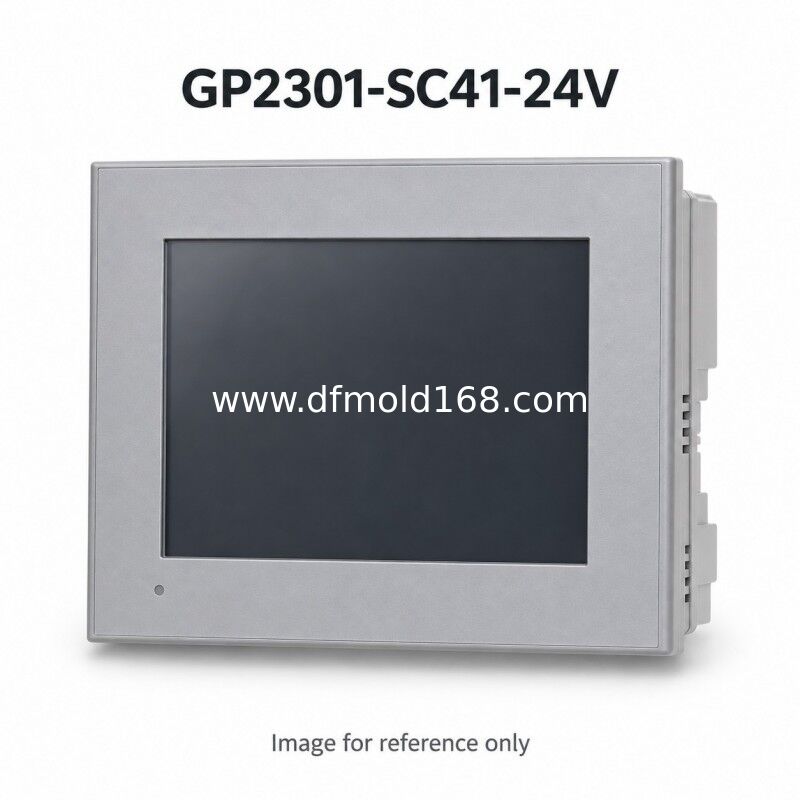

GP2301-SC41-24V 5.7 Inch STN HMI 320x240 24VDC

Parameters

Product Description

The GP2301-SC41-24V is a 5.7-inch STN color HMI with 320 x 240 resolution and a 24 V DC supply. It has one main RS-232C/RS-422 serial interface, a dedicated tool connector and a CompactFlash slot. This reference has no built-in Ethernet or secondary serial port. When sourcing a spare, match the full model, communication wiring and panel opening. Confirm the hardware revision and original project format before transfer. Send label and connector photos so the offered condition, installed options and included items can be checked against the machine.

Supply and Quotation

Request a quotation for GP2301-SC41-24V with quantity, destination and required arrival date. Send model-label, revision and connector photos when sourcing a spare. We will confirm the offered condition, availability, installed options, included accessories and delivery terms in the quotation. Software licenses, transfer cables, memory cards and machine programs require separate confirmation.

Compatibility

Match the full model, power rating, communication wiring and panel opening. Confirm the original project format, matching legacy engineering software, passwords and transfer method. Conversion to a newer panel is a separate engineering task and requires functional verification.

FAQ

1. Can it use a built-in Ethernet connection?
   No. This reference has no built-in Ethernet interface. Confirm the installed controller connection and project-transfer method. Do not copy the Ethernet specification from GP2300-SC41-24V.
2. What display technology and color capability are specified?
   It uses an STN color LCD with 64 colors and a three-speed blink function. Confirm the SC reference, display condition and project target; the LG and TC versions use different display technologies.
3. What installation dimensions should be checked?
   The nominal opening is 156 x 123.5 mm, with +1/-0 mm tolerance on each dimension. External dimensions are 171 x 138 x 60 mm. Use the model-specific drawing to confirm panel thickness, corner radii, gasket, fasteners and cable clearance.
4. How do I request a price for GP2301-SC41-24V?
   Send the full reference, quantity, preferred condition and delivery destination. Include nameplate and revision photos and any deadline. Price and availability are confirmed for the specific offered unit.
5. Will the original machine program be included?
   Confirm access to the project backup, passwords and compatible legacy software before purchase. Hardware supply does not establish that your application is loaded. Agree any transfer, recovery or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching label and connector photos, an accessory list and an agreed inspection scope covering display and touch response. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
