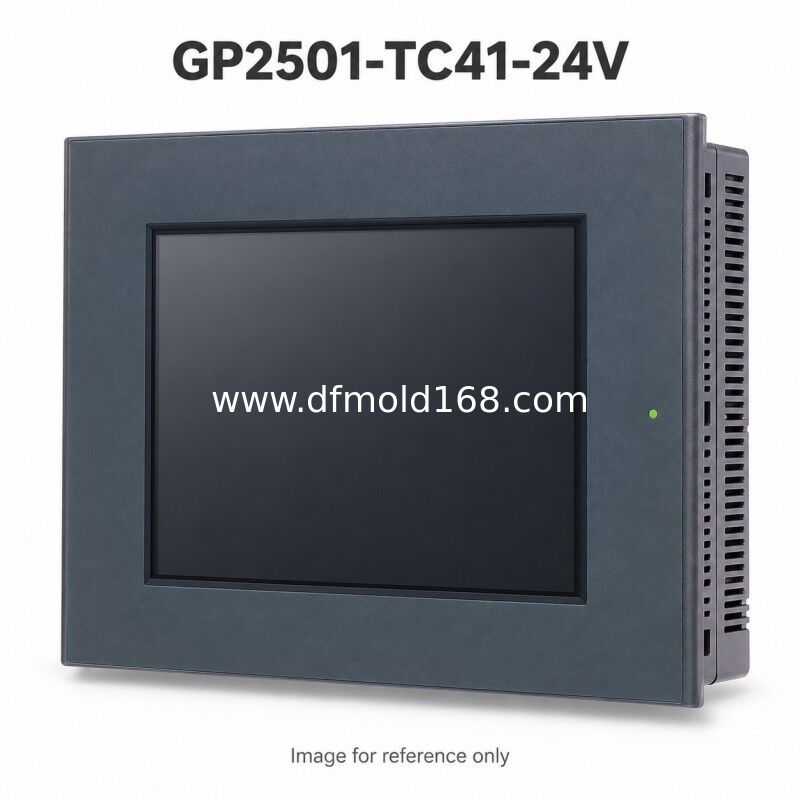

GP2501-TC41-24V 10.4 Inch TFT HMI 640x480 24VDC

Parameters

Product Description

The GP2501-TC41-24V is a 10.4-inch TFT color HMI with 640 x 480 resolution and a 24 V DC supply. It includes a main RS-232C/RS-422 interface, a dedicated tool connector and a CompactFlash slot. Its 2 MB application memory and absence of built-in Ethernet distinguish it from the higher-connectivity reference. When sourcing a spare, match the full model, communication wiring and panel opening. Confirm the hardware revision and original project format before transfer. Send label and connector photos so the offered condition, installed options and included items can be checked against the machine.

Supply and Quotation

Request a quotation for GP2501-TC41-24V with quantity, destination and required arrival date. Send model-label, revision and connector photos when sourcing a spare. We will confirm the offered condition, availability, installed options, included accessories and delivery terms in the quotation. Software licenses, transfer cables, memory cards and machine programs require separate confirmation.

Compatibility

Match the full model, power rating, communication wiring and panel opening. Confirm the original project format, matching legacy engineering software, passwords and transfer method. Conversion to a newer panel is a separate engineering task and requires functional verification.

FAQ

1. Is this the same power version as GP2501-TC11?
   No. GP2501-TC41-24V requires 24 V DC. GP2501-TC11 is the separate AC-powered reference. Preserve the complete TC41-24V suffix and verify the installed power supply and terminals.
2. How does it differ from GP2500-TC41-24V?
   This model has 2 MB application memory and no built-in Ethernet or expansion serial port. GP2500-TC41-24V has 4 MB application memory and includes those additional communication interfaces.
3. What installation dimensions should be checked?
   The nominal opening is 301.5 x 227.5 mm, with +1/-0 mm tolerance on each dimension. External dimensions are 317 x 243 x 58 mm. Use the model-specific drawing to confirm panel thickness, corner radii, gasket, fasteners and cable clearance.
4. How do I request a price for GP2501-TC41-24V?
   Send the full reference, quantity, preferred condition and delivery destination. Include nameplate and revision photos and any deadline. Price and availability are confirmed for the specific offered unit.
5. Will the original machine program be included?
   Confirm access to the project backup, passwords and compatible legacy software before purchase. Hardware supply does not establish that your application is loaded. Agree any transfer, recovery or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching label and connector photos, an accessory list and an agreed inspection scope covering display and touch response. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
