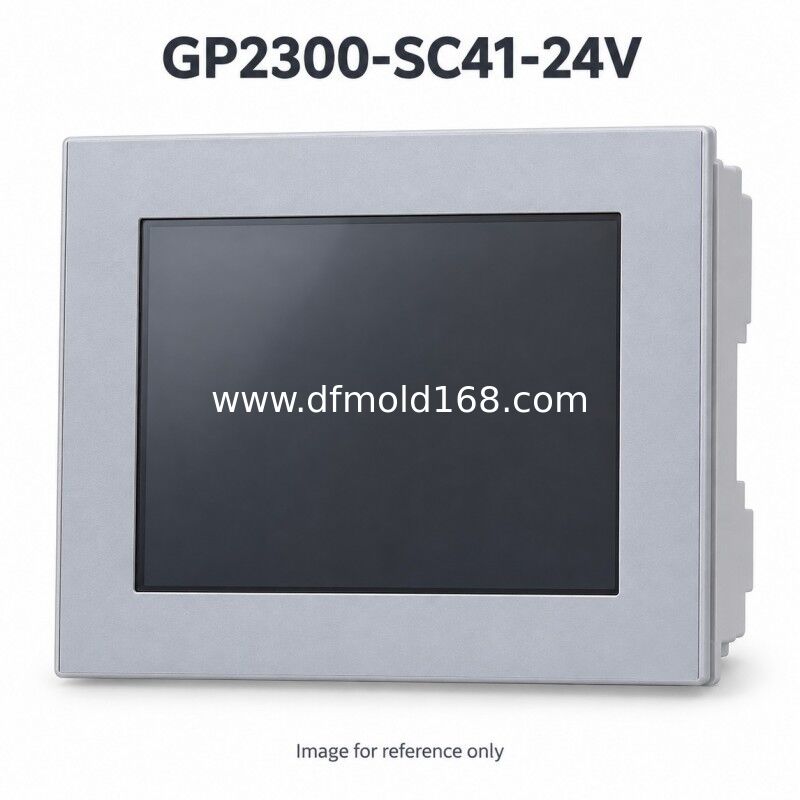

GP2300-SC41-24V 5.7 Inch STN HMI 320x240 24VDC

Parameters

Product Description

The GP2300-SC41-24V is a 5.7-inch STN color operator panel with 320 x 240 resolution and 24 V DC power. Its communication hardware includes 10BASE-T Ethernet, a main RS-232C/RS-422 interface and an expansion RS-232C port. The panel has 2 MB application memory and 256 KB battery-backed SRAM. The STN display supports 64 colors with a three-speed blink function for compatible project screens. When sourcing a spare, verify the SC reference, communication wiring and original application. Include photographs of the powered display and rear label so screen condition and hardware configuration can be reviewed.

Supply and Quotation

Request a quotation for GP2300-SC41-24V with quantity, destination and required arrival date. Send model-label, revision and connector photos when sourcing a spare. We will confirm the offered condition, availability, installed options, included accessories and delivery terms in the quotation. Software licenses, transfer cables, memory cards and machine programs require separate confirmation.

Compatibility

Match the full GP2300-SC41-24V reference, power rating, serial pinout and panel opening. Confirm the original project format, compatible legacy engineering software, passwords and transfer method. A move to a different panel requires a separate compatibility review and functional checks.

FAQ

1. Is the SC display equivalent to the TC display?
   SC identifies an STN color LCD with 64 colors and a three-speed blink function. TC identifies a TFT color LCD. Preserve the installed display reference and check how the original project uses color and blinking.
2. Does the Ethernet interface support 100 Mbps?
   The built-in interface is 10BASE-T, rated at 10 Mbps. Confirm that the connected network equipment supports this link speed and that the controller protocol and network settings match the existing application.
3. What installation dimensions should be checked?
   The nominal opening is 156 x 123.5 mm, with +1/-0 mm tolerance on each dimension. External dimensions are 171 x 138 x 60 mm. Confirm panel thickness, corner radii, gasket, fasteners and cable clearance against the model-specific drawing.
4. How do I request a price for GP2300-SC41-24V?
   Send the full reference, quantity, preferred condition and delivery destination. Include nameplate and revision photos and any deadline. Price and availability are confirmed for the specific offered unit.
5. Will the original machine program be included?
   Confirm access to the project backup, passwords and compatible legacy software before purchase. Hardware supply does not establish that your application is loaded. Agree any transfer, recovery or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching label and connector photos, an accessory list and an agreed inspection scope covering display and touch response. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
