AST3501-T1-D24 10.4 Inch TFT HMI 640x480 24VDC

Parameters

Product Description

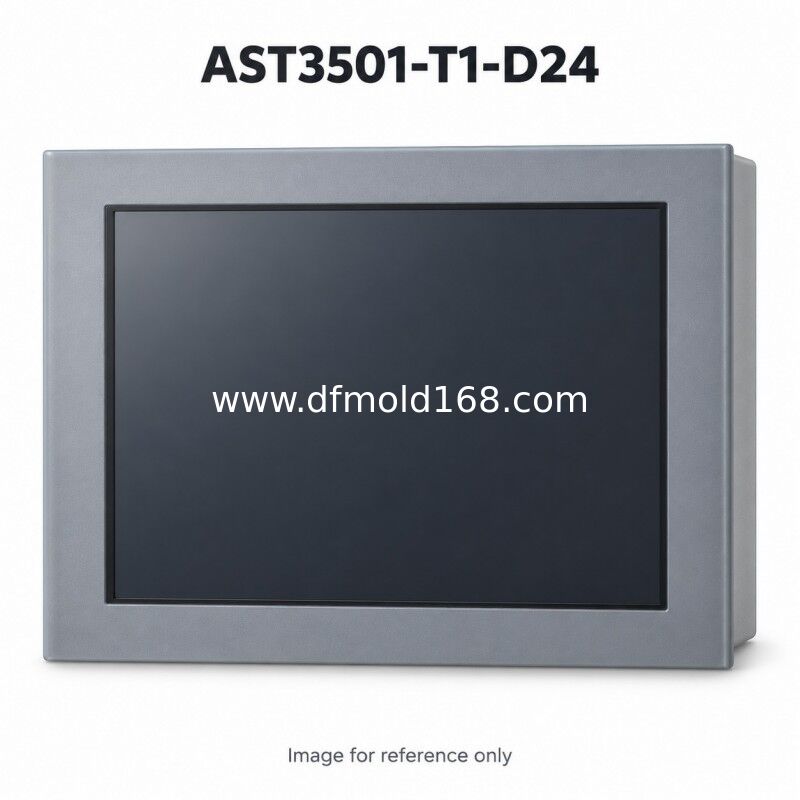

The AST3501-T1-D24 is a 10.4-inch TFT color HMI with 640 x 480 resolution and 24 V DC input. It provides an RS-232C COM1 port, an RS-422/485 COM2 port, a USB Type A host connection and a CompactFlash slot. Application memory is 6 MB, with 320 KB backup SRAM. Its nominal panel opening is 259 x 201 mm, which should be checked directly against the cabinet. For an existing installation, verify the full DC reference, screen project and serial connections. Confirm the offered condition and whether the required card, cable and mounting accessories are included.

Supply and Quotation

Request a quotation for AST3501-T1-D24 with quantity, destination and required arrival date. Send model-label, revision and connector photos when sourcing a spare. We will confirm the offered condition, availability, installed options, included accessories and delivery terms in the quotation. Software licenses, transfer cables, memory cards and machine programs require separate confirmation.

Compatibility

Use a project and engineering-software version that support AST3501-T1-D24. Verify the display mode, controller driver, serial pinout, supply and mounting dimensions. Confirm the supported transfer cable and access to the original backup. Changing the target panel requires a project review and functional testing.

FAQ

1. Does it have a built-in Ethernet port?
   No. The built-in controller connections are COM1 RS-232C and COM2 RS-422/485. Check the existing serial driver and cable pinout. Do not add an Ethernet claim based on another panel with a similar screen size.
2. Can AST3501-T1-AF use the same power connection?
   AST3501-T1-D24 requires 24 V DC. AST3501-T1-AF is the 100 to 240 V AC reference. The supply version and terminals must match the machine; retain the complete suffix in the order.
3. What dimensions should be checked before purchase?
   The nominal panel opening is 259 x 201 mm and external dimensions are 270.5 x 212.5 x 57 mm. Confirm the installation drawing for opening tolerances, panel thickness, gasket, fasteners and cable clearance before ordering or modifying a cabinet.
4. How do I request a price for AST3501-T1-D24?
   Send the full reference, quantity, preferred condition and delivery destination. Include nameplate and revision photos and any deadline. Price and availability are confirmed for the specific offered unit.
5. Will the original machine program be included?
   Confirm access to the project backup, passwords and compatible legacy software before purchase. Hardware supply does not establish that your application is loaded. Agree any transfer, recovery or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching label and connector photos, an accessory list and an agreed inspection scope covering display and touch response. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
