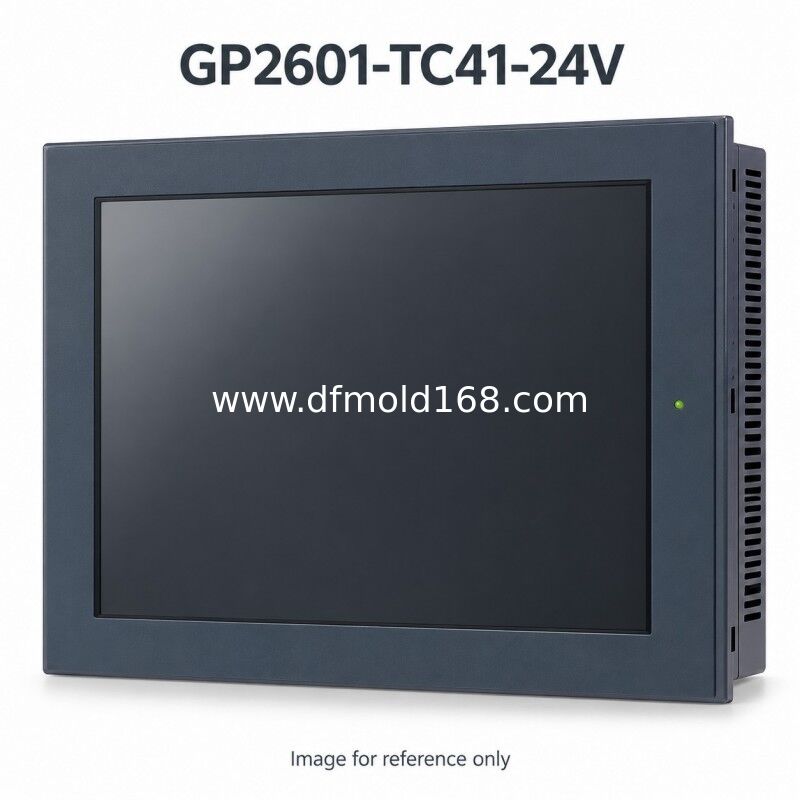

GP2601-TC41-24V 12.1 Inch TFT HMI 800x600 24VDC

Parameters

Product Description

The GP2601-TC41-24V is a 12.1-inch TFT color panel with 800 x 600 resolution and 24 V DC input. It combines 4 MB application memory with 128 KB battery-backed SRAM and a CompactFlash slot. Its main RS-232C/RS-422 connection uses a female D-Sub 25 connector; built-in Ethernet and an expansion serial port are absent. This model is intended for a compatible screen project using its specific communication arrangement and 40 x 30 touch-key grid. Before ordering a spare, match the complete DC suffix, project backup, panel cutout and connector wiring to the existing installation.

Supply and Quotation

Request a quotation for GP2601-TC41-24V with quantity, destination and required arrival date. Send model-label, revision and connector photos when sourcing a spare. We will confirm the offered condition, availability, installed options, included accessories and delivery terms in the quotation. Software licenses, transfer cables, memory cards and machine programs require separate confirmation.

Compatibility

Match the full GP2601-TC41-24V reference, power rating, serial pinout and panel opening. Confirm the original project format, compatible legacy engineering software, passwords and transfer method. A move to a different panel requires a separate compatibility review and functional checks.

FAQ

1. Is this interchangeable with GP2601-TC11 on the same supply?
   No. GP2601-TC41-24V requires 24 V DC, while GP2601-TC11 is an AC-powered reference. Match the full model, nameplate and power connection; do not select by screen size alone.
2. Does it include Ethernet like GP2600-TC41-24V?
   No built-in Ethernet or secondary serial port is provided. GP2600-TC41-24V includes those additional interfaces. Check whether the existing machine needs either interface and verify the source project before choosing a spare.
3. What installation dimensions should be checked?
   The nominal opening is 301.5 x 227.5 mm, with +1/-0 mm tolerance on each dimension. External dimensions are 317 x 243 x 58 mm. Confirm panel thickness, corner radii, gasket, fasteners and cable clearance against the model-specific drawing.
4. How do I request a price for GP2601-TC41-24V?
   Send the full reference, quantity, preferred condition and delivery destination. Include nameplate and revision photos and any deadline. Price and availability are confirmed for the specific offered unit.
5. Will the original machine program be included?
   Confirm access to the project backup, passwords and compatible legacy software before purchase. Hardware supply does not establish that your application is loaded. Agree any transfer, recovery or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching label and connector photos, an accessory list and an agreed inspection scope covering display and touch response. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
