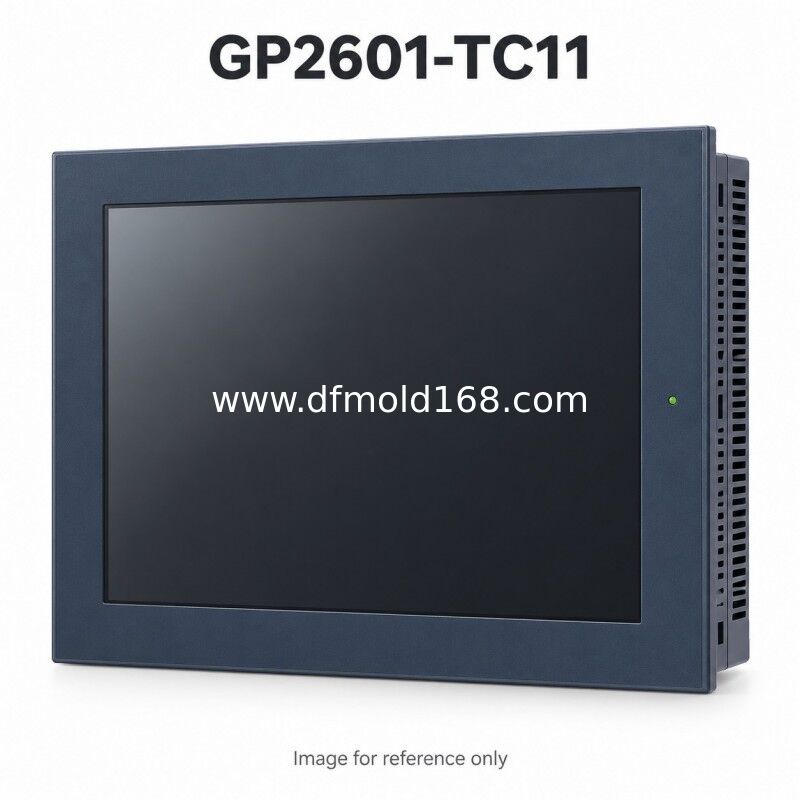

GP2601-TC11 12.1 Inch TFT HMI 800x600 AC Power

Parameters

Product Description

The GP2601-TC11 is an AC-powered 12.1-inch TFT color HMI with 800 x 600 resolution. It provides 4 MB application memory, 128 KB battery-backed SRAM, a main RS-232C/RS-422 interface and a CompactFlash slot. Built-in Ethernet and an expansion serial port are not provided. Its AC voltage rating depends on the revision marking, so request both the model label and revision photograph before confirming an offer. Check the 40 x 30 touch-key grid and original screen project as well as the cabinet opening. Power and communication details must match the installed machine.

Supply and Quotation

Request a quotation for GP2601-TC11 with quantity, destination and required arrival date. Send model-label, revision and connector photos when sourcing a spare. We will confirm the offered condition, availability, installed options, included accessories and delivery terms in the quotation. Software licenses, transfer cables, memory cards and machine programs require separate confirmation.

Compatibility

Match the full GP2601-TC11 reference, power rating, serial pinout and panel opening. Confirm the original project format, compatible legacy engineering software, passwords and transfer method. A move to a different panel requires a separate compatibility review and functional checks.

FAQ

1. Does every GP2601-TC11 accept 100 to 240 V AC?
   No. Units without Rev. 3 marked are rated for 100 V AC. Units with Rev. 3 marked are rated for 100 to 240 V AC. Confirm the nameplate and revision before matching the offered panel to the supply.
2. How does it differ from GP2600-TC11?
   Both references have a 12.1-inch 800 x 600 TFT display. GP2601-TC11 has no built-in Ethernet or expansion serial port and has 128 KB backup SRAM. GP2600-TC11 includes those interfaces and has 256 KB backup SRAM.
3. What installation dimensions should be checked?
   The nominal opening is 301.5 x 227.5 mm, with +1/-0 mm tolerance on each dimension. External dimensions are 317 x 243 x 58 mm. Confirm panel thickness, corner radii, gasket, fasteners and cable clearance against the model-specific drawing.
4. How do I request a price for GP2601-TC11?
   Send the full reference, quantity, preferred condition and delivery destination. Include nameplate and revision photos and any deadline. Price and availability are confirmed for the specific offered unit.
5. Will the original machine program be included?
   Confirm access to the project backup, passwords and compatible legacy software before purchase. Hardware supply does not establish that your application is loaded. Agree any transfer, recovery or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching label and connector photos, an accessory list and an agreed inspection scope covering display and touch response. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
