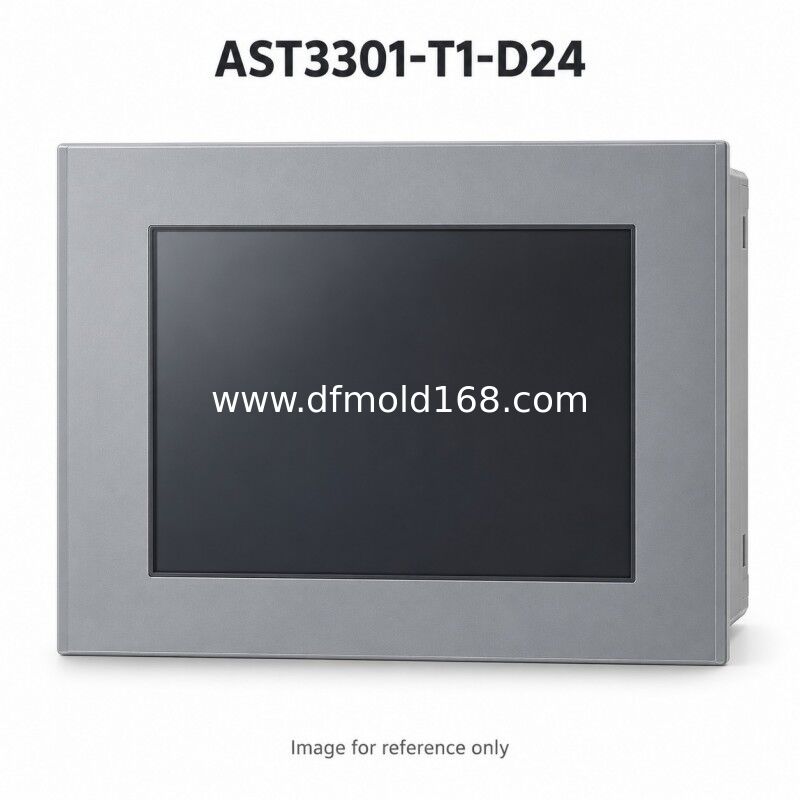

AST3301-T1-D24 5.7 Inch TFT HMI 320x240 24VDC

Parameters

Product Description

The AST3301-T1-D24 is a 5.7-inch TFT color operator panel with 320 x 240 resolution and 24 V DC power. Its analog resistive touchscreen supports the configured machine screens, while 6 MB application memory and 320 KB backup SRAM hold project and retained data. The hardware provides COM1 RS-232C, COM2 RS-422/485 and a USB Type A host port, with no built-in Ethernet. Confirm that the engineering software version supports this exact target model before transfer. Check the project backup, display color settings, serial wiring and mounting opening when comparing the offered unit with the installed panel.

Supply and Quotation

Request a quotation for AST3301-T1-D24 with quantity, destination and required arrival date. Send model-label, revision and connector photos when sourcing a spare. We will confirm the offered condition, availability, installed options, included accessories and delivery terms in the quotation. Software licenses, transfer cables, memory cards and machine programs require separate confirmation.

Compatibility

Use a project and engineering-software version that support AST3301-T1-D24. Verify the display mode, controller driver, serial pinout, supply and mounting dimensions. Confirm the supported transfer cable and access to the original backup. Changing the target panel requires a project review and functional testing.

FAQ

1. Is this the same display type as AST3301-S1-D24?
   No. This T1 reference uses a TFT color LCD; the S1 reference uses an STN color LCD. Both have 320 x 240 resolution. Preserve the full model when checking project settings and comparing offers.
2. Can a standard USB Type A cable be assumed suitable for transfer?
   No. The panel has a USB Type A host interface, so use the supported transfer cable and matching driver for the engineering setup. It has no USB Mini-B device port. Confirm the exact transfer method before purchase.
3. What dimensions should be checked before purchase?
   The nominal panel opening is 156 x 123.5 mm and external dimensions are 167.5 x 135 x 59.5 mm. Confirm the installation drawing for opening tolerances, panel thickness, gasket, fasteners and cable clearance before ordering or modifying a cabinet.
4. How do I request a price for AST3301-T1-D24?
   Send the full reference, quantity, preferred condition and delivery destination. Include nameplate and revision photos and any deadline. Price and availability are confirmed for the specific offered unit.
5. Will the original machine program be included?
   Confirm access to the project backup, passwords and compatible legacy software before purchase. Hardware supply does not establish that your application is loaded. Agree any transfer, recovery or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching label and connector photos, an accessory list and an agreed inspection scope covering display and touch response. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
