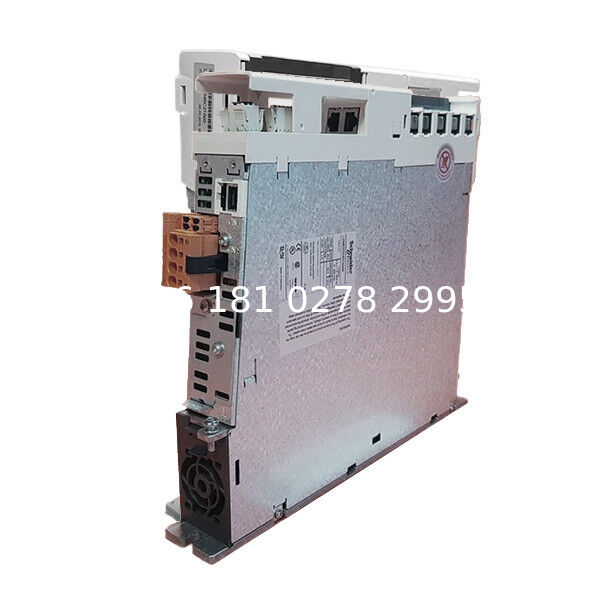

The Schneider Electric LXM62DU60C21000 is a Lexium 62 single servo drive used in PacDrive 3 modular automation systems. It is designed to control one servo axis in high-speed industrial machines requiring accurate positioning, synchronized motion, and reliable drive communication.

This model provides a 6A drive rating and uses a 24VDC control supply. It supports SERCOS III communication for fast real-time connection within PacDrive 3 automation architectures. The integrated STO safety function helps support safer machine operation when correctly configured within the overall safety system.

The LXM62DU60C21000 includes 2 digital inputs, 2 touch probe inputs, and 2 digital outputs, allowing useful signal integration for machine control, feedback, triggering, and diagnostic tasks. Its compact 44mm wide housing saves cabinet space, while the Lexium 62 modular design allows multiple drives to be installed together with shared power supply and DC link architecture.

This drive is commonly used in packaging machinery, robotic handling systems, printing equipment, material handling machines, electronic assembly equipment, labeling equipment, and high-speed production lines. It is also suitable for machine repair, servo drive replacement, and spare parts supply for existing PacDrive 3 systems.

For replacement applications, please confirm the complete model number LXM62DU60C21000, the existing PacDrive controller, power supply module, motor model, cable type, SERCOS configuration, and safety function settings before ordering. Similar Lexium 62 drives may have different current ratings, axis types, safety options, and accessory configurations.

Dengfeng supplies Schneider Electric PacDrive 3 servo drives, Lexium 62 modules, servo motors, PLC modules, control units, operator panels, industrial control boards, and automation spare parts for machine repair and production line maintenance. Before shipment, we can check the model label, connector condition, housing appearance, cooling area, and packaging according to your request.

Key Features

• Schneider Electric LXM62DU60C21000 Lexium 62 single servo drive
• PacDrive 3 modular automation system component
• 6A rated current for one servo axis
• 24VDC control supply
• SERCOS III communication interface
• STO safe torque off safety function
• 2 digital inputs, 2 touch probe inputs, and 2 digital outputs
• Compact 270 × 44 × 310mm housing
• IP20 protection for electrical cabinet installation
• Accessory kit included
• Suitable for packaging, robotics, material handling, and production line automation
• Useful for servo drive repair, replacement, retrofit, and spare parts supply

Typical Applications

The Schneider Electric LXM62DU60C21000 servo drive can be used in:

• PacDrive 3 automation systems
• Packaging machinery
• Robotic handling systems
• Material handling equipment
• Printing and labeling machines
• Electronic assembly equipment
• Conveyor and transfer systems
• High-speed production lines
• Servo axis replacement projects
• Industrial automation maintenance

FAQ

Q1: What is Schneider Electric LXM62DU60C21000?
A1: It is a PacDrive 3 Lexium 62 single servo drive used for controlling one servo axis in modular industrial automation systems.

Q2: What is the rated current of this drive?
A2: The rated current is 6A.

Q3: What communication interface does it use?
A3: It uses SERCOS III communication for real-time drive system networking.

Q4: Does this drive support safety function?
A4: Yes. It supports STO, Safe Torque Off, when correctly configured in a compatible safety system.

Q5: What control voltage does it require?
A5: The control supply is 24VDC.

Q6: How many I/O points does this model provide?
A6: It provides 2 digital inputs, 2 touch probe inputs, and 2 digital outputs.

Q7: What motors can be used with this drive?
A7: It can be used with compatible SH3, MH3, and SHS servo motors, depending on system configuration.

Q8: Can LXM62DU60C21000 be used as a replacement drive?
A8: Yes. It is commonly used for PacDrive 3 servo drive replacement. Please confirm the original drive label, controller, motor, cable type, and safety configuration before ordering.

Q9: What should I check before purchasing?
A9: Please check the full model number, rated current, motor model, power supply module, SERCOS network configuration, safety function requirements, and cabinet installation space.

Q10: Do you inspect the drive before shipment?
A10: Yes. We can check the model label, connector condition, housing appearance, cooling area, and package condition before shipment.
