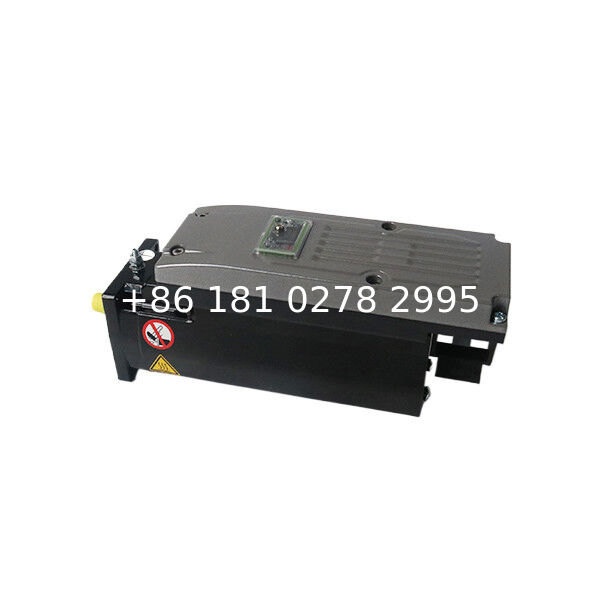

The Schneider Electric ILM0701P12F0000 is a Lexium 62 ILM integrated servo motor designed for PacDrive 3 automation systems. It combines servo motor technology with integrated drive functionality, making it suitable for compact machine axes, distributed motion control, and modular automation systems.

This model provides 1.1Nm standstill torque, 6000rpm rated speed, and 0.31kW / 310W output power. The ILM0701P12F0000 is designed with a keyed shaft, absolute multiturn feedback, and a holding brake. It is suitable for applications that require reliable position feedback, compact installation, stable servo control, and axis holding support when the machine stops.

The keyed shaft design helps improve mechanical torque transmission when the motor is connected to couplings, gearboxes, rotary tables, indexing units, or other mechanical transmission components. The multiturn feedback helps the control system track position across multiple revolutions, which is useful for machines that need repeatable motion and reduced homing time after power cycling.

Because this version includes a brake, it can be used in machine axes where holding support is required. However, the actual brake function, load-holding requirement, safety design, and wiring method should always be checked according to the complete machine system. The brake should not be assumed as the only safety device for vertical axes or suspended loads without machine-level verification.

The ILM0701P12F0000 is commonly used in packaging machinery, material handling equipment, conveyor systems, feeder axes, rotary indexing equipment, assembly machines, labeling machines, printing equipment, and modular production lines using Schneider Electric PacDrive 3 and Lexium 62 ILM architecture.

For replacement applications, the complete model number ILM0701P12F0000 must be checked carefully. Similar Lexium 62 ILM motors may have different shaft types, feedback types, brake options, motor stacks, cable interfaces, and system compatibility. Before ordering, please confirm the original motor label, machine controller type, cable connection, brake wiring, axis function, and installation position.

Dengfeng supplies Schneider Electric Lexium 62 ILM integrated servo motors, Lexium 62 servo drives, connection modules, power supply modules, servo cables, PLC modules, HMI panels, sensors, industrial control boards, and automation spare parts for machine repair and production line maintenance. Before shipment, we can check the model label, connector condition, housing appearance, shaft condition, brake condition, and packaging according to your request.

Key Features

• Schneider Electric ILM0701P12F0000 Lexium 62 ILM integrated servo motor
• Designed for PacDrive 3 automation systems
• Integrated servo motor and drive architecture
• 1.1Nm standstill torque
• 6000rpm rated speed
• 0.31kW / 310W rated power
• Keyed shaft for stable mechanical torque transmission
• Absolute multiturn feedback
• With holding brake
• 70mm motor flange size
• Suitable for compact machine axes and distributed motion control
• Useful for replacement, repair, retrofit, and spare parts supply

Typical Applications

The Schneider Electric ILM0701P12F0000 integrated servo motor can be used in:

• PacDrive 3 automation systems
• Lexium 62 ILM motion control systems
• Packaging machinery
• Rotary indexing equipment
• Conveyor and feeder axes
• Material handling systems
• Labeling and printing machines
• Assembly automation
• Modular production lines
• Compact servo positioning axes
• Machine retrofit projects
• Spare parts replacement for automation repair

FAQ

Q1: What is Schneider Electric ILM0701P12F0000?
A1: It is a Lexium 62 ILM integrated servo motor used in PacDrive 3 automation systems for compact servo axis control and distributed motion control.

Q2: Is ILM0701P12F0000 a standard servo motor?
A2: It is not only a standard servo motor. It is an integrated servo motor / integrated servo drive motor in the Lexium 62 ILM family.

Q3: What is the rated speed of ILM0701P12F0000?
A3: The rated speed is 6000rpm.

Q4: What is the torque rating of this motor?
A4: The standstill torque is 1.1Nm.

Q5: What is the rated power of ILM0701P12F0000?
A5: The rated power is 0.31kW, also listed as 310W.

Q6: Does ILM0701P12F0000 have a holding brake?
A6: Yes. This version is supplied with a holding brake. Please check the brake wiring, load-holding requirement, and machine safety design before replacement.

Q7: What shaft type does ILM0701P12F0000 use?
A7: It uses a keyed shaft / parallel key shaft, which helps provide stable torque transmission when connected to couplings, gearboxes, pulleys, or indexing mechanisms.

Q8: What feedback type does this motor use?
A8: It uses absolute multiturn feedback, suitable for applications requiring accurate position feedback and repeatable axis positioning.

Q9: What is the difference between ILM0701P12F0000 and ILM0701P12A0000?
A9: ILM0701P12F0000 is the version with brake, while ILM0701P12A0000 is commonly listed as the version without brake. The full model code should always be checked before replacement.

Q10: Can ILM0701P12F0000 replace other Lexium 62 ILM motors?
A10: It can replace the same model when the shaft type, feedback type, brake option, cable connection, controller system, and machine setup match. Similar-looking ILM motors may not be interchangeable.

Q11: What should I check before ordering?
A11: Please check the original motor label, complete model number, cable connection, brake wiring, feedback type, controller system, installation position, and axis function before ordering.

Q12: Can you help confirm compatibility?
A12: Yes. Please send photos of the original motor nameplate, cable connectors, machine controller, installed axis position, and any alarm information. We can help check whether ILM0701P12F0000 matches your machine requirement.
