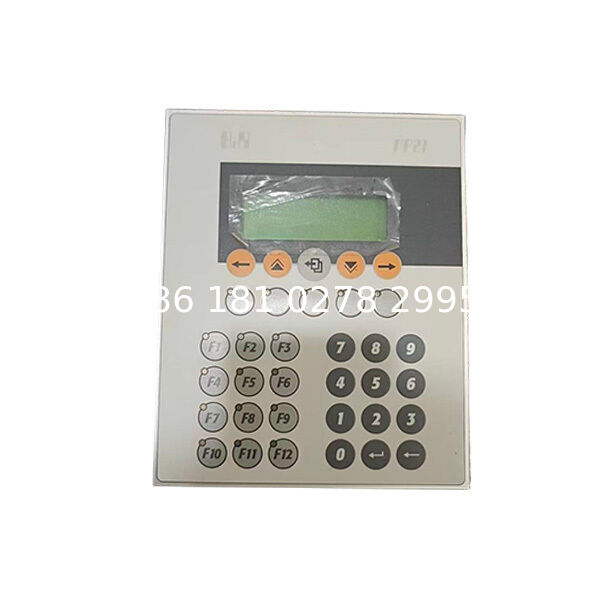

The B&R 4P0420.00-490 is a Power Panel PP21 operator panel with integrated controller functionality. It is used in older B&R machine control systems where operation, visualization, PLC control, digital I/O and expansion module connection are integrated in one compact panel device.

This model is equipped with a 4 x 20 character black and white LCD display with backlight and 34 membrane function keys. It includes a System 2003 compatible CPU, 700 kB SRAM, 1.4 MB FlashPROM, one PCMCIA slot, one RS232 interface, one electrically isolated CAN interface, six slots for System 2003 screw-in modules, ten 24VDC digital inputs and eight 24VDC digital outputs rated at 0.4A. The unit uses 24VDC supply voltage and provides IP65 front protection when installed correctly.

The 4P0420.00-490 should be described as a Power Panel PP21, operator panel with controller, or integrated machine control panel. It should not be described as a simple power panel only, power distribution unit, servo drive, inverter module, power supply, or standard touch screen HMI. This product combines panel operation and controller functions, so the machine program, memory card, wiring and installed screw-in modules must be considered before replacement.

This Power Panel PP21 is commonly used in packaging machinery, filling equipment, textile machines, printing machines, material handling equipment, small and medium production machines, and older machine control systems using B&R System 2003 architecture. It is often replaced when the display becomes dim, membrane keys fail, the controller no longer starts, communication fails, I/O does not respond, or the original panel is no longer stable.

For replacement applications, the complete model number 4P0420.00-490 must be checked carefully. Similar Power Panel 15, PP21, PP35 and PP41 devices may have different display types, keypad layouts, controller memory, fieldbus interfaces, I/O configurations, expansion slots, terminal block requirements and machine software. Please do not replace the panel only by appearance or by the Power Panel name.

Before ordering, please confirm the original panel label, display type, keypad layout, PCMCIA memory card, machine software backup, RS232 wiring, CAN wiring, digital I/O wiring, terminal block type, installed screw-in modules and cabinet installation size. TB712 terminal blocks are ordered separately, so please check whether the old terminal blocks can be reused or whether new terminal blocks are required.

Dengfeng supplies B&R Power Panel PP21 units, PP15 panels, PP35 panels, PP41 panels, PP45 panels, Automation Panel units, X20 I/O modules, X67 modules, ACOPOS servo drives, ACOPOSmicro modules, System 2003 screw-in modules, memory cards, terminal blocks, cables and automation spare parts for machine repair and production line maintenance. Before shipment, we can check the model label, display condition, keypad condition, connector condition, terminal area, housing appearance and packaging according to your request.

Key Features

• B&R 4P0420.00-490 Power Panel PP21
• Integrated operator panel and controller in one device
• 4 x 20 character LCD black and white display
• Backlight for display visibility
• 34 membrane function keys
• System 2003 compatible CPU
• 700 kB SRAM and 1.4 MB FlashPROM
• 1 PCMCIA slot
• 1x RS232 interface
• 1x electrically isolated CAN interface
• 6 slots for System 2003 screw-in modules
• 10 digital inputs, 24VDC
• 8 digital outputs, 24VDC, 0.4A
• 24VDC supply voltage
• IP65 front protection
• TB712 terminal blocks ordered separately
• Suitable for replacement, repair, retrofit and spare parts supply

Typical Applications

The B&R 4P0420.00-490 Power Panel PP21 can be used in:

• B&R Power Panel PP21 machine control systems
• System 2003 based machine control systems
• Packaging machinery
• Filling machines
• Textile machinery
• Printing machinery
• Material handling equipment
• Assembly automation
• Small and medium production machines
• Control cabinet front panels
• Operator panel replacement projects
• Machine controller repair projects
• Factory maintenance spare parts

FAQ

Q1: What is B&R 4P0420.00-490?
A1: B&R 4P0420.00-490 is a Power Panel PP21 operator panel with integrated controller functionality.

Q2: Is 4P0420.00-490 only an HMI panel?
A2: No. It is more than a simple HMI panel. It combines operator panel functions with a controller, integrated I/O and expansion module slots.

Q3: What display does this PP21 use?
A3: It uses a black and white LCD display with 4 x 20 character format and backlight.

Q4: How many function keys does this model have?
A4: It has 34 membrane function keys.

Q5: What memory does 4P0420.00-490 have?
A5: It includes 700 kB SRAM and 1.4 MB FlashPROM, with one PCMCIA slot.

Q6: What communication interfaces are available?
A6: It has one RS232 interface and one electrically isolated CAN interface.

Q7: Does this model have built-in I/O?
A7: Yes. It has 10 digital inputs rated 24VDC and 8 digital outputs rated 24VDC 0.4A.

Q8: Does 4P0420.00-490 support expansion modules?
A8: Yes. It has 6 slots for System 2003 screw-in modules.

Q9: What supply voltage does this panel require?
A9: It requires 24VDC supply voltage.

Q10: Are terminal blocks included?
A10: TB712 terminal blocks are ordered separately. Please check whether the old terminal blocks can be reused.

Q11: Can 4P0420.00-490 replace a PP45 panel such as 4PP045.0571-062?
A11: No direct replacement should be made. PP21 and PP45 belong to different Power Panel generations with different display type, controller structure, wiring, software and interface configuration.

Q12: What should I check before ordering?
A12: Please check the original panel label, full model number, PCMCIA memory card, machine program backup, RS232 wiring, CAN wiring, I/O wiring, terminal block type, installed screw-in modules and cabinet cutout size before ordering.

Q13: Can you help confirm compatibility?
A13: Yes. Please send photos of the original panel label, front keypad, rear label, PCMCIA card, terminal area, screw-in modules, wiring and machine startup screen. We can help check whether 4P0420.00-490 matches your replacement requirement.
