6PPT30.043F-20B Power Panel T30 4.3 Inch HMI Terminal

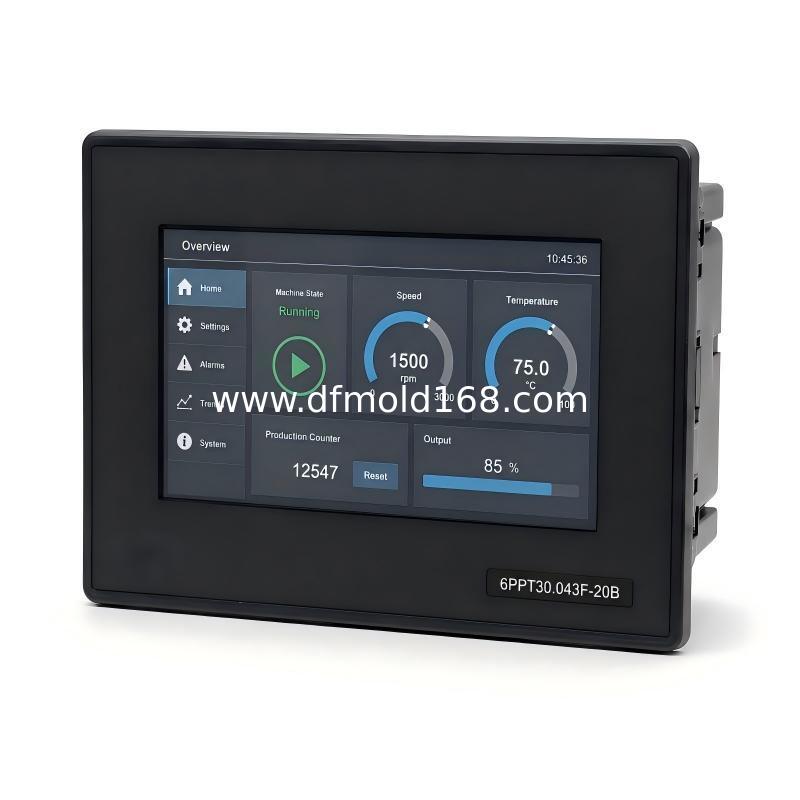

The B&R 6PPT30.043F-20B is a 4.3-inch Power Panel T30 operator terminal with a landscape WQVGA 480 x 272 pixels display and analog resistive touch input. It combines a 600 MHz ARM Cortex-A8 processor, 256 MB DRAM and 512 MB onboard flash with two Fast Ethernet ports and two USB 2.0 interfaces.

This is the smallest landscape-format model in the selected T30 batch. Its 140 x 96 mm front and 5.5 W maximum consumption make it appropriate where panel space is limited, while the dual-port Ethernet switch distinguishes it from basic single-port operator displays.

Key Features

· 4.3-inch WQVGA 480 x 272 pixels TFT color display

· Landscape panel format for compact landscape installations

· Analog resistive touch screen suitable for gloved operation

· Dual 10/100 Mbit/s Ethernet ports with integrated switch

· Integrated VNC client, web browser and service page

· IP65 front protection and wide -20 to 60°C operating range

Typical Applications

· Compact packaging machines

· Local status and setpoint stations

· Small conveyor sections

· Utility skids and auxiliary equipment

· Space-limited cabinet doors

Compatibility Note

This T30 model is an HMI terminal, not a standalone PLC. Confirm the exact order number, panel cutout, screen orientation, hardware revision and installed image before replacement.

FAQ

Q: Is this Power Panel a standalone PLC?

A: No. It is a terminal-design HMI used as a VNC or web client. Machine control must be provided by a compatible controller.

Q: What touch technology does it use?

A: It uses an analog resistive touch screen, which is suitable for industrial operation and can generally be used with gloves or a stylus.

Q: How many Ethernet ports are available?

A: Two 10/100 Mbit/s Ethernet ports are provided through an integrated switch for convenient line wiring.

Q: Does it support both VNC and web visualization?

A: Yes. The terminal includes a VNC client, an embedded web browser and an integrated service page.

Q: How does it differ from the 5.7-inch T30 models?

A: It uses a smaller 4.3-inch 480 x 272 display and a more compact 140 x 96 mm front. The 5.7-inch models provide VGA resolution and a larger viewing area.

Q: Can a similar T30 model be used as a direct replacement?

A: Not automatically. Match the full model number, screen format, cutout dimensions, front design, hardware revision and software image before replacement.
