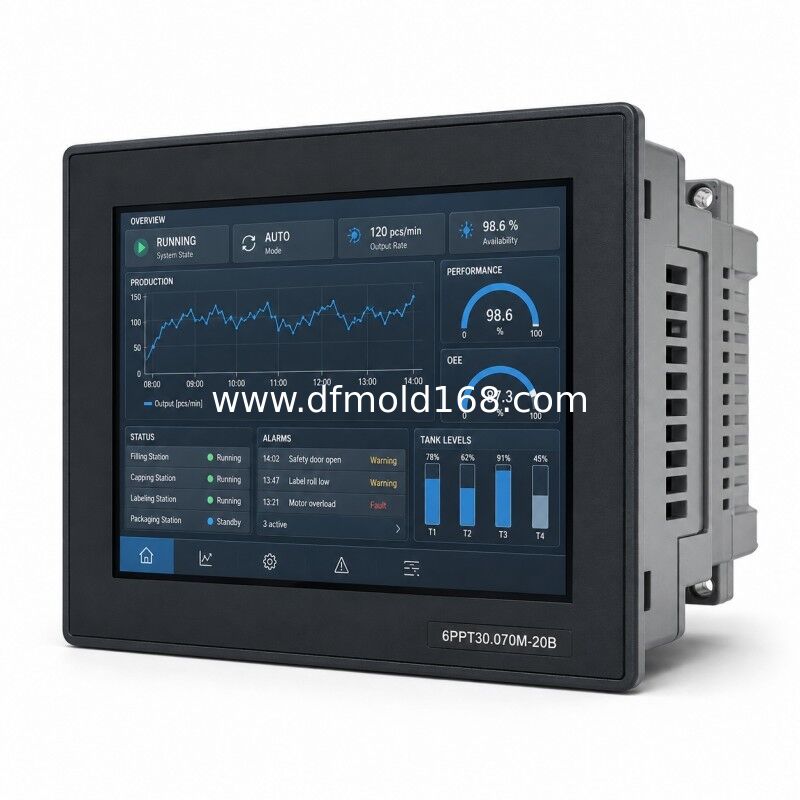

6PPT30.070M-20B Power Panel T30 7 Inch Portrait HMI

The B&R 6PPT30.070M-20B is a 7.0-inch Power Panel T30 operator terminal with a portrait WVGA 480 x 800 pixels display and analog resistive touch input. It combines a 600 MHz ARM Cortex-A8 processor, 256 MB DRAM and 512 MB onboard flash with two Fast Ethernet ports and two USB 2.0 interfaces.

The 6PPT30.070M-20B provides the largest portrait display in this T30 selection. Its 480 x 800 layout offers more vertical information space than the 5.7-inch portrait model, while the anthracite front differentiates it from the aluminum-white W version.

Key Features

· 7.0-inch WVGA 480 x 800 pixels TFT color display

· Portrait panel format for larger vertical visualization

· Analog resistive touch screen suitable for gloved operation

· Dual 10/100 Mbit/s Ethernet ports with integrated switch

· Integrated VNC client, web browser and service page

· IP65 front protection and wide -20 to 60°C operating range

Typical Applications

· Tall operator consoles

· Alarm and event displays

· Production recipe selection

· Material handling systems

· Vertical replacement panels

Compatibility Note

This T30 model is an HMI terminal, not a standalone PLC. Confirm the exact order number, panel cutout, screen orientation, hardware revision and installed image before replacement.

FAQ

Q: Is this Power Panel a standalone PLC?

A: No. It is a terminal-design HMI used as a VNC or web client. Machine control must be provided by a compatible controller.

Q: What touch technology does it use?

A: It uses an analog resistive touch screen, which is suitable for industrial operation and can generally be used with gloves or a stylus.

Q: How many Ethernet ports are available?

A: Two 10/100 Mbit/s Ethernet ports are provided through an integrated switch for convenient line wiring.

Q: Does it support both VNC and web visualization?

A: Yes. The terminal includes a VNC client, an embedded web browser and an integrated service page.

Q: How does it differ from 6PPT30.0702-20B?

A: The 070M model is portrait with 480 x 800 resolution and a 140 x 197 mm front. The 0702 model is landscape with 800 x 480 resolution and a 197 x 140 mm front.

Q: Can a similar T30 model be used as a direct replacement?

A: Not automatically. Match the full model number, screen format, cutout dimensions, front design, hardware revision and software image before replacement.
