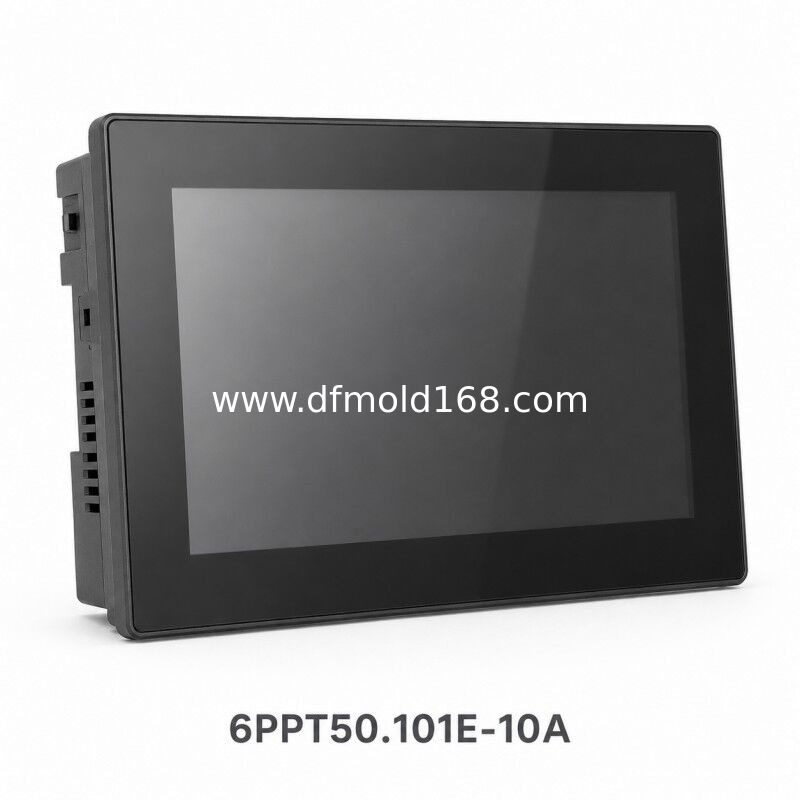

6PPT50.101E-10A Power Panel T50 10.1 Inch Multi Touch HMI

The B&R 6PPT50.101E-10A is a 10.1-inch Power Panel T50 HMI terminal built around an 800 MHz dual-core ARM Cortex-A9 platform with 1 GB DRAM and 512 MB onboard flash. Its WXGA 1280 x 800 pixels projected-capacitive display supports multi-touch operation through a chemically hardened anti-glare glass front.

Its 1280 x 800 WXGA panel offers substantially more workspace than the 5-inch and 7-inch WVGA versions, making detailed trends, diagnostics and multi-pane layouts easier to read. The -10A network configuration uses one Gigabit Ethernet port.

Key Features

· 10.1-inch WXGA 1280 x 800 pixels multi-touch display

· Chemically hardened 6H anti-glare glass front

· Dual-core 800 MHz ARM Cortex-A9 processor

· Single Gigabit Ethernet port

· Two USB 2.0 ports with 0.5 A capacity each

· VNC client, embedded browser and mapp View support

Typical Applications

· Detailed machine visualization

· Trend and diagnostic screens

· Packaging and processing lines

· Operator recipe management

· General-purpose industrial HMI stations

Compatibility Note

This T50 model is a visualization terminal, not an Automation Runtime machine controller. Verify the full order number, Ethernet variant, panel cutout, hardware revision and PPT50 image when replacing an installed unit.

FAQ

Q: Does this unit run the machine control program?

A: No. The T50 is a terminal-design HMI. It displays visualization content supplied through VNC, web technology or a compatible HMI application.

Q: Does the screen support multi-touch gestures?

A: Yes. It uses projected-capacitive multi-touch technology behind a chemically hardened glass surface.

Q: How many Ethernet ports does this model have?

A: One Gigabit Ethernet port is fitted. For an integrated two-port switch, select the corresponding -16 variant after compatibility checks.

Q: What does the A suffix indicate on this selected variant?

A: The selected A variant uses an anti-glare glass front. Closely related B variants use a standard glass front.

Q: What advantage does the 10.1-inch display provide?

A: The 1280 x 800 WXGA resolution provides more screen area for diagnostics, alarm lists, recipes and multi-pane visualization than WVGA models.

Q: Can another T50 size or Ethernet version replace it directly?

A: Not without engineering checks. Screen size, cutout, port count, hardware revision, image version and project configuration must all match the application.
