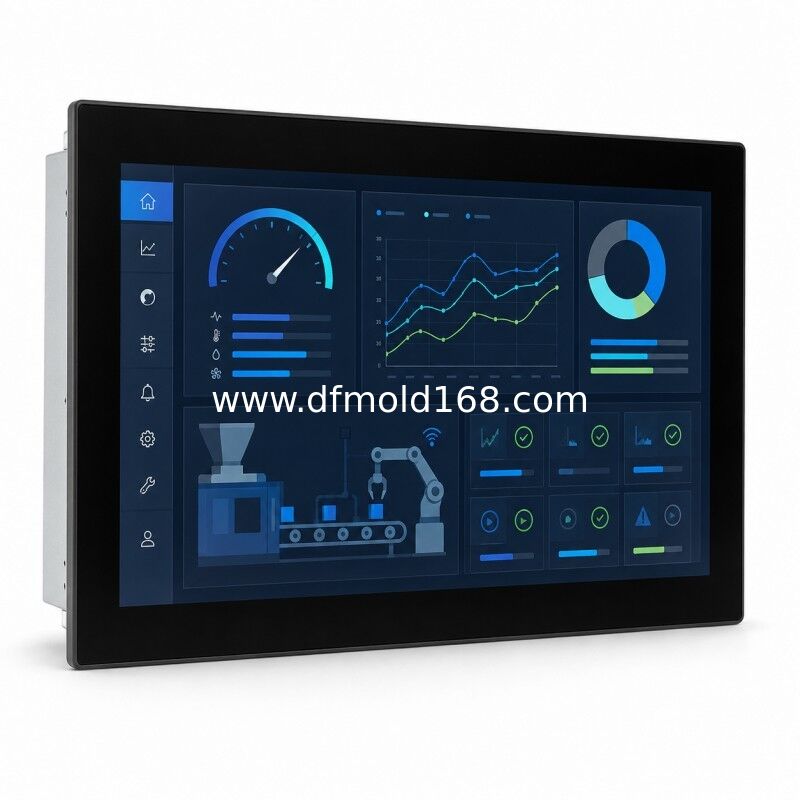

6PPT50.156B-10A Power Panel T50 15.6 Inch Multi Touch HMI

The B&R 6PPT50.156B-10A is a 15.6-inch Power Panel T50 HMI terminal built around an 800 MHz dual-core ARM Cortex-A9 platform with 1 GB DRAM and 512 MB onboard flash. Its HD 1366 x 768 pixels projected-capacitive display supports multi-touch operation through a chemically hardened anti-glare glass front.

The 15.6-inch 1366 x 768 display is the largest T50 screen in this batch and is suited to wide process overviews and dense dashboards. The selected -10A interface version uses a single Gigabit Ethernet port rather than the dual-port switch of -16 variants.

Key Features

· 15.6-inch HD 1366 x 768 pixels multi-touch display

· Chemically hardened 6H anti-glare glass front

· Dual-core 800 MHz ARM Cortex-A9 processor

· Single Gigabit Ethernet port

· Two USB 2.0 ports with 0.5 A capacity each

· VNC client, embedded browser and mapp View support

Typical Applications

· Wide production dashboards

· Process overview stations

· Large packaging and converting machines

· Central operator consoles

· Visualization with detailed trends and alarms

Compatibility Note

This T50 model is a visualization terminal, not an Automation Runtime machine controller. Verify the full order number, Ethernet variant, panel cutout, hardware revision and PPT50 image when replacing an installed unit.

FAQ

Q: Does this unit run the machine control program?

A: No. The T50 is a terminal-design HMI. It displays visualization content supplied through VNC, web technology or a compatible HMI application.

Q: Does the screen support multi-touch gestures?

A: Yes. It uses projected-capacitive multi-touch technology behind a chemically hardened glass surface.

Q: How many Ethernet ports does this model have?

A: One shielded Gigabit Ethernet port is fitted on this -10A variant.

Q: What does the A suffix indicate on this selected variant?

A: The selected A variant uses an anti-glare glass front. Closely related B variants use a standard glass front.

Q: Is this the largest T50 size in the selected batch?

A: Yes. Its 15.6-inch HD display provides the largest viewing area among these five T50 models and requires the largest panel cutout.

Q: Can another T50 size or Ethernet version replace it directly?

A: Not without engineering checks. Screen size, cutout, port count, hardware revision, image version and project configuration must all match the application.
