Highlight:
Product Family: |
Power Panel C30 |
Device Type: |
Panel Controller With Integrated HMI |
Display Size: |
7.0 Inch TFT Color Display |
Resolution: |
WVGA 800 X 480 Pixels |
Touch Technology: |
Analog Resistive Touch Screen |
Processor: |
ARM Cortex-A8, 1 GHz |
Memory: |
256 MB DRAM, 512 MB Flash And 8 KB FRAM |
Shortest Task Class Cycle: |
1 Ms |
Ethernet Interface: |
1 X 10/100 Mbit/s |
USB Interfaces: |
2 X USB 2.0 Type A |
Fieldbus Interfaces: |
1 X CAN Bus And 1 X RS232 |
Automation Runtime: |
AR 4.09 Bootloader Platform |
ACOPOS Support: |
No |
Safety Support: |
No |
Supply Voltage: |
24 VDC -15% / +20% |
Power Consumption: |
Typical 6 W, Maximum 12.5 W |
Front Protection: |
IP65 |
Rear Protection: |
IP20 |
Operating Temperature: |
-20 To 60°C |
Dimensions: |
197 X 140 X 47.8 Mm |
Weight: |
0.6 Kg |
Included Terminal Blocks: |
0TB6102.2110-01 And 0TB5106.2110-01 |

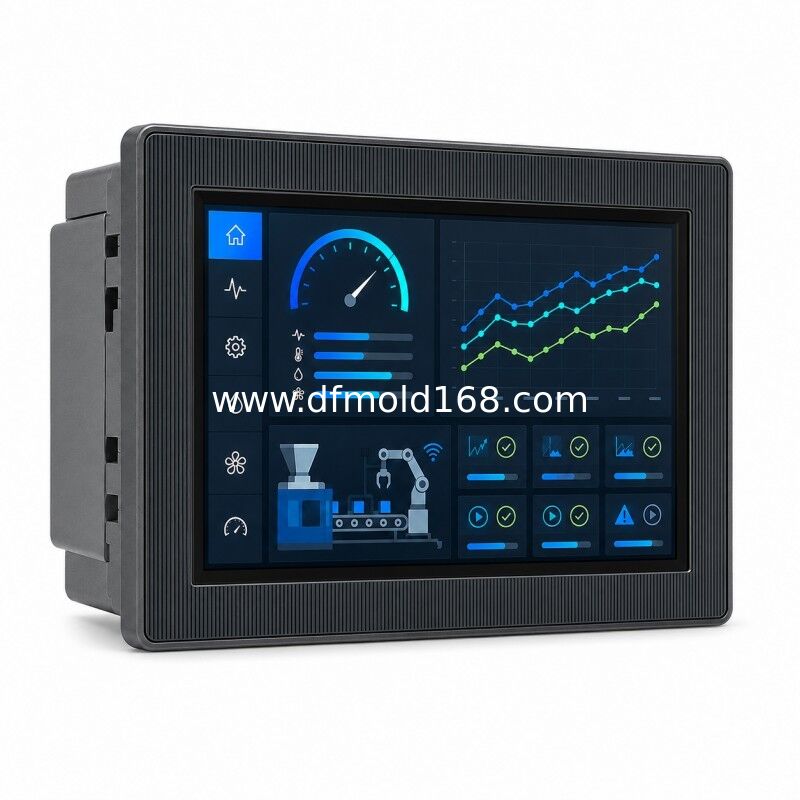

4PPC30.0702-22B Power Panel C30 7 Inch CAN RS232 Controller
The B&R 4PPC30.0702-22B combines a 7.0-inch resistive-touch HMI with an embedded Power Panel C30 controller. Its 1 GHz ARM Cortex-A8 processor, 256 MB DRAM, 512 MB flash and 8 kB FRAM support Automation Runtime applications with a shortest task class cycle of 1 ms.
The -22B variant is defined by its CAN plus RS232 interface combination. It is a better fit than the dual-CAN -21 version when a legacy serial device, barcode reader or service instrument must be connected alongside a CAN network.
Key Features
· Integrated controller and 7.0-inch HMI in one panel
· WVGA 800 x 480 pixels analog resistive touch display
· 1 GHz ARM Cortex-A8 controller with 8 kB FRAM
· Combined CAN bus and RS232 serial interfaces
· One Fast Ethernet port and two USB 2.0 ports
· IP65 front protection with -20 to 60°C operation
Typical Applications
· Machines with CAN and serial devices
· Packaging equipment
· Legacy RS232 integration
· Material handling systems
· Integrated control and visualization
Compatibility Note
The C30 is a controller-design Power Panel. It does not provide ACOPOS or integrated safety support. Check the Automation Runtime project, fieldbus wiring, terminal blocks, hardware revision and panel cutout before replacement.
FAQ
Q: Is this model only an HMI terminal?
A: No. The C30 combines an HMI display with an Automation Runtime controller in the same panel.
Q: Which fieldbus interfaces are fitted?
A: One CAN bus and one RS232 interface are provided on the six-pin multipoint connection. The RS232 rate is up to 115.2 kbit/s.
Q: Does this C30 support ACOPOS motion control?
A: No. The official specification lists ACOPOS support as not available for this C30 model.
Q: Can it be used as a safety controller?
A: No. Integrated safety support is not provided. A separately engineered safety system is required where applicable.
Q: What retentive memory is available?
A: The controller provides 8 kB FRAM for remanent variables with retention greater than 10 years.
Q: What must be checked before replacing an installed panel?
A: Match the complete model number, fieldbus interface set, terminal blocks, panel cutout, Automation Runtime version, hardware revision and application backup.
