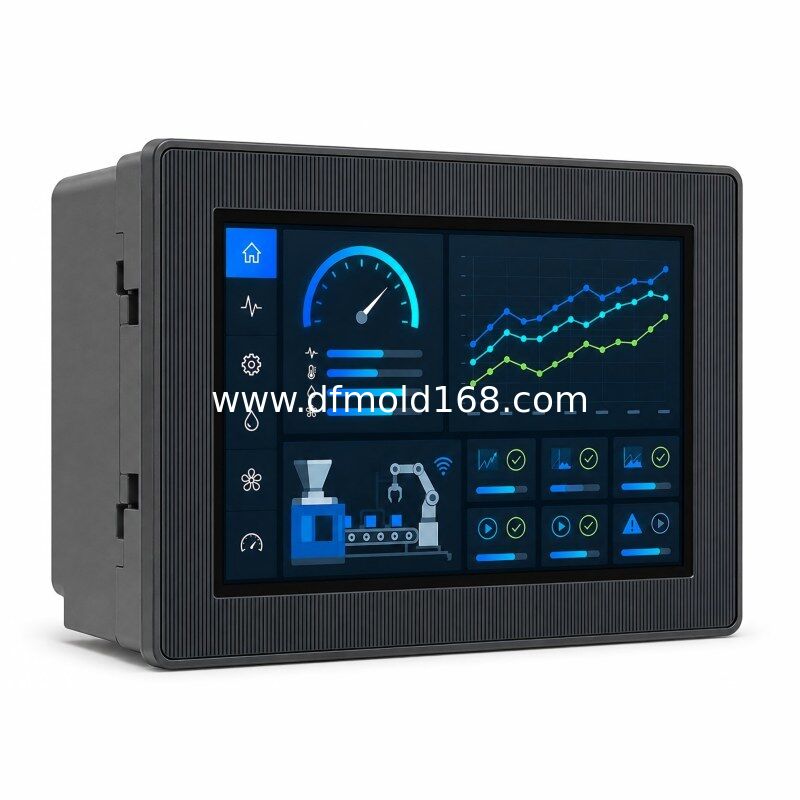

4PPC70.0702-20B Power Panel C70 7 Inch POWERLINK Controller

The B&R 4PPC70.0702-20B combines a 7.0-inch HMI with a Power Panel C70 machine controller. The fanless Atom E620T platform provides 256 MB DRAM, 2 GB eMMC flash, 32 kB FRAM and a 0.4 ms shortest task class cycle for integrated control and visualization.

The 4PPC70.0702-20B provides a larger 7-inch WVGA display than the 5.7-inch base model while retaining the same core network architecture. The anthracite B front is the visual counterpart to aluminum-white W versions.

Key Features

· Integrated controller and 7.0-inch HMI

· WVGA 800 x 480 pixels analog resistive touch display

· POWERLINK V2 interface with managing or controlled node capability

· X2X Link master for distributed I/O

· Base interface version with POWERLINK and X2X Link

· Fanless design with ACOPOS and Visual Components support

Typical Applications

· POWERLINK machine control

· X2X Link remote I/O systems

· Packaging and converting equipment

· Motion-enabled production cells

· Integrated operator and controller stations

Compatibility Note

The C70 is a controller-design Power Panel. Confirm the full model number, interface variant, terminal blocks, Automation Studio and Runtime versions, hardware revision, project backup and current plant cybersecurity requirements before reuse or replacement.

FAQ

Q: Is this model a combined controller and HMI?

A: Yes. The C70 integrates the visualization panel and Automation Runtime machine controller in one device.

Q: Can it operate on a POWERLINK network?

A: Yes. The POWERLINK V2 interface can be configured as a managing or controlled node, depending on the application.

Q: Does it provide an X2X Link master?

A: Yes. A dedicated X2X Link master interface is included for connecting compatible distributed I/O.

Q: Does this exact variant include extra serial or CAN interfaces?

A: No optional CAN or serial interface is fitted. The panel includes POWERLINK, standard Ethernet, X2X Link and two USB ports.

Q: Does it support ACOPOS motion applications?

A: Yes. ACOPOS support is listed for the C70 platform, subject to the Automation Runtime project and system engineering.

Q: Can another C70 interface variant be substituted directly?

A: Not automatically. Match the screen size, front design, CAN or serial interfaces, terminal blocks, hardware revision, Runtime version and application backup.
