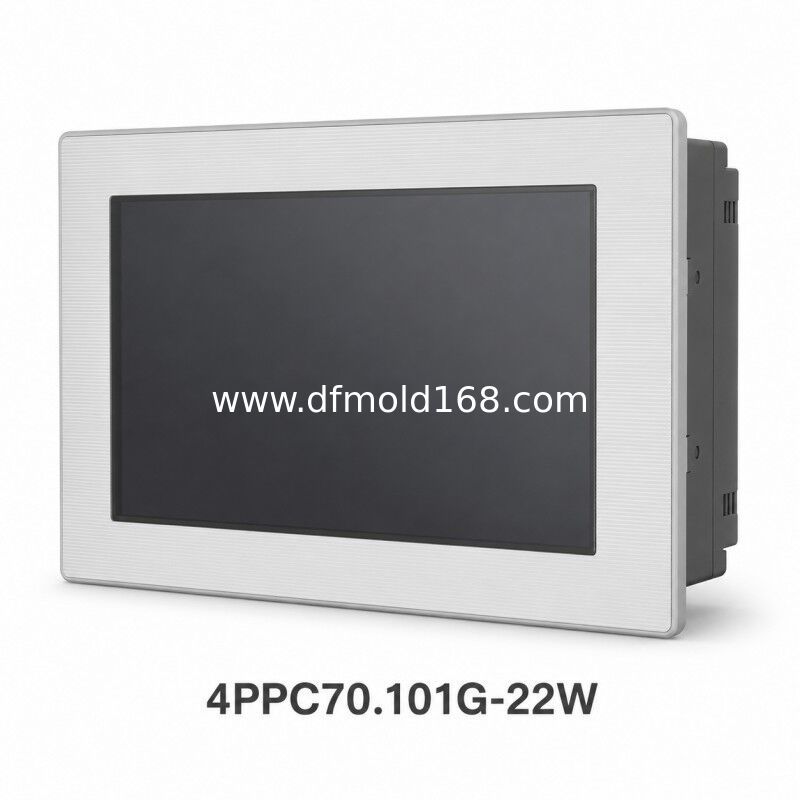

4PPC70.101G-22W Power Panel C70 10.1 Inch CAN RS232 Controller

The B&R 4PPC70.101G-22W combines a 10.1-inch HMI with a Power Panel C70 machine controller. The fanless Atom E620T platform provides 256 MB DRAM, 2 GB eMMC flash, 32 kB FRAM and a 0.4 ms shortest task class cycle for integrated control and visualization.

This is the most interface-rich C70 model in the selected batch. The -22W configuration adds CAN and RS232 to the standard POWERLINK, Ethernet and X2X Link architecture, while the 10.1-inch 1024 x 600 screen provides the largest C70 viewing area listed here.

Key Features

· Integrated controller and 10.1-inch HMI

· WSVGA 1024 x 600 pixels analog resistive touch display

· POWERLINK V2 interface with managing or controlled node capability

· X2X Link master for distributed I/O

· Additional CAN and RS232 communication interfaces

· Fanless design with ACOPOS and Visual Components support

Typical Applications

· Multi-network packaging machines

· CAN and serial device integration

· Large motion-control HMIs

· POWERLINK production systems

· Retrofits requiring RS232 peripherals

Compatibility Note

The C70 is a controller-design Power Panel. Confirm the full model number, interface variant, terminal blocks, Automation Studio and Runtime versions, hardware revision, project backup and current plant cybersecurity requirements before reuse or replacement.

FAQ

Q: Is this model a combined controller and HMI?

A: Yes. The C70 integrates the visualization panel and Automation Runtime machine controller in one device.

Q: Can it operate on a POWERLINK network?

A: Yes. The POWERLINK V2 interface can be configured as a managing or controlled node, depending on the application.

Q: Does it provide an X2X Link master?

A: Yes. A dedicated X2X Link master interface is included for connecting compatible distributed I/O.

Q: Does this exact variant include extra serial or CAN interfaces?

A: Yes. This -22W variant adds one CAN bus and one RS232 interface to the standard POWERLINK, Ethernet, X2X Link and USB connections.

Q: Does it support ACOPOS motion applications?

A: Yes. ACOPOS support is listed for the C70 platform, subject to the Automation Runtime project and system engineering.

Q: Can another C70 interface variant be substituted directly?

A: Not automatically. Match the screen size, front design, CAN or serial interfaces, terminal blocks, hardware revision, Runtime version and application backup.
