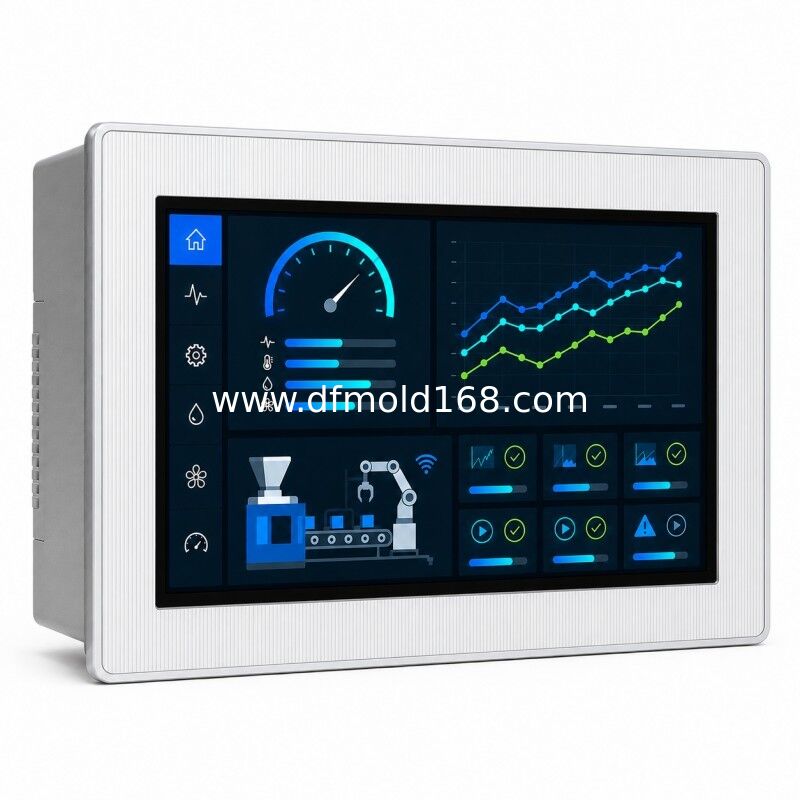

4PPC70.101G-20W Power Panel C70 10.1 Inch Panel Controller

The B&R 4PPC70.101G-20W combines a 10.1-inch HMI with a Power Panel C70 machine controller. The fanless Atom E620T platform provides 256 MB DRAM, 2 GB eMMC flash, 32 kB FRAM and a 0.4 ms shortest task class cycle for integrated control and visualization.

The -20W code denotes the base C70 communication set and the aluminum white pinstripe front. It provides POWERLINK, standard Ethernet and X2X Link without the extra CAN or serial interfaces found on -21, -22 and -23 variants.

Key Features

· Integrated controller and 10.1-inch HMI

· WSVGA 1024 x 600 pixels analog resistive touch display

· POWERLINK V2 interface with managing or controlled node capability

· X2X Link master for distributed I/O

· Base interface set without added CAN or serial ports

· Fanless design with ACOPOS and Visual Components support

Typical Applications

· POWERLINK machine control

· X2X Link distributed I/O systems

· Motion-enabled packaging equipment

· White-front operator consoles

· Integrated visualization and control retrofits

Compatibility Note

The C70 is a controller-design Power Panel. Confirm the full model number, interface variant, terminal blocks, Automation Studio and Runtime versions, hardware revision, project backup and current plant cybersecurity requirements before reuse or replacement.

FAQ

Q: Is this model a combined controller and HMI?

A: Yes. The C70 integrates the visualization panel and Automation Runtime machine controller in one device.

Q: Can it operate on a POWERLINK network?

A: Yes. The POWERLINK V2 interface can be configured as a managing or controlled node, depending on the application.

Q: Does it provide an X2X Link master?

A: Yes. A dedicated X2X Link master interface is included for connecting compatible distributed I/O.

Q: Does this exact variant include extra serial or CAN interfaces?

A: No additional CAN, RS232 or RS485 interface is fitted. The panel includes POWERLINK, standard Ethernet, X2X Link and two USB ports.

Q: Does it support ACOPOS motion applications?

A: Yes. ACOPOS support is listed for the C70 platform, subject to the Automation Runtime project and system engineering.

Q: Can another C70 interface variant be substituted directly?

A: Not automatically. Match the screen size, front design, CAN or serial interfaces, terminal blocks, hardware revision, Runtime version and application backup.
